Horizontal High Precision Slant Bed CNC Lathe Machine With 350mm Tailstock Travel

Horizontal High Precision Slant Bed CNC Lathe Machine With 350mm Tailstock Travel

High Precision slant bed cnc lathe machine

350mm slant bed cnc lathe machine

Horizontal turret cnc turning center

Place of Origin:

China

Brand Name:

ShangJie PM

Certification:

CE ISO certification

Model Number:

XT04DS-250/450

Document:

CNC Turning Center.pdf

Chat Now
Request A Quote

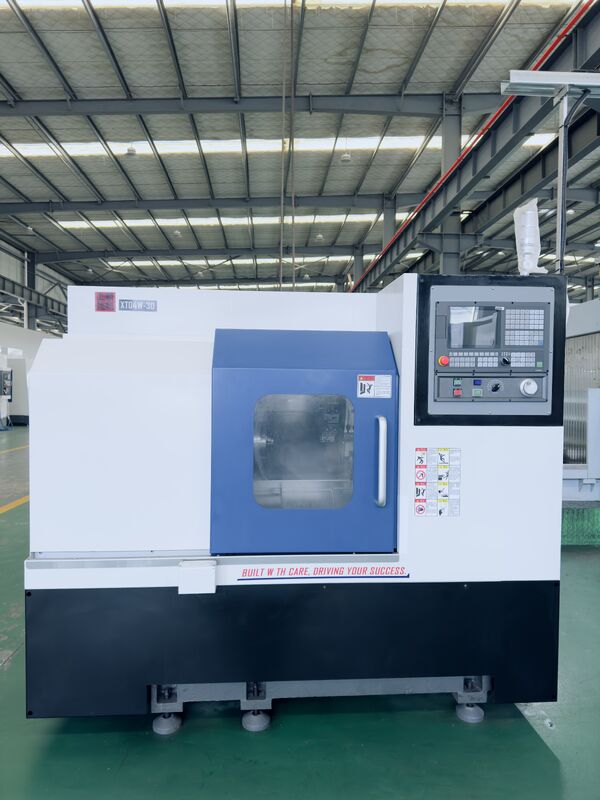

Horizontal High Precision Slant Bed CNC Lathe Machine With 350mm Tailstock Travel
Horizontal High Precision Slant Bed CNC Lathe Machine With 350mm Tailstock Travel Horizontal High Precision Slant Bed CNC Lathe Machine With 350mm Tailstock Travel Horizontal High Precision Slant Bed CNC Lathe Machine With 350mm Tailstock Travel Horizontal High Precision Slant Bed CNC Lathe Machine With 350mm Tailstock Travel Horizontal High Precision Slant Bed CNC Lathe Machine With 350mm Tailstock Travel
Product Details
Type:
Horizontal
Tailstock Travel:
350mm
Max Cutting Dia:
Φ300mm
Tool Presetter:
Standard
Structure:
Slant Bed Lathe
Tools Number:
8 Station Hydraulic Turret
Warranty:
12months
Weight:
7,500 Lbs
Spindle Power:
7.5/11KW
Control:
Haas CNC
After Warranty Service:
Video Technical Support, Online Support
Tool Post Stations:
4
Spindle Speed Step:
Stepless
Turret Capacity:
12 Stations
Condition:
New
Highlight:

High Precision slant bed cnc lathe machine

,

350mm slant bed cnc lathe machine

,

Horizontal turret cnc turning center

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time
45-60 days
Payment Terms
T/T,L/C,,Western Union
Supply Ability
45-60 days
RELATED PRODUCTS
Good price PT36 2 Axes CNC Turning Center 5000kg Weight 500mm Z Axis For Precision Machining online Video

PT36 2 Axes CNC Turning Center 5000kg Weight 500mm Z Axis For Precision Machining

Chat Now
Good price PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder online

PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder

Chat Now
Good price Light Duty CNC Turning Center With 380V 220V 4 Milling Heads For Multi Purpose Metal Working online Video

Light Duty CNC Turning Center With 380V 220V 4 Milling Heads For Multi Purpose Metal Working

Chat Now
Good price Horizontal High Precision Slant Bed CNC Lathe Machine With 350mm Tailstock Travel online Video

Horizontal High Precision Slant Bed CNC Lathe Machine With 350mm Tailstock Travel

Chat Now
CONTACT US
86--15221502418
bear02@shanjmc.com
Chat Now
Product Description
XT04DS-250/450
XT04DS-250/450 High-Precision CNC Turning Center with 350mm Tailstock Travel Φ300mm Max Cutting Dia and 8 Station Hydraulic Turret
ShangJie PM's XT Series offers high-rigidity CNC lathes with slant-bed and servo turret configurations, tailored for precision turning in demanding industrial environments. These machines support multi-tool operation with fast indexing, making them ideal for machining complex shafts, valves, and mechanical fittings.
  • Slant-bed structure with servo turret for high-efficiency turning
  • Rigid body and precise feed system for stable long-cycle operation
  • Built for complex, high-volume part production across industries
XT/DS Series - Servo tool turret, dual spindles (Optional servo power tool turret)
Machine Characteristics
The XT series is a type of machine tool specially designed for heavy cutting of disc-shaped and short shaft parts. It features an integral bed with a widened, reinforced and low center of gravity design to reduce vibrations during heavy cutting. The 45° inclined saddle layout effectively resists forces in both horizontal and vertical directions, eliminates backlash in the lead screw, and ensures better geometric symmetry of the cutting tool during processing.
Specifications
Machine Type XT04DS-250 XT04DS-450
Max. swing diameter 500mm 500mm
Max. machining diameter 220mm 220mm
Max. machining Length 250mm 450mm
Spindle nose A2-4 A2-4
Spindle motor power 4.0/5.5 KW 4.0/5.5 KW
Spindle bore 38mm 38mm
Max. spindle speed 6000r/min 6000r/min
Specification of the sub-spindle A2-4 A2-4
X axis 185mm 185mm
Z axis 380mm 580mm
X axis rapid feed speed 25m/min 25m/min
Z axis rapid feed speed 25m/min 25m/min
X axis Max. torque of motor 25.2N.m 25.2N.m
Z axis Max. torque of motor 25.2N.m 25.2N.m

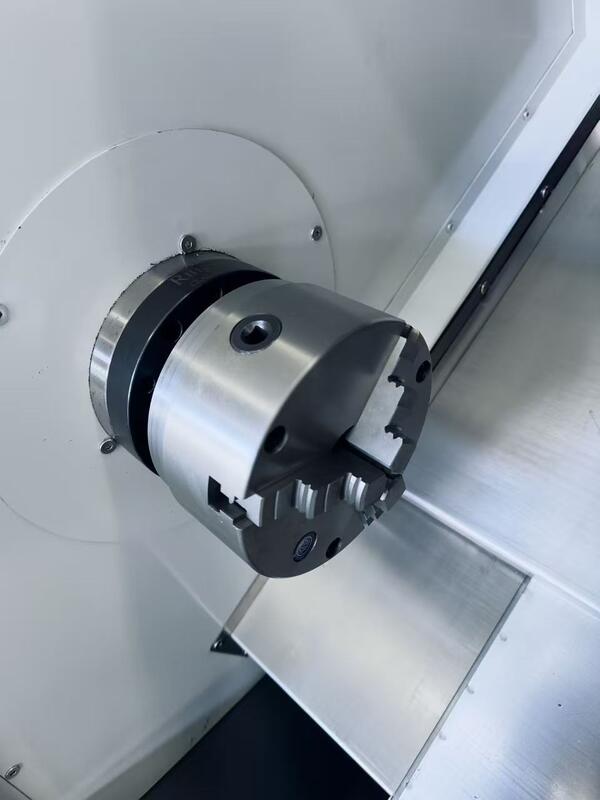

Chuck Size 6" 6"

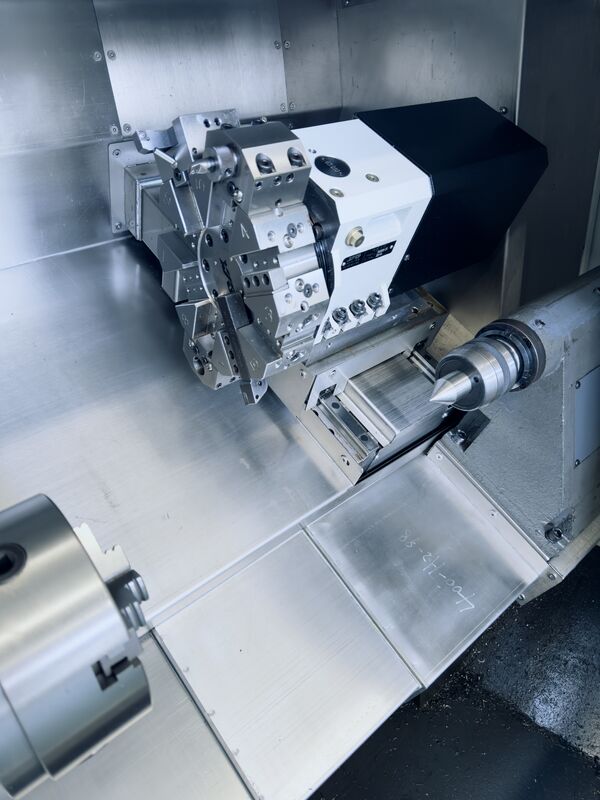

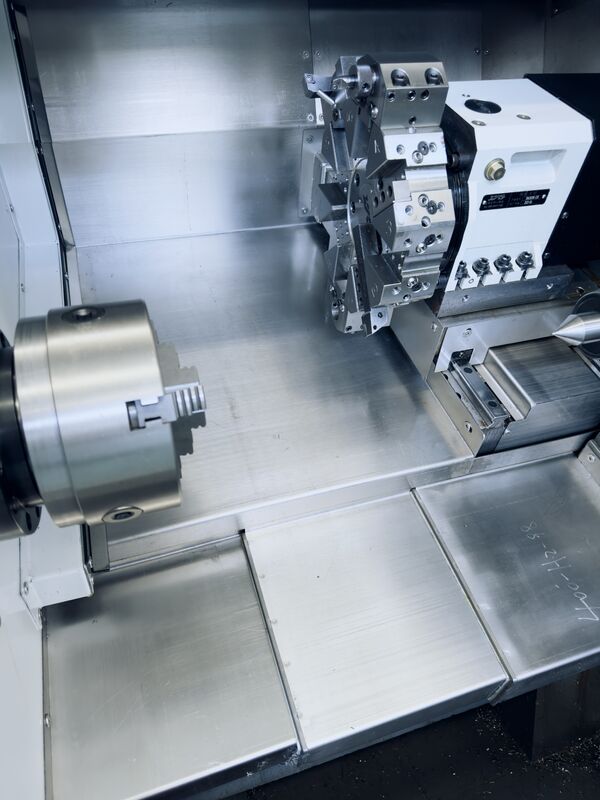

Servo Tool Turret 8 8
OD tool size 20x20mm 20x20mm
Tailstock travel MT-4# 250mm MT-4# 250mm
Machine size (L x W x H) 1650x1360x1600mm 1650x1360x1600mm
Standard weight 2200KG 2600KG
Expandable Functions
Turn-Mill
Horizontal High Precision Slant Bed CNC Lathe Machine With 350mm Tailstock Travel 0
The entire XT series can be equipped with a servo power tool turret to achieve the processing capability of turning and milling compound functions.
Programmable Tailstock
Horizontal High Precision Slant Bed CNC Lathe Machine With 350mm Tailstock Travel 1
The machine can be configured with a servo turret or customized with multiple power heads to deliver high-end turning-milling capabilities. This versatile solution meets complex machining demands while minimizing capital expenditure.
Frequently Asked Questions
Q: Manufacturer or trading company? Where is the company located?
A: We are a professional manufacturer of CNC lathes, located in Shiyan City, Hubei Province.
Q: How long have you been involved in this market?
A: We have been engaged in the auto parts industry for 10 years.
Q: Can you provide a product catalog?
A: Contact our business manager, we will send the product catalog you need to your mailbox.
Q: About the terms and conditions of payment.
A: When you quote, we will confirm with you the trading method (FOB, CIF, CNF, etc.). For mass production we typically require 30% advance payment with balance due upon bill of lading. Payment methods are primarily T/T, though L/C is also acceptable.
Q: Product after-sales service scope and service period?
A: We offer a one-year warranty and 24-hour lifetime technical support.
