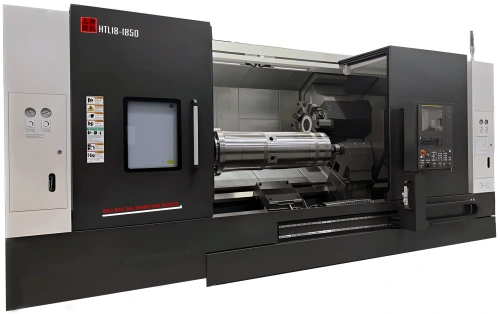

Large Scale CNC Horizontal Turning Center With 15 18.5KW Spindle Motor Power 6000r/Min

Large Scale CNC Horizontal Turning Center With 15 18.5KW Spindle Motor Power 6000r/Min

Large cnc horizontal turning center

18.5KW cnc horizontal turning center

6000r/Min large cnc turning

Place of Origin:

China

Brand Name:

ShangJie PM

Certification:

CE ISO certification

Model Number:

HTL110ZY-1050/1250/1550/1850/2050

Chat Now
Request A Quote
Large Scale CNC Horizontal Turning Center With 15 18.5KW Spindle Motor Power 6000r/Min
Product Details
Key Word:
Turning Center
Core Components:
Engine
Z Travel:
410mm
X Axis Travel:
400mm
Main Motor Power:
15 Kw
Maxswing Over Bed:
Φ700mm
After Warranty Service:
Video Technical Support, Online Support
Tool Holder Size:
20x20mm
Type:
Horizontal
Machine Type:
Slant Bed CNC Lathe
Tailstock Taper:
MT4
Spindle Bore Diameter:
Φ100 /Φ130
Cnc Control System:
GSK,FANUC,SIEMENS
Structure:
Slant Bed Lathe
Voltage:
220V/380V415V 50/60Hz
Highlight:

Large cnc horizontal turning center

,

18.5KW cnc horizontal turning center

,

6000r/Min large cnc turning

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time
45-60 days
Payment Terms
T/T,L/C,,Western Union
Supply Ability
45-60 days
RELATED PRODUCTS
Good price ST32 CNC Turning Center With 15 18.5KW Spindle Power 8 Tool Post Stations online Video

ST32 CNC Turning Center With 15 18.5KW Spindle Power 8 Tool Post Stations

Chat Now
Good price High Precision CNC Turning Center With 140mm X Axis Travel 50-3000r/Min 3 Axes online Video

High Precision CNC Turning Center With 140mm X Axis Travel 50-3000r/Min 3 Axes

Chat Now
Good price Slant Bed CNC Horizontal Lathe 6000r/Min X Axis Z Axis 8 6 4 Tool Post Stations online Video

Slant Bed CNC Horizontal Lathe 6000r/Min X Axis Z Axis 8 6 4 Tool Post Stations

Chat Now
Good price XT05-360 High-Precision CNC Lathe With 45° Inclined Saddle And 8/12 Tool Positions For Heavy-Duty Industrial Applications online Video

XT05-360 High-Precision CNC Lathe With 45° Inclined Saddle And 8/12 Tool Positions For Heavy-Duty Industrial Applications

Chat Now
CONTACT US
86--15221502418
bear02@shanjmc.com
Chat Now
Product Description
HTL-Series High-Precision Large-Scale CNC Turning Center
The HTL Series from ShangJie PM is engineered for long-shaft and extended-part turning applications. Featuring a heavy-duty slant-bed design and powerful spindle system, these CNC lathes offer exceptional rigidity, precision, and smooth chip evacuation during high-speed, long-cycle operations.
Key Features
  • Extended-bed CNC lathe for long-shaft turning
  • Heavy-duty structure with precision spindle control
  • Reliable for deep-hole and long component machining
HTL110ZY Series Specifications
Machine TypeHTL110ZY-1050HTL110ZY-1250HTL110ZY-1550HTL110ZY-1850HTL110ZY-2050
Max. swing diameter830mm830mm830mm830mm830mm
Max. machining diameter580mm580mm580mm580mm580mm
Max. machining Length1050mm1250mm1550mm1850mm2050mm
Spindle noseA2-11A2-11A2-11A2-11A2-11
Spindle motor power15/18.5 KW15/18.5 KW15/18.5 KW15/18.5 KW15/18.5 KW
Spindle bore127mm127mm127mm127mm127mm
Max. spindle speed6000r/min6000r/min6000r/min6000r/min6000r/min
Interpolation of ZY-axis travel±100mm±100mm±100mm±100mm±100mm
X axis360mm360mm360mm360mm360mm
Z axis1230mm1430mm1730mm2030mm2230mm
X axis rapid feed speed30m/min30m/min30m/min30m/min30m/min
Z axis rapid feed speed30m/min30m/min30m/min30m/min30m/min
Torque of motor45N.m45N.m45N.m45N.m45N.m
Z axis Max. torque of motor69N.m69N.m69N.m69N.m69N.m
Y axis Max. torque of motor45N.m45N.m45N.m45N.m45N.m
Chuck Size10/12"10/12"10/12"10/12"10/12"
Servo Tool Turret12/1612/1612/1612/1612/16
OD tool size25x25mm25x25mm25x25mm25x25mm25x25mm
Boring tool diameter￠50 mm￠50 mm￠50 mm￠50 mm￠50 mm
Tailstock travelMT-6# 500mmMT-6# 600mmMT-6# 600mmMT-6# 600mmMT-6# 600mm
Machine size (L x W x H)3350x1470x1850mm3600x1470x1850mm3850x1470x1850mm4150x1470x1850mm4500x1470x1850mm
Standard weight7500KG7900KG8500KG9000KG9500KG
Machine Characteristics
The HTL series is a large-scale CNC turning center, specially designed for large and long shaft products. It features an ultra-wide integral bed, a 45° inclined saddle, and large-sized roller linear guides and ￠50mm precision-grade ball screw. This provides sufficient machine rigidity, enabling it to handle various machining tasks and maintain bed accuracy for a long time.
By applying finite element analysis (FEM), the shape and position of the reinforcing ribs in the castings are optimized to achieve the best bed strength, making the bed structure more suitable for heavy cutting and extending the tool's service life.
Large Scale CNC Horizontal Turning Center With 15 18.5KW Spindle Motor Power 6000r/Min 0
Expandable Functions
Side-mounted Y-axis or Bridge-type Y-axis
Large Scale CNC Horizontal Turning Center With 15 18.5KW Spindle Motor Power 6000r/Min 1
Large-scale Servo Tool Turret
HTL series is equipped with a large servo tool turret for powerful cutting.
Large Scale CNC Horizontal Turning Center With 15 18.5KW Spindle Motor Power 6000r/Min 2
Full Protection Sheet Metal
The fully enclosed stainless steel inner protective sheet metal is rationally laid out and looks high-end and elegant.
Large Scale CNC Horizontal Turning Center With 15 18.5KW Spindle Motor Power 6000r/Min 3
Programmable Tailstock
HTL series features spindle-type hydraulic programmable tailstock with high load capacity, precise positioning, excellent stability, and convenient operation, ideal for machining large workpieces.
Large Scale CNC Horizontal Turning Center With 15 18.5KW Spindle Motor Power 6000r/Min 4
High-precision Self-centering Hydraulic Center Rest
Configurable high-precision self-centering hydraulic center rest, improving the stability of long shaft processing.
Large Scale CNC Horizontal Turning Center With 15 18.5KW Spindle Motor Power 6000r/Min 5
Frequently Asked Questions
Q: Manufacturer or trading company? Where is the company located?
A: We are a professional manufacturer of CNC lathes, located in Shiyan City, Hubei Province.
Q: How long have you been involved in this market?
A: We have been engaged in the auto parts industry for 10 years.
Q: Can you provide a product catalog?
A: Contact our business manager, we will send the product catalog you need to your mailbox.
Q: About the terms and conditions of payment.
A: When you quote, we will confirm with you the trading method (FOB, CIF, CNF, etc.). For mass production we typically require 30% advance payment with balance due upon bill of lading. Payment methods are primarily T/T, though L/C is also acceptable.
Q: Product after-sales service scope and service period?
A: We offer a one-year warranty and 24-hour lifetime technical support.
