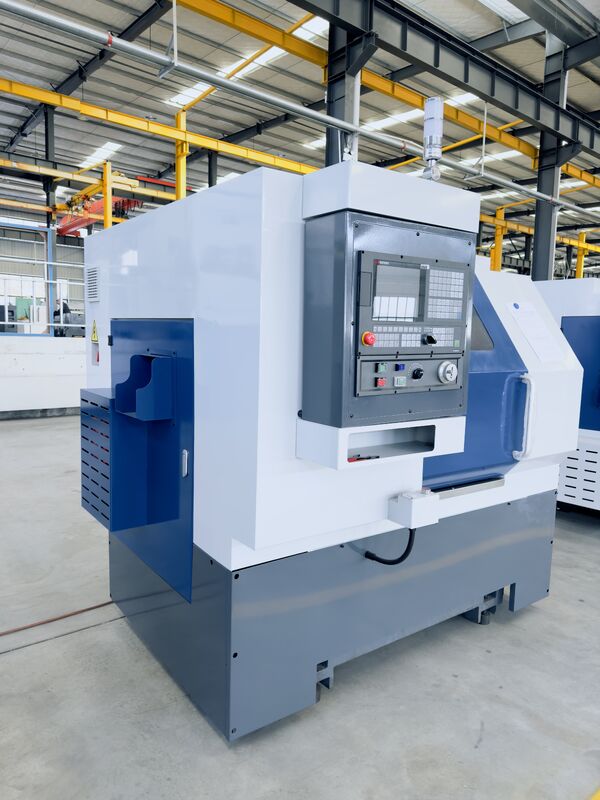

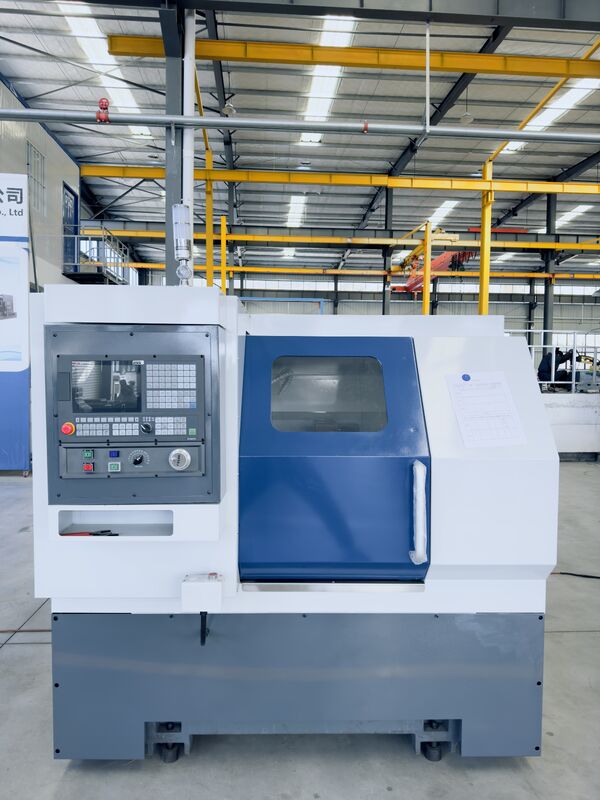

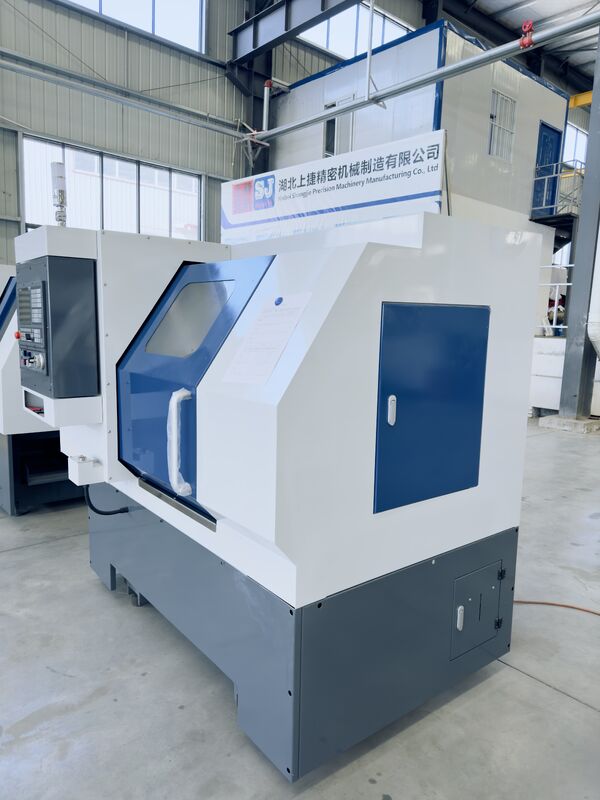

PT46 CNC Turning Center with 13 Months Warranty 12 Tools Turret Capacity and 50-3000 r/min Spindle Speed Range
The PT Series by ShangJie PM features compact, high-performance CNC lathes designed for precision turning in limited-space workshops or production lines. With gang-tool configurations and linear guideways, these machines provide excellent stability and fast tool change for high-efficiency small-part machining.
Key Features

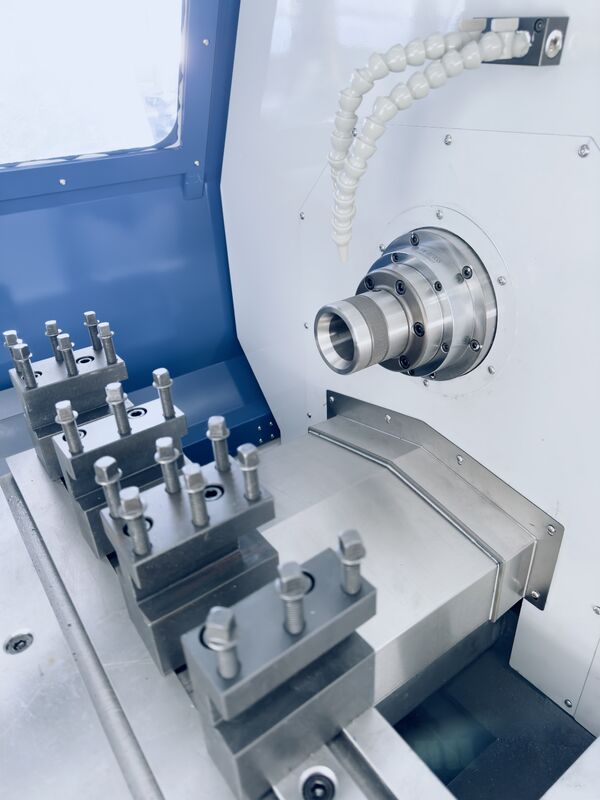

- Gang-tool layout reduces cycle time and tool switching delays
- High-rigidity structure supports precision and repeatability
- Ideal for small parts in high-volume production environments
- Space-saving footprint with automation adaptability
- Excellent for electronics, medical device, and automotive part production
Construction Details
Casting Material
Machine bed is constructed with HT300 grade cast iron as a monolithic casting, processed through vibration aging and double tempering treatments to eliminate residual stresses. This ensures exceptional dimensional stability and long-term durability.
Bed Structure
The machine tool's structural design features a monoblock bed with a low center of gravity. Finite Element Analysis (FEM) is employed to optimize the geometry and layout of reinforcing ribs in the cast components, maximizing bed rigidity for heavy-duty cutting operations.
Technical Specifications
| Machine Type |
PT46 |
| Max. Swing Diameter |
410 mm |
| Max. Machining Diameter on Saddle |
140 mm |
| Max. Bar Through Diameter |
38 mm |
| Spindle Nose |
A2-5 |
| Spindle Motor Power |
5.5 kW |
| Spindle Bore Diameter |
48 mm |
| Max. Spindle Speed |
4000 r/min |
| X Axis Travel |
360 mm |
| Z Axis Travel |
320 mm |
| X Axis Rapid Feed |
25 m/min |
| Z Axis Rapid Feed |
25 m/min |
| X Axis Max. Motor Torque |
18 N.m |
| Z Axis Max. Motor Torque |
18 N.m |
| Pneumatic Clamping (Standard) |
Rear-pull Spring Collet |
| Manual Chuck (Optional) |
8" |
| Hydraulic Clamping (Optional) |
8" Chuck |
| Turret Type |
4-station electric tool post |
| OD Tool Size |
20 x 20 mm |
| Machine Size (L x W x H) |
1680 x 1400 x 1600 mm |
| Standard Weight |
1850 kg |
Expandable Functions
Modular Power Head
Customized power head configurations can be added according to the customer's part processing requirements, enabling drilling, milling, tapping, and other feature machining operations.
Turn-Mill Capability
The machine can be configured with a servo turret or customized with multiple power heads to deliver high-end turning-milling capabilities. This versatile solution meets complex machining demands while minimizing capital expenditure.
Product Advantages
1. Exceptional Dimensional Stability
Built with HT300 grade cast iron, undergoing vibration aging and double tempering treatments for long-term durability and consistent machining accuracy in demanding industrial applications.
2. Precision and Performance
410mm max swing diameter, 5.5KW spindle motor, and rapid feed speeds of 25m/min ensure efficient operations with swift, precise movements.
3. Versatile Machining Capabilities
Modular power head configurations allow customization for drilling, milling, tapping, and other operations to meet diverse machining needs.
4. Operational Reliability
Pneumatic and hydraulic clamping systems with 4-station electric tool post ensure secure workpiece handling and consistent machining accuracy.
5. Scalable Design
Configurable with servo turret or multiple power heads to deliver high-end turning-milling capabilities that adapt to future production needs.
About Shanjmc
We are dedicated to advancing industrial machining standards through precision engineering and innovative design. Our PT46 CNC Turning Center exemplifies our commitment to quality, featuring robust construction that ensures exceptional dimensional stability and long-term durability.
Frequently Asked Questions
How can we guarantee quality?
Through meticulous engineering and rigorous testing processes. Our PT46 undergoes vibration aging and double tempering treatments to guarantee long-term durability and consistent machining accuracy.
What can you buy from us?
High-precision CNC Turning Centers including the PT46 model, with customizable solutions for diverse machining needs such as drilling, milling, and tapping.
Can I customize this product?
Yes, the PT46 offers modular power head configurations to customize the machine for various operations like drilling, milling, and tapping to meet specific part processing needs.
