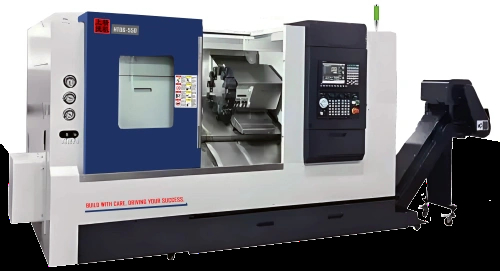

450mm Z Axis High Precision CNC Turning Center With 87mm Spindle Bore 25m/Min

450mm Z Axis High Precision CNC Turning Center With 87mm Spindle Bore 25m/Min
450mm Z Axis High Precision CNC Turning Center With 87mm Spindle Bore 25m/Min

Large Image :  450mm Z Axis High Precision CNC Turning Center With 87mm Spindle Bore 25m/Min

Product Details:
Place of Origin: China
Brand Name: ShangJie PM
Certification: CE ISO certification
Model Number: HT08DSZY-300/500/700
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time: 45-60 days
Payment Terms: T/T,L/C,,Western Union
Supply Ability: 45-60 days
Contact Now Chat Now

450mm Z Axis High Precision CNC Turning Center With 87mm Spindle Bore 25m/Min

Description
Function: Machining Metal Cnc Control System: GSK/FANUC/SIEMENS
Cnc Or Not: CNC Number Of Axes: 2
Voltage: 380V/220v Spindle Nose: A2-6
Z Axis Trave: 450mm Spindle Motor Power: 11kw
Keywords: Lathe Tool Holder Size: 20x20mm
Warranty: 1 Year Spindle Bore: 62mm
Max Turning Diameter: 400mm Coolant System: Oil-based
Structure: Slant Bed Lathe
Highlight:

450mm CNC Turning Center

,

25m/Min CNC Turning Center

,

87mm multi axis turning center

HT08DSZY-300/500/700
HT08DSZY-300/500/700 High-Precision CNC Turning Center with 87mm Spindle Bore and 25m/min Rapid Feed Speed
ShangJie PM's HT Series CNC lathes feature high-rigidity slant-bed structures combined with powerful spindles and servo turrets. Designed for heavy-duty cutting and continuous batch production, the HT Series ensures stability and precision across complex turning tasks. These machines are ideal for processing flanges, shafts, connectors, and other demanding metal components in industries like energy equipment, machinery parts, and transportation hardware.
  • Heavy-duty slant-bed lathe design with servo turret
  • Supports powerful spindle output and stable cutting performance
  • Designed for industrial-grade batch production and tough materials
HT/DSZY Series — Y-axis tool turret, dual spindles
ZY series models use a motor-directly-driven gantry Y-axis tool turret, ensuring Y-axis positioning accuracy, milling rigidity, and long-term machine accuracy.
450mm Z Axis High Precision CNC Turning Center With 87mm Spindle Bore 25m/Min 0 450mm Z Axis High Precision CNC Turning Center With 87mm Spindle Bore 25m/Min 1
Specifications
Machine Type HT08DSZY-300 HT08DSZY-500 HT08DSZY-700
Max. swing diameter 600mm 600mm 600mm
Max. machining diameter 360mm 360mm 360mm
Max. machining Length 300mm 500mm 700mm
Spindle nose A2-8 A2-8 A2-8
Spindle motor power 11/15 KW 11/15 KW 11/15 KW
Spindle bore 87mm 87mm 87mm
Max. spindle speed 6000r/min 6000r/min 6000r/min
Specification of the sub-spindle A2-5 A2-5 A2-5
Interpolation of ZY-axis travel ±55mm ±55mm ±55mm
X axis 260mm 260mm 260mm
Z axis 450mm 650mm 850mm
X axis rapid feed speed 25m/min 25m/min 25m/min
Z axis rapid feed speed 25m/min 25m/min 25m/min
X axis Max. torque of motor 34.5N.m 34.5N.m 34.5N.m
Z axis Max. torque of motor 34.5N.m 34.5N.m 34.5N.m
Y axis Max. torque of motor 34.5N.m 34.5N.m 34.5N.m
Chuck Size 10" 10" 10"
Servo Tool Turret 12 12 12
OD tool size 25x25mm 25x25mm 25x25mm
Machine size (L x W x H) 2350x1470x1850mm 2600x1470x1850mm 2800x1470x1850mm
Standard weight 3800KG 4700KG 5700KG
Expandable Functions
Double-spindle turning and milling compound machining center

Both the main and auxiliary spindles adopt permanent magnet synchronous electric spindles, which have high power and strong force, without belt transmission. This enhances the dimensional stability and surface finish of the workpiece during high-speed turning. The spindle guide rails use large-sized and high-precision roller linear guides, which not only ensure the machining rigidity of the machine tool but also improve its machining accuracy.

Combined with the corresponding power head, it realizes the turning and milling compound function, enabling complex parts of customers to be processed in one clamping, completing all machining procedures.

450mm Z Axis High Precision CNC Turning Center With 87mm Spindle Bore 25m/Min 2
Fully enclosed stainless steel inner protective layout

The entire series employs a fully-enclosed stainless steel inner protective sheet metal design. Its scientific layout, precision engineering, and superior sealing ensure reliable waterproof and oil-resistant performance during operation.

450mm Z Axis High Precision CNC Turning Center With 87mm Spindle Bore 25m/Min 3
Frequently Asked Questions
Q: Manufacturer or trading company? Where is the company located?
A: We are a professional CNC lathe manufacturer located in Shiyan City, Hubei Province.
Q: How long have you been involved in this market?
A: We have 10 years of experience in the auto parts industry.
Q: Can you provide a product catalog?
A: Contact our business manager for the required product catalog via email.
Q: About the terms and conditions of payment.
A: We confirm payment terms (FOB, CIF, CNF) during quotation. For mass production, we typically require 30% advance payment with balance upon bill of lading, accepting T/T or L/C.
Q: Product after-sales service scope and service period?
A: We provide a one-year warranty and lifetime 24-hour technical support.
