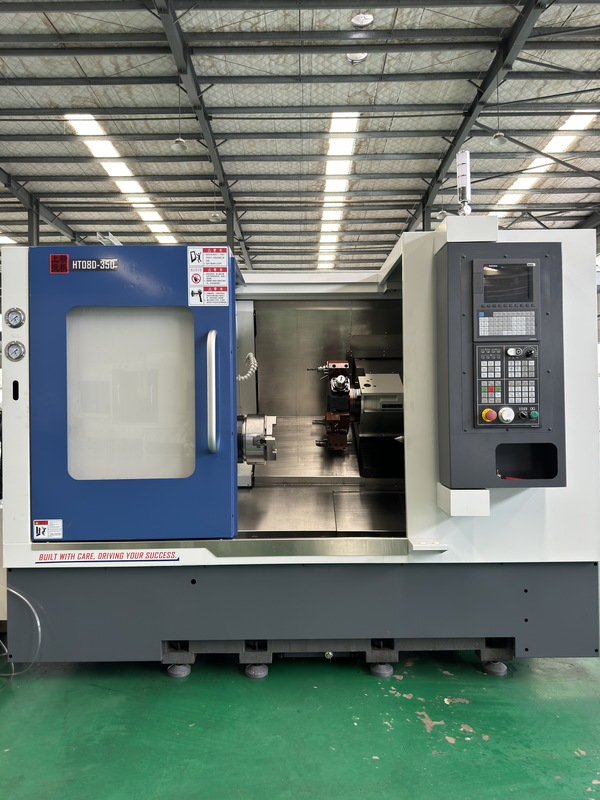

HT-Series Heavy-Duty High-Precision CNC Turning Center with Slant-Bed Structure for Industrial Batch Production

HT-Series Heavy-Duty High-Precision CNC Turning Center with Slant-Bed Structure for Industrial Batch Production

Heavy-Duty CNC Turning Center

High-Precision CNC Lathe

Slant-Bed Structure CNC Lathe

Place of Origin:

China

Brand Name:

ShangJie PM

Certification:

CE ISO certification

Model Number:

HT08DS-350/550/750

Chat Now
Request A Quote
HT-Series Heavy-Duty High-Precision CNC Turning Center with Slant-Bed Structure for Industrial Batch Production
Product Details
Highlight:

Heavy-Duty CNC Turning Center

,

High-Precision CNC Lathe

,

Slant-Bed Structure CNC Lathe

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time
45-60 days
Payment Terms
T/T,L/C,,Western Union
Supply Ability
45-60 days
RELATED PRODUCTS
Good price PT36 2 Axes CNC Turning Center 5000kg Weight 500mm Z Axis For Precision Machining online Video

PT36 2 Axes CNC Turning Center 5000kg Weight 500mm Z Axis For Precision Machining

Chat Now
Good price PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder online

PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder

Chat Now
Good price Light Duty CNC Turning Center With 380V 220V 4 Milling Heads For Multi Purpose Metal Working online Video

Light Duty CNC Turning Center With 380V 220V 4 Milling Heads For Multi Purpose Metal Working

Chat Now
Good price Horizontal High Precision Slant Bed CNC Lathe Machine With 350mm Tailstock Travel online Video

Horizontal High Precision Slant Bed CNC Lathe Machine With 350mm Tailstock Travel

Chat Now
CONTACT US
86--15221502418
bear02@shanjmc.com
Chat Now
Product Description
HT08DS-350/550/750
HT-Series High-Precision CNC Turning Center (Heavy-Duty)
ShangJie PM's HT Series CNC lathes feature high-rigidity slant-bed structures combined with powerful spindles and servo turrets. Designed for heavy-duty cutting and continuous batch production, the HT Series ensures stability and precision across complex turning tasks.
Key Features
  • Heavy-duty slant-bed lathe design with servo turret
  • Supports powerful spindle output and stable cutting performance
  • Designed for industrial-grade batch production and tough materials
  • Ideal for processing flanges, shafts, connectors, and other demanding metal components
  • Optimized chip removal and full automation support
HT/DS Series - Servo Power Tool Turret, Dual Spindles
Machine Characteristics
The HT series is a heavy-duty turret turning center, specifically designed for heavy cutting of large discs and shafts. The tailstock and sub-spindle rail parts are all integrally cast and have undergone reinforcement and optimization treatment. The extra-wide bed improves processing stability and is particularly suitable for turn-mill compound processing requirements.
HT-Series Heavy-Duty High-Precision CNC Turning Center with Slant-Bed Structure for Industrial Batch Production 0
Specifications
Machine Type HT08DS-350 HT08DS-550 HT08DS-750
Max. swing diameter 630mm 630mm 630mm
Max. machining diameter 320mm 320mm 320mm
Max. machining Length 350mm 550mm 750mm
Spindle nose A2-8 A2-8 A2-8
Spindle motor power 11/15 KW 11/15 KW 11/15 KW
Spindle bore 87mm 87mm 87mm
Max. spindle speed 4000r/min 4000r/min 4000r/min
Specification of the sub-spindle A2-5 A2-5 A2-5
X axis 230mm 230mm 230mm
Z axis 450mm 650mm 850mm
X axis rapid feed speed 30m/min 30m/min 30m/min
Z axis rapid feed speed 30m/min 30m/min 30m/min
X axis Max. torque of motor 34.5N.m 34.5N.m 34.5N.m
Z axis Max. torque of motor 45N.m 45N.m 45N.m
Chuck Size 10/12" 10/12" 10/12"
Servo Tool Turret 12/16 stations 12/16 stations 12/16 stations
OD tool size 25x25mm 25x25mm 25x25mm
Machine size (L x W x H) 2350x1470x1850mm 2600x1470x1850mm 2850x1470x1850mm
Standard weight 3400KG 4300KG 5100KG
Expandable Functions
Turn-Mill Capability
The entire HT series can be equipped with a servo power tool turret to achieve turning and milling compound functions.
HT-Series Heavy-Duty High-Precision CNC Turning Center with Slant-Bed Structure for Industrial Batch Production 1
Programmable Tailstock
The machine can be configured with a servo turret or customized with multiple power heads to deliver high-end turning-milling capabilities. This versatile solution meets complex machining demands while minimizing capital expenditure.
HT-Series Heavy-Duty High-Precision CNC Turning Center with Slant-Bed Structure for Industrial Batch Production 2
Company Advantages
  • Quality system certified manufacturer
  • Independent design and R&D capabilities
  • Equipped with large gantry machining centers, five-axis machining centers, and other large-scale processing equipment
  • Dedicated after-sales service team
Product Advantages
  • HT300 high-grade castings with ergonomic design
  • Imported functional components for long-term dimensional stability
  • Complete in-house processes from casting to sheet metal fabrication
  • Strict quality control throughout production
Application Scenarios
Ideal for mechanical processing fields such as automotive manufacturing, aerospace, and shipbuilding.
FAQ
Manufacturer or trading company? Where is the company located?
We are a professional manufacturer of CNC lathes, located in Shiyan City, Hubei Province.
How long have you been involved in this market?
We have been engaged in the auto parts industry for 10 years.
Can you provide a product catalog?
Contact our business manager, we will send the product catalog you need to your mailbox.
About the terms and conditions of payment.
When you quote, we will confirm with you the trading method (FOB, CIF, CNF or other methods). In mass production we usually require 30% advance payment first, then the balance against bill of lading. Most payment methods are T/T, though L/C is also acceptable.
Product after-sales service scope and service period?
We offer a one-year warranty and 24-hour lifetime technical support.
