High Precision CNC Turning Center With 140mm X Axis Travel 50-3000r/Min 3 Axes

High Precision CNC Turning Center With 140mm X Axis Travel 50-3000r/Min 3 Axes

High Precision CNC Turning Center

3000r/Min CNC Turning Center

50r/Min 3 axis cnc turning machine

Place of Origin:

China

Brand Name:

ShangJie PM

Certification:

CE ISO certification

Model Number:

XT08-410

Chat Now
Request A Quote
High Precision CNC Turning Center With 140mm X Axis Travel 50-3000r/Min 3 Axes
High Precision CNC Turning Center With 140mm X Axis Travel 50-3000r/Min 3 Axes High Precision CNC Turning Center With 140mm X Axis Travel 50-3000r/Min 3 Axes High Precision CNC Turning Center With 140mm X Axis Travel 50-3000r/Min 3 Axes High Precision CNC Turning Center With 140mm X Axis Travel 50-3000r/Min 3 Axes High Precision CNC Turning Center With 140mm X Axis Travel 50-3000r/Min 3 Axes
Product Details
X Axis Travel:
140mm
Travel Y:
±52.5mm
Spindle Speed Range:
50-3000 R/min
Applicable Industries:
Manufacturing Plant
Tool Post Stations:
8
Tool Post Type:
Gang Type
Milling Head:
(side)4 (nose)4
Rapid Traverse Rate:
20m/min
Chuck Size:
10 Inches
Z Axis Trave:
450mm
Z Axis Travel:
975mm
Number Of Axes:
3
Structure:
Slant Bed Lathe
Spindle Speed Step:
Stepless
After Warranty Service:
Online Support
Highlight:

High Precision CNC Turning Center

,

3000r/Min CNC Turning Center

,

50r/Min 3 axis cnc turning machine

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time
45-60 days
Payment Terms
T/T,L/C,,Western Union
Supply Ability
45-60 days
RELATED PRODUCTS
Good price ST32 CNC Turning Center With 15 18.5KW Spindle Power 8 Tool Post Stations online Video

ST32 CNC Turning Center With 15 18.5KW Spindle Power 8 Tool Post Stations

Chat Now
Good price High Precision CNC Turning Center With 140mm X Axis Travel 50-3000r/Min 3 Axes online Video

High Precision CNC Turning Center With 140mm X Axis Travel 50-3000r/Min 3 Axes

Chat Now
Good price Slant Bed CNC Horizontal Lathe 6000r/Min X Axis Z Axis 8 6 4 Tool Post Stations online Video

Slant Bed CNC Horizontal Lathe 6000r/Min X Axis Z Axis 8 6 4 Tool Post Stations

Chat Now
Good price XT05-360 High-Precision CNC Lathe With 45° Inclined Saddle And 8/12 Tool Positions For Heavy-Duty Industrial Applications online Video

XT05-360 High-Precision CNC Lathe With 45° Inclined Saddle And 8/12 Tool Positions For Heavy-Duty Industrial Applications

Chat Now
CONTACT US
86--15221502418
bear02@shanjmc.com
Chat Now
Product Description
XT08-410 高精度数控车床,X轴行程140mm,Y轴行程±52.5mm,4个侧铣头
ShangJie PM 的 XT 系列提供具有斜床和伺服刀架配置的高刚性 CNC 车床,专为苛刻的工业环境中的精密车削而设计.这些机器支持多刀具操作并具有快速分度功能,使其成为加工复杂轴,阀门和机械接头的理想选择.XT 系列结合了稳定的铸造,先进的 CNC 控制和抗热变形的能力,确保在连续操作期间保持一致的精度.
主要特点
  • 斜床结构带伺服回转头的高效车削
  • 刚性体和精密进给系统以实现稳定且长时间的运行
  • 为复杂,高产量零件生产而设计,适用于各个行业
型号:XT08-410
XT 系列 - 伺服刀架,无尾座(可选伺服动力刀架以实现车削-铣削功能.)
机器特性
XT系列机床是一种专门设计用于盘类和短轴类零件重型切削的机床.其特点是具有整体床身,床身设计加宽,加固且重心低,以减少重型切削过程中的振动.X方向45°倾斜床鞍布局有效抵抗水平和垂直方向的力,消除丝杠的间隙,并确保加工过程中刀具更好的几何对称性,减少刀具的侧向负载.
通过应用有限元分析(FEM),优化了铸件中加强肋的形状和位置,以实现最佳床身强度,使床身结构更适用于重型切削并延长工具的使用寿命.
规格
机器类型 XT08
最大摆动直径 620毫米
最大加工直径 410毫米
主轴鼻子 A2-8
主轴电机功率 11/15 千瓦
主轴孔 87毫米
最大主轴速度 3000转/分钟
X 轴 220毫米
Z 轴 410毫米
X轴快速进给速度 30米/分钟
Z轴快速进给速度 30米/分钟
X轴电机最大扭矩 34.5牛米
Z轴电机最大扭矩 34.5牛米
查克尺寸 12英寸
伺服工具塔 8/12
OD工具尺寸 25x25毫米
机器尺寸(长 x 宽 x 高) 1800x1580x1700毫米
标准重量 2700公斤
可扩展功能
车铣

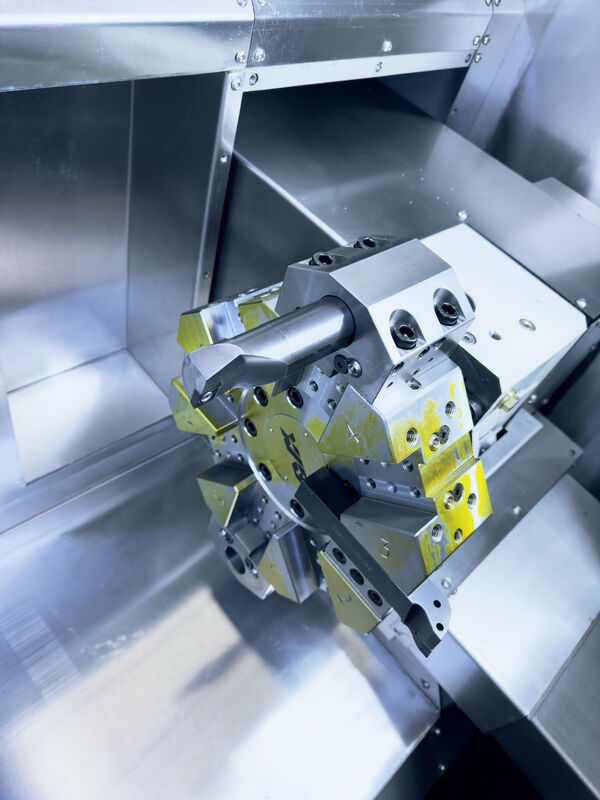

High Precision CNC Turning Center With 140mm X Axis Travel 50-3000r/Min 3 Axes 0
整个XT系列都可以配备伺服动力工具塔,以实现车削和铣削复合功能的加工能力.
Programmable Tailstock
High Precision CNC Turning Center With 140mm X Axis Travel 50-3000r/Min 3 Axes 1
The machine can be configured with a servo turret or customized with multiple power heads to deliver high-end turning-milling capabilities. This versatile solution meets complex machining demands while minimizing customers' capital expenditure on equipment.
Frequently Asked Questions
Q: Manufacturer or trading company? Where is the company located?
A: We are a professional CNC lathe manufacturer located in Shiyan City, Hubei Province.
Q: How long have you been involved in this market?
A: We have 10 years of experience in the auto parts industry.
Q: Can you provide a product catalog?
A: Contact our business manager for the required product catalog via email.
Q: About the terms and conditions of payment.
A: 我们在报价时确认付款条件(FOB,CIF,CNF).对于大批量生产,我们通常要求30%的预付款,余款在提单时支付,接受电汇或信用证.
问:产品售后服务范围和服务期限?
A: 我们提供一年保修和终身24小时技术支持.
