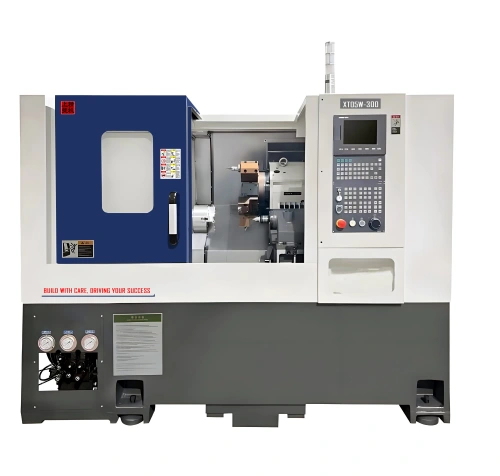

XT05-360 High-Precision CNC Lathe with 45° Inclined Saddle and 8/12 Tool Positions for Heavy-Duty Industrial Applications
XT Series High-Precision CNC Slant Bed Tool Turret Lathe
ShangJie PM's XT Series offers high-rigidity CNC lathes with slant-bed and servo turret configurations, tailored for precision turning in demanding industrial environments. These machines support multi-tool operation with fast indexing, making them ideal for machining complex shafts, valves, and mechanical fittings. The XT Series combines stable casting, advanced CNC control, and thermal distortion resistance, ensuring consistent accuracy during continuous operation.
- Slant-bed structure with servo turret for high-efficiency turning
- Rigid body and precise feed system for stable long-cycle operation
- Built for complex, high-volume part production across industries
Machine Characteristics
The XT series is a type of machine tool specially designed for heavy cutting of disc-shaped and short shaft parts. It features an integral bed with a widened, reinforced and low center of gravity design to reduce vibrations during heavy cutting. The 45° inclined saddle layout in the X direction effectively resists forces in both horizontal and vertical directions, eliminates backlash in the lead screw, and ensures better geometric symmetry of the cutting tool during processing.
By applying finite element analysis (FEM), the shape and position of the reinforcing ribs in the castings are optimized to achieve the best bed strength, making the bed structure more suitable for heavy cutting and extending the tool's service life.
Specifications
| Machine Type |
XT05 |
| Max. swing diameter |
550mm |
| Max. machining diameter |
300mm |
| Spindle nose |
A2-5 |
| Spindle motor power |
5.5/7.5 KW |
| Spindle bore |
48mm |
| Max. spindle speed |
4000r/min |
| X axis |
215mm |
| Z axis |
360mm |
| X axis rapid feed speed |
25m/min |
| Z axis rapid feed speed |
25m/min |
| X axis Max. torque of motor |
25.2N.m |
| Z axis Max. torque of motor |
25.2N.m |
| Chuck Size |
6" |
| Servo Tool Turret |
8/12 |
| OD tool size |
25x25mm |
| Machine size (L x W x H) |
1800x1420x1650mm |
| Standard weight |
2100KG |
Expandable Functions
The entire XT series can be equipped with a servo power tool turret to achieve the processing capability of turning and milling compound functions.
The machine can be configured with a servo turret or customized with multiple power heads to deliver high-end turning-milling capabilities. This versatile solution meets complex machining demands while minimizing customers' capital expenditure on equipment.
Precision and Power for Industrial Excellence
The XT05-360 from the XT Series is engineered to redefine precision in heavy-duty machining. Designed specifically for the rigorous demands of industrial applications, this CNC lathe machine excels in cutting disc-shaped and short shaft parts with unmatched accuracy.
Built for Precision and Performance
The XT05-360 is not just about power; it's about delivering consistent performance with every use. Equipped with a servo tool turret, this CNC lathe machine offers the flexibility of 8/12 tool positions, allowing for complex machining tasks with ease.
Scalable Design to Meet Growing Demand
Future-proof your operations with the XT05-360's scalable design. This CNC lathe machine is adaptable to evolving industrial needs, offering expandable functions such as the Turn-Mill capability with an optional servo power tool turret.
Product Advantages
1. Unmatched Precision and Stability
The XT05-360 CNC lathe machine is engineered for precision in heavy-duty machining. Its reinforced bed and low center of gravity design minimize vibrations, ensuring stability during heavy cutting.
2. Versatile Machining Capabilities
Equipped with a servo tool turret, the XT05-360 CNC lathe machine offers 8/12 tool positions, allowing for complex machining tasks with ease.
3. Enhanced Productivity and Efficiency
With a spindle motor power range of 5.5/7.5 KW and a maximum speed of 4000r/min, the XT05-360 handles demanding tasks efficiently.
4. Scalable and Future-Proof Design
The XT05-360 CNC lathe machine is designed to adapt to evolving industrial needs. Its expandable functions provide a comprehensive solution for complex machining requirements.
5. Durability and Reliability
Built for the rigorous demands of industrial applications, the XT05-360 is a testament to durability and reliability.
