ST36 Slant Bed CNC Lathe with 570mm Max Processing Length 160mm Chuck and HT300 Grade Cast Iron

ST36 Slant Bed CNC Lathe with 570mm Max Processing Length 160mm Chuck and HT300 Grade Cast Iron

570mm Max Processing Length CNC Turning Center

160mm Chuck Slant Bed CNC Lathe

HT300 Grade Cast Iron ST36

Place of Origin:

China

Brand Name:

ShangJie PM

Certification:

CE ISO certification

Model Number:

ST36

Chat Now
Request A Quote
ST36 Slant Bed CNC Lathe with 570mm Max Processing Length 160mm Chuck and HT300 Grade Cast Iron
Product Details
Coolant System:
Oil-based
Spindle Motor Power:
5.5kg/7.5kw
Tool Holder Size:
25x25mm
Application:
Multi Purpose Metal Working
Turret Capacity:
12 Tools
Machine Type:
Slant Bed CNC Lathe
Voltage:
220V/380V415V 50/60Hz
Type Of Tailstock:
Hydraulic *LM
Travel Y:
±52.5mm
Spindle Speed Range:
50-3000 R/min
Spindle Speed:
6000rpm
Max Processing Length:
570mm
Chuck:
160mm
Key Selling Points:
High-accuracy
Toolpost Brand:
Hydex
Highlight:

570mm Max Processing Length CNC Turning Center

,

160mm Chuck Slant Bed CNC Lathe

,

HT300 Grade Cast Iron ST36

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time
45-60 days
Payment Terms
T/T,L/C,,Western Union
Supply Ability
45-60 days
RELATED PRODUCTS
Good price PT36 2 Axes CNC Turning Center 5000kg Weight 500mm Z Axis For Precision Machining online Video

PT36 2 Axes CNC Turning Center 5000kg Weight 500mm Z Axis For Precision Machining

Chat Now
Good price PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder online

PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder

Chat Now
Good price Light Duty CNC Turning Center With 380V 220V 4 Milling Heads For Multi Purpose Metal Working online Video

Light Duty CNC Turning Center With 380V 220V 4 Milling Heads For Multi Purpose Metal Working

Chat Now
Good price Horizontal High Precision Slant Bed CNC Lathe Machine With 350mm Tailstock Travel online Video

Horizontal High Precision Slant Bed CNC Lathe Machine With 350mm Tailstock Travel

Chat Now
CONTACT US
86--15221502418
bear02@shanjmc.com
Chat Now
Product Description

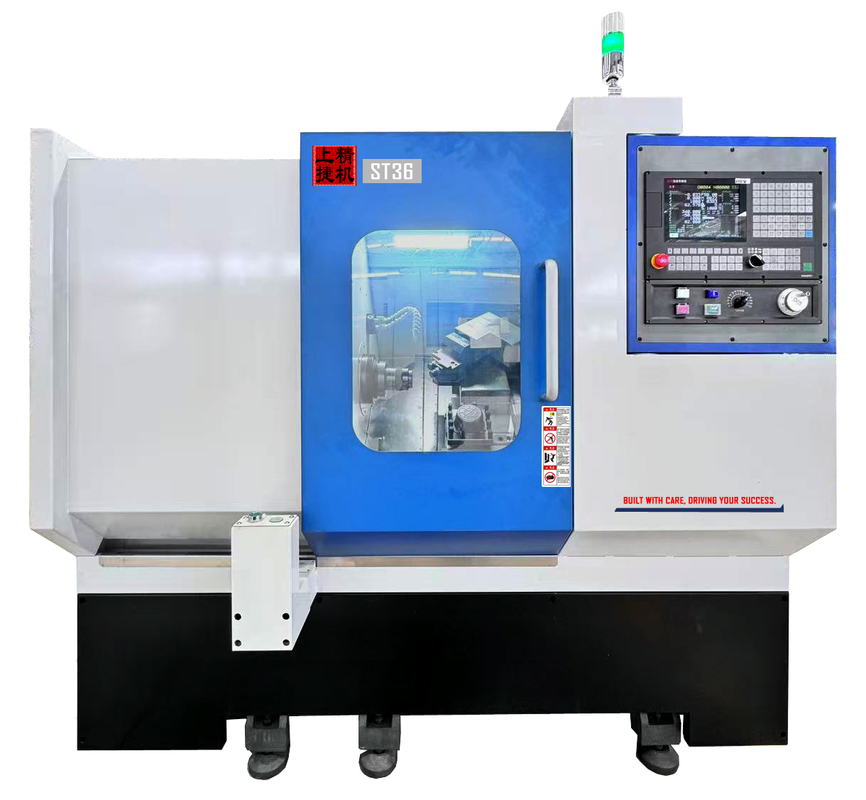

ST36 Slant-Bed CNC Lathe
The ST Series from ShangJie PM offers slant-bed CNC lathes equipped with linear turret systems for enhanced rigidity and cutting precision. Designed for medium-to-high volume production, these machines deliver excellent chip evacuation and stable machining at high speeds.
Key Features
  • Slant-bed structure for efficient chip flow and stable operation
  • Linear turret enables fast tool indexing and smooth finishing
  • Ideal for processing shafts, bushings, and threaded components
  • Suits automotive parts, industrial tools, and hardware manufacturing
  • Inclined bed design improves operator access and reduces thermal distortion
Construction Details
Casting Material: Machine bed is constructed with HT300 grade cast iron as a monolithic casting, processed through vibration aging and double tempering treatments to eliminate residual stresses. This ensures exceptional dimensional stability and long-term durability.
Bed Structure: The machine tool features a monoblock bed with a low center of gravity. Finite Element Analysis (FEM) optimizes the geometry and layout of reinforcing ribs in the cast components, maximizing bed rigidity for superior performance in heavy-duty cutting operations.
Technical Specifications
Machine Type ST36
Max. swing diameter 470mm
Max. machining diameter on the saddle 120mm
Max. bar through diameter 36mm
Spindle nose A2-5
Spindle motor power 5.5KW
Spindle bore 48mm
Max. spindle speed 4000r/min
X axis 375mm
Z axis 300mm
X axis rapid feed speed 25m/min
Z axis rapid feed speed 25m/min
X axis Max. torque of motor 18N.m
Z axis Max. torque of motor 18N.m
Pneumatic clamping Spring collet
Manual chuck 8"
Hydraulic clamping Chuck Size 8"
OD tool size 16x16mm
Machine size (L x W x H) 1650x1420x1650mm
Standard weight 1650KG
Expandable Functions
Modular Power Head
Customized power head configurations can be added according to processing requirements, enabling drilling, milling, tapping, and other feature machining operations.
ST36 Slant Bed CNC Lathe with 570mm Max Processing Length 160mm Chuck and HT300 Grade Cast Iron 0 ST36 Slant Bed CNC Lathe with 570mm Max Processing Length 160mm Chuck and HT300 Grade Cast Iron 1 ST36 Slant Bed CNC Lathe with 570mm Max Processing Length 160mm Chuck and HT300 Grade Cast Iron 2 ST36 Slant Bed CNC Lathe with 570mm Max Processing Length 160mm Chuck and HT300 Grade Cast Iron 3
Turn-Mill Capability
The machine can be configured with a servo turret or customized with multiple power heads to deliver high-end turning-milling capabilities for complex machining demands.
ST36 Slant Bed CNC Lathe with 570mm Max Processing Length 160mm Chuck and HT300 Grade Cast Iron 4 ST36 Slant Bed CNC Lathe with 570mm Max Processing Length 160mm Chuck and HT300 Grade Cast Iron 5 ST36 Slant Bed CNC Lathe with 570mm Max Processing Length 160mm Chuck and HT300 Grade Cast Iron 6
Frequently Asked Questions
Q: Manufacturer or trading company? Where is the company located?
A: We are a professional manufacturer of CNC lathes, located in Shiyan City, Hubei Province.
Q: How long have you been involved in this market?
A: We have been engaged in the auto parts industry for 10 years.
Q: Can you provide a product catalog?
A: Contact our business manager, we will send the product catalog you need to your mailbox.
Q: About the terms and conditions of payment.
A: When you quote, we will confirm with you the trading method (FOB, CIF, CNF, etc.). For mass production we typically require 30% advance payment with balance due upon bill of lading. Payment methods are primarily T/T, though L/C is also acceptable.
Q: Product after-sales service scope and service period?
A: We offer a one-year warranty and 24-hour lifetime technical support.
