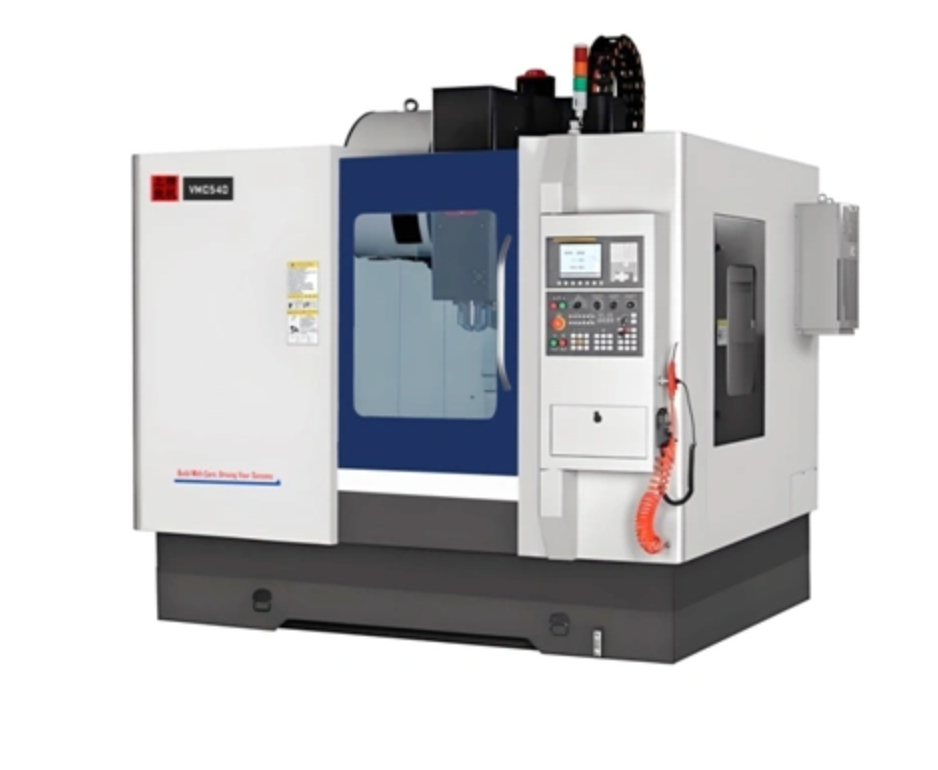

VMC430 CNC Vertical Center with HT300 High-Grade Casting 8000/12000 RPM Spindle Speed and BT40 Spindle Taper Hole

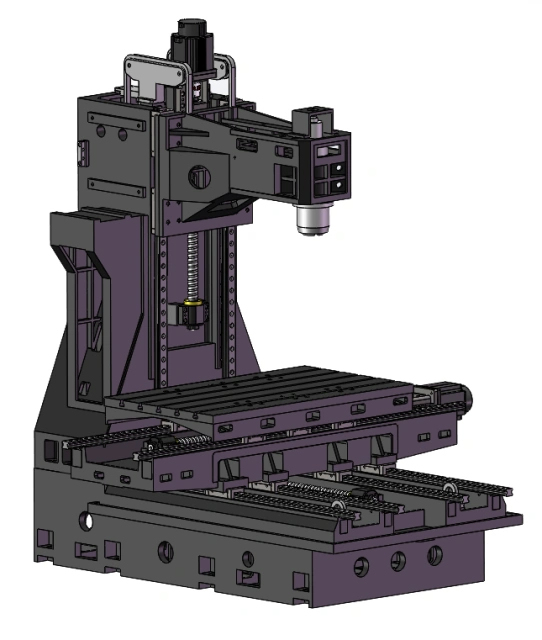

VMC series machine tools adopt a low center of gravity design, increase the span of the column, and widen the width of the Y-axis base to enhance the stability of the machine tool. By applying finite element analysis (FEM), the shape and position of the reinforcing ribs of the castings are optimized to achieve the best strength of the bed. Additionally, special reinforcement structures are implemented on the Y-axis base and the Z-axis column to ensure that the machine tool maintains good accuracy during long-term operation. At the same time, the bed structure is more conducive to heavy cutting, improving work efficiency and tool life.
Casting Material
The machine tool castings are made of HT300 high-grade material, which features high strength, strong resistance to deformation and excellent shock absorption capacity. After vibration aging and secondary tempering processes, the stress is eliminated, providing excellent dimensional stability and durability. This ensures that the machine tool maintains stable precision over a long period of use.
Specifications
| Machine Type |
VMC430 |
| Workbench size |
550x300 mm |
| Workbench T-slot (number - size * pitch) |
3-14x90 mm |
| Max. load capacity of the workbench |
260KG |
| X-axis travel distance |
410mm |
| Y-axis travel distance |
310mm |
| Z-axis travel distance |
500mm |
| Distance from the center of spindle to the guide rail of the column |
380mm |
| Distance from the spindle face to the worktable surface |
100-600 mm |
| Guide rail form |
Precision Grade P roller-type linear guide |
| X,Y,Z fast movement speed |
30m/min |
| X axis Max. torque of motor |
34.5N.m |
| Y axis Max. torque of motor |
34.5N.m |
| Z axis Max. torque of motor |
34.5N.m |
| Max. spindle speed |
8000/12000 rpm |
| Spindle taper hole |
BT40 |
| Spindle motor power |
5.5/7.5 KW |
| Tool magazine capacity |
Umbrella-Type 12Tools |
| Max. weight of cutting tools |
8Kg |
| Air source pressure |
0.5-0.8 MPa |
| Machine size (L x W x H) |
1450x1480x1950mm |
| Standard weight |
3200KG |
Machine Tool Configuration
CNC system: FANUC, Siemens, SYNTEC, KND, Mitsubishi
High-quality spindle, imported bearings
THK, PMI, HIWIN, HTPM Precision Grade P roller-type linear guide
C3 grade precision ground ball screw
High-quality tool clamping cylinder
NSK, SKF, FAG P4 grade imported angular contact paired bearings
Precision high-rigidity coupling
Imported high-torque synchronous belts
High-quality disc-type /Umbrella-type ATC Tool magazine
Product Advantages
1. Enhanced Stability and Precision
The VMC430 features a low center of gravity design with widened Y-axis base and increased column span for enhanced stability. Finite element analysis optimizes reinforcing rib placement for superior bed strength, ensuring consistent accuracy during long-term operation.
2. Heavy-Duty Performance
Constructed with HT300 high-grade casting material for exceptional deformation resistance and shock absorption. Vibration aging and secondary tempering processes eliminate stress, ensuring long-term dimensional stability for heavy cutting applications.
3. Scalable Design
With a tool magazine capacity of 12 tools and maximum spindle speed of 8000/12000 rpm, the VMC430 handles diverse machining tasks. Compatibility with leading CNC systems ensures seamless integration into existing workflows.
4. Advanced Construction
Features precision-grade P roller-type linear guides, C3 grade precision ground ball screws, and high-rigidity couplings for smooth, efficient operation in demanding industrial environments.
