VS130 cNC vertical machining centerWith HT300 High Grade Castings 1310mm X Axis Travel

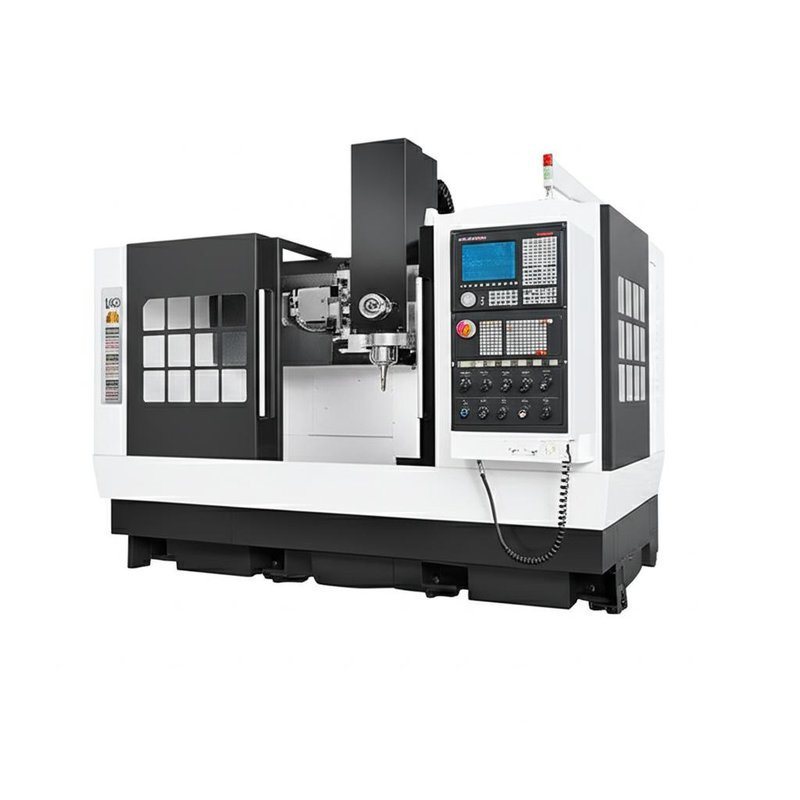

Large Image : VS130 cNC vertical machining centerWith HT300 High Grade Castings 1310mm X Axis Travel

Product Details:

Place of Origin:	China
Certification:	CE ISO certification

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time:	45-60 days
Payment Terms:	T/T,L/C,,Western Union
Supply Ability:	45-60 days

Contact Now Chat Now

VS130 cNC vertical machining centerWith HT300 High Grade Castings 1310mm X Axis Travel

Description

Table Size:	600mm X 400mm	Weight:	6,500kg
Spindle Speed:	10,000 RPM	Type:	Vertical Machining Center
Power Supply:	3 Phase, 220V/380V/415V	Spindle Taper:	BT40
Controller:	Fanuc/Mitsubishi/Siemens	Max Load Capacity:	300kg
Warranty:	1 Year	Number Of Axes:	3
Tool Capacity:	24	Rapid Traverse Rate:	30m/min
Dimensions:	2,500mm X 2,000mm X 2,500mm
Highlight:	VS130 cnc vertical machining center , 1310mm cnc vertical machining center , HT300 cnc vertical milling machine center

VS130 Vertical Machining Center with HT300 High-Grade Castings 1310mm X-axis Travel and 8000/12000 RPM Spindle Speed

The VS series is a heavy-duty vertical machining center designed for industrial applications. All models feature 6 sliders on the X-axis, 4 roller linear guides with 8 sliders on the Y-axis, and a Z-axis column with an increased installation foot span for enhanced stability and processing performance.

The VS130 is a robust vertical machining center engineered for heavy-duty applications. Its low center of gravity, anti-distortion structure, and high material removal rate ensure precision and durability, making it ideal for manufacturers seeking efficient and reliable machining solutions.

Machine Structure

The VS series is professionally designed with principles of low center of gravity, anti-distortion, anti-creep, heavy cutting capability, and high material removal rate.

Finite element analysis (FEM) optimizes casting reinforcement ribs for maximum bed strength
Special reinforcement structures on Y-axis base and Z-axis column enhance heavy cutting capability and tool life
HT300 high-grade castings provide superior strength, deformation resistance, and shock absorption
Vibration aging and secondary tempering processes eliminate stress for long-term dimensional stability

Standard spindle counterweight system reduces Z-axis lead screw load, minimizing thermal elongation impact on machining accuracy.

Large span Z-axis column with HT300 material components for superior vibration damping and stability.

Specifications

Machine Type	VS130
Workbench size	1300x700 mm
Workbench T-slot (number - size * pitch)	5-18x130 mm
Max. load capacity of the workbench	1200KG
X-axis travel distance	1310mm
Y-axis travel distance	710mm
Z-axis travel distance	630mm
Distance from spindle center to column guide rail	770mm
Distance from spindle face to worktable surface	130-760 mm
Guide rail form	Precision Grade P roller-type linear guide
X,Y,Z fast movement speed	30m/min
Max. torque of motor (X,Y,Z axes)	69N.m
Max. spindle speed	8000/12000 rpm
Spindle taper hole	BT40 (BT50 Optional)
Spindle motor power	11/15 KW (※15/18 KW)
Tool magazine capacity	Disc-Type 24Tools
Max. weight of cutting tools	8KG(BT40) / 15KG(BT50)
Air source pressure	0.5-0.8 MPa
Machine size (L x W x H)	2600x2150x2650mm

Machine Tool Configuration

CNC System

FANUC, Siemens, SYNTEC, KND, Mitsubishi

High-quality Spindle

Imported bearings

Precision Linear Guides

THK, PMI, HIWIN, HTPM 45,55 Precision Grade P roller-type

Precision Ball Screws

THK, PMI, HIWIN C3 grade Ø50 precision ground

Company Advantages

Quality system certified manufacturer
Independent design and R&D capabilities
Equipped with large gantry and five-axis machining centers
Dedicated after-sales service team

Product Advantages

HT300 high-grade castings with ergonomic design
Imported functional components for long-term stability
Complete in-house processes from casting to fabrication
Strict quality control throughout production

Application Scenarios

Ideal for mechanical processing in automotive manufacturing, aerospace, and shipbuilding industries.

Frequently Asked Questions

Q: Manufacturer or trading company? Where is the company located?

A: We are a professional manufacturer of CNC lathes, located in Shiyan City, Hubei Province.

Q: How long have you been involved in this market?

A: We have been engaged in the auto parts industry for 10 years.

Q: Can you provide a product catalog?

A: Contact our business manager for the product catalog via email.

Q: About the terms and conditions of payment.

A: We confirm trading methods (FOB, CIF, CNF) during quotation. Typical payment is 30% advance with balance upon shipment, via T/T or L/C.

Q: Product after-sales service scope and service period?

A: We offer a one-year warranty and 24-hour lifetime technical support.
