VMC955 CNC Vertical Center With HT300 High Grade Casting 8000 12000RPM Spindle Speed

VMC955 cnc vertical center

12000RPM cnc vertical center

8000RPM cnc vertical machining

Place of Origin:

China

Certification:

CE ISO certification

Chat Now

Request A Quote

Product Details

Table Size:

600mm X 400mm

Weight:

6,500kg

Spindle Speed:

10,000 RPM

Type:

Vertical Machining Center

Power Supply:

3 Phase, 220V/380V/415V

Spindle Taper:

BT40

Controller:

Fanuc/Mitsubishi/Siemens

Max Load Capacity:

300kg

Warranty:

1 Year

Number Of Axes:

Tool Capacity:

Rapid Traverse Rate:

30m/min

Dimensions:

2,500mm X 2,000mm X 2,500mm

Highlight:

VMC955 cnc vertical center

12000RPM cnc vertical center

8000RPM cnc vertical machining

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

The wooden case，Tin trunk ,Other seaworthy packing

Delivery Time

45-60 days

Payment Terms

T/T,L/C,,Western Union

Supply Ability

45-60 days

VS1160 Heavy Duty Vertical Machining Center With BT40 Spindle Taper Hole 8000 12000RPM

Chat Now

Video

VMC850 CNC Turning Center With HT300 High Grade Casting 3 Phase 220V 380V 415V

Chat Now

Video

VS150 Heavy Duty CNC Vertical Center 3 Axes 30m/Min Rapid Traverse Rate 3 Phase

Chat Now

Video

HT300 High Grade Castings CNC Vertical Center For Precision Milling High Speed Spindle

Chat Now

86--15221502418

bear02@shanjmc.com

Chat Now

Product Description

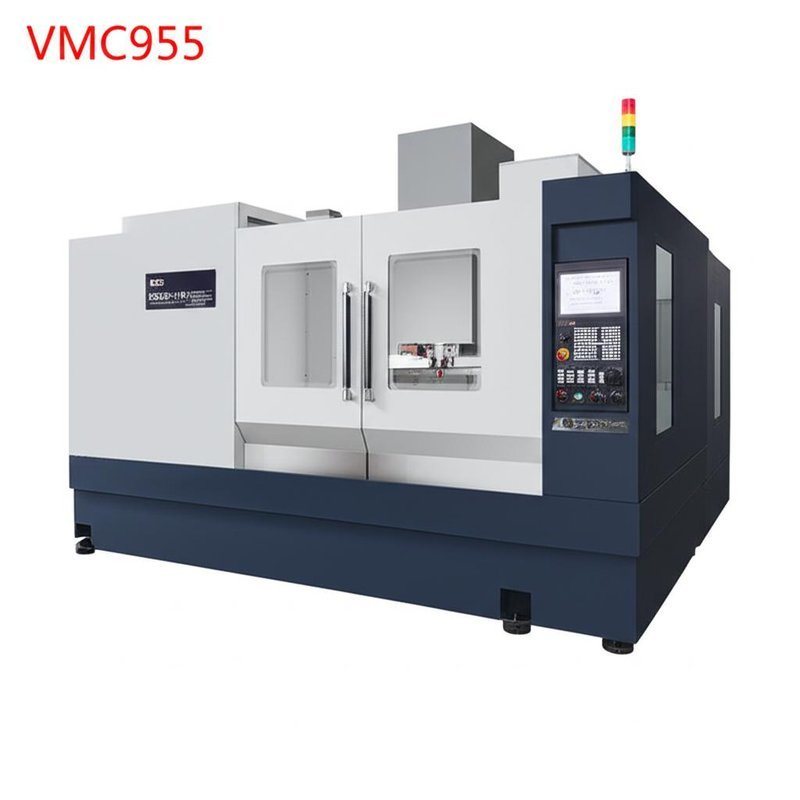

VMC955 CNC Vertical Center with HT300 High-Grade Casting 8000/12000 RPM Spindle Speed and 24-Tool Disc-Type Magazine

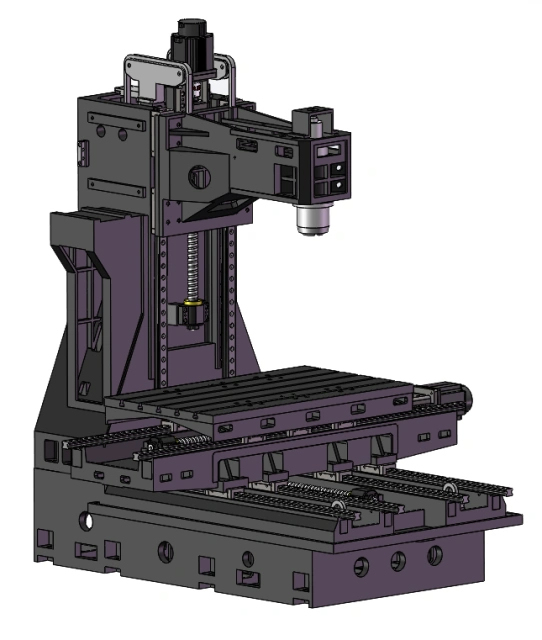

The VMC series machine tools feature a low center of gravity design with increased column span and widened Y-axis base for enhanced stability. Through finite element analysis (FEM), we've optimized the reinforcing rib structure of castings to achieve maximum bed strength. Special reinforcement on the Y-axis base and Z-axis column ensures long-term operational accuracy, while the robust bed structure supports heavy cutting applications, improving both work efficiency and tool life.

Key Features

Casting Material: HT300 high-grade material offering superior strength, deformation resistance, and shock absorption
Vibration aging and secondary tempering processes for stress elimination and dimensional stability
Precision-engineered reinforcement structures for Y-axis base and Z-axis column
Optimized for heavy cutting operations with improved efficiency

Technical Specifications

Parameter	Specification
Machine Type	VMC955
Workbench size	1100x500 mm
Workbench T-slot (number - size * pitch)	5-18x90 mm
Max. load capacity of the workbench	700KG
X-axis travel distance	910mm
Y-axis travel distance	560mm
Z-axis travel distance	560mm
Distance from spindle center to column guide rail	625mm
Distance from spindle face to worktable surface	120-680 mm
Guide rail form	Precision Grade P roller-type linear guide
X,Y,Z fast movement speed	30m/min
X axis Max. torque of motor	55.8N.m
Y axis Max. torque of motor	55.8N.m
Z axis Max. torque of motor	69N.m
Max. spindle speed	8000/12000 rpm
Spindle taper hole	BT40
Spindle motor power	11/15 KW
Tool magazine capacity	Disc-Type 24Tools
Max. weight of cutting tools	8Kg
Air source pressure	0.5-0.8 MPa
Machine size (L x W x H)	2250x2050x2500mm
Standard weight	7200KG

Machine Tool Configuration

CNC system: FANUC, Siemens, SYNTEC, KND, Mitsubishi

High-quality spindle with imported bearings

THK, PMI, HIWIN, HTPM Precision Grade P roller-type linear guide

C3 grade precision ground ball screw

High-quality tool clamping cylinder

NSK, SKF, FAG P4 grade imported angular contact paired bearings

Precision high-rigidity coupling

Imported high-torque synchronous belts

High-quality disc-type/Umbrella-type ATC Tool magazine

Product Advantages

1. Enhanced Stability and Precision

The VMC955 features a low center of gravity design with widened Y-axis base and increased column span for superior stability. Finite element analysis optimizes reinforcing rib placement for maximum bed strength, ensuring consistent accuracy during heavy machining operations.

2. Heavy-Duty Performance

Constructed with HT300 high-grade casting material for exceptional deformation resistance and shock absorption. Vibration aging and secondary tempering processes eliminate stress, guaranteeing long-term dimensional stability for demanding industrial applications.

3. Advanced Motion System

Equipped with Precision Grade P roller-type linear guides, C3 grade ball screws, and high-torque servo motors (X/Y: 55.8N.m, Z: 69N.m) delivering fast movements up to 30m/min while maintaining positioning accuracy.

4. Flexible Configuration Options

Compatible with major CNC systems (FANUC, Siemens, etc.) and available with either 8000 or 12000 rpm spindle options. The 24-tool automatic magazine supports quick tool changes for diverse machining requirements.

Frequently Asked Questions

How can we guarantee quality?

We use HT300 high-grade casting material and implement rigorous quality control measures. All machines undergo vibration aging and secondary tempering processes to ensure long-term dimensional stability and precision.

What CNC systems are compatible?

The VMC955 is compatible with FANUC, Siemens, SYNTEC, KND, and Mitsubishi CNC systems, allowing seamless integration into your existing workflow.

What is the maximum workpiece weight?

The worktable supports a maximum load capacity of 700KG, with the machine's robust construction maintaining precision even at full capacity.

Can the machine be customized?

Yes, we offer customization options including spindle speed selection (8000 or 12000 rpm), tool magazine configuration, and CNC system choice to meet your specific production requirements.
