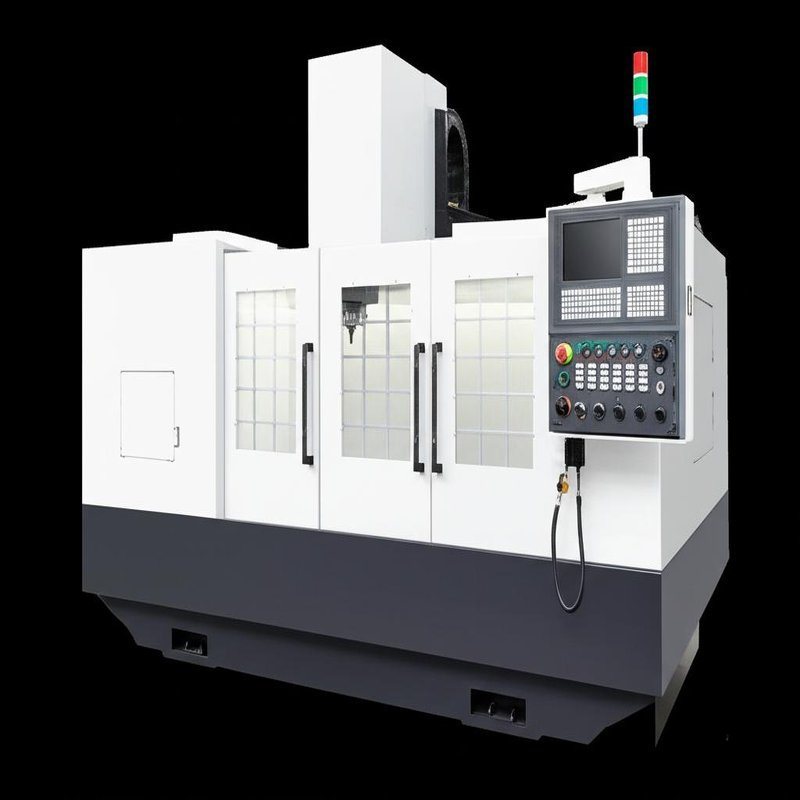

CNC Vertical Machining Center with HT300 High-Grade Castings for Precision Milling and High-Speed Spindle Performance
ShangJie PM's CNC vertical machining centers are built for precision milling, drilling, and tapping operations across a wide range of materials. With a vertical spindle and compact structure, these machines are well-suited for producing molds, plates, metal housings, and high-precision mechanical parts.
- Vertical design enables efficient chip flow and easy setup
- High-speed spindle and precise axes ensure tight tolerances
- Ideal for mold parts, structural components, and metalworking shops

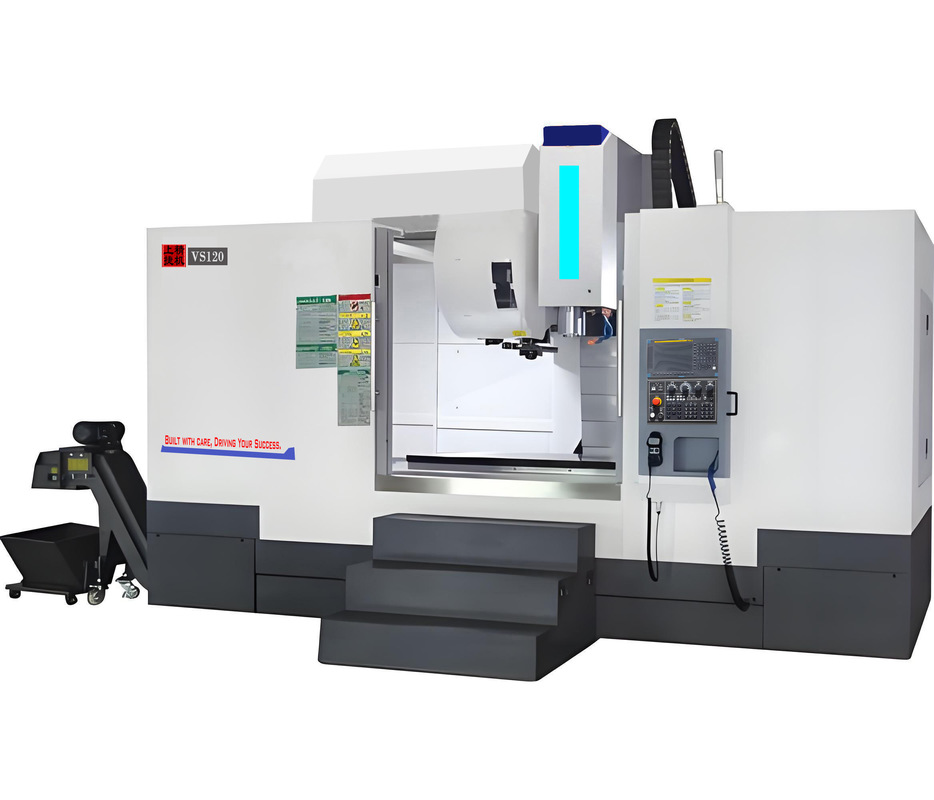

VS Series Heavy-Duty Vertical Machining Center
The VS series is a heavy-duty vertical machining center featuring 6 sliders on the X-axis, 4 roller linear guides with 8 sliders on the Y-axis, and a Z-axis column with increased installation foot span for enhanced stability and processing performance.
Machine Structure
The VS series is professionally designed with principles of low center of gravity, anti-distortion, anti-creep, heavy cutting, and high material removal rate. Finite element analysis optimizes the reinforcing ribs of HT300 high-grade castings for superior strength and durability.
| VS series is equipped with a standard spindle counterweight system, which reduces load on the Z-axis lead screw and enhances machining accuracy. |
 |
| The Z-axis column features large span design with HT300 material components for superior vibration damping and stability. |
|
Specifications
| Machine Type |
VS150 |
| Workbench size |
1700x800 mm |
| Workbench T-slot |
5-18x150 mm |
| Max. load capacity |
1600KG |
| X-axis travel distance |
1510mm |
| Y-axis travel distance |
810mm |
| Z-axis travel distance |
710mm |
| Max. spindle speed |
8000/12000 rpm |
| Spindle motor power |
15/18 KW |
| Tool magazine capacity |
Disc-Type 24Tools |
| Machine size (L x W x H) |
3200x2650x2800mm |
| Standard weight |
15000KG |
Machine Tool Configuration
CNC system options: FANUC, Siemens, SYNTEC, KND, Mitsubishi
CNC control system
High-quality spindle
Precision linear guides
Company Advantages
Our company has passed quality system certification with independent design and R&D capabilities. Equipped with large gantry machining centers and five-axis machining centers, we provide comprehensive after-sales service.
Product Advantages
Our machine tools use HT300 high-grade castings with ergonomic design and imported functional components. We maintain complete in-house production from casting to sheet metal fabrication for quality control.
Application Scenarios
Suitable for mechanical processing fields including automotive manufacturing, aerospace, and shipbuilding.
FAQ
Manufacturer or trading company? Where is the company located?
We are a professional manufacturer of CNC lathes, located in Shiyan City, Hubei Province.
How long have you been involved in this market?
We have been engaged in the auto parts industry for 10 years.
Can you provide a product catalog?
Contact our business manager for the product catalog via email.
About the terms and conditions of payment.
We typically require 30% advance payment with balance upon shipment. Payment methods include T/T and L/C.
Product after-sales service scope and service period
We offer a one-year warranty and 24-hour lifetime technical support.
