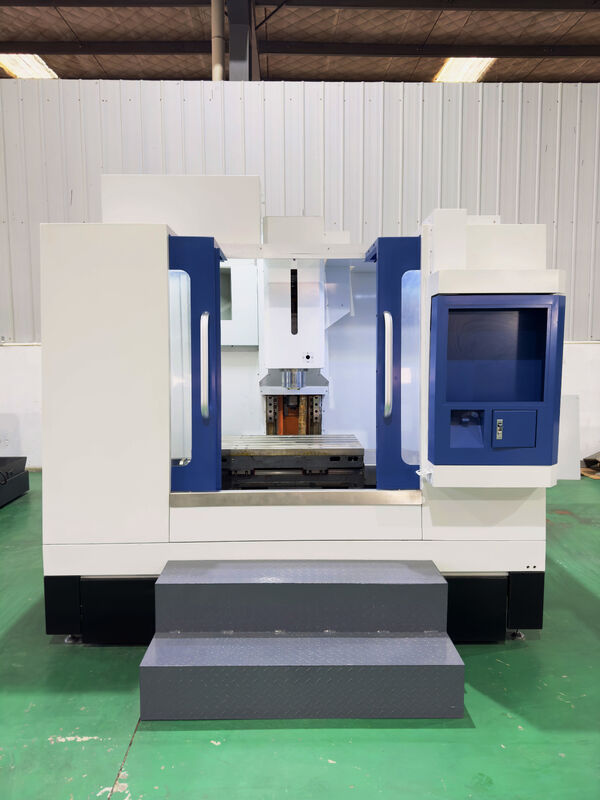

VMC540 CNC Vertical Center With HT300 High Grade Casting 8000 12000RPM Spindle Speed

VMC540 CNC Vertical Center

12000RPM CNC Vertical Center

8000RPM vertical horizontal machining center

Place of Origin:

China

Certification:

CE ISO certification

Chat Now

Request A Quote

Product Details

Table Size:

600mm X 400mm

Weight:

6,500kg

Spindle Speed:

10,000 RPM

Type:

Vertical Machining Center

Power Supply:

3 Phase, 220V/380V/415V

Spindle Taper:

BT40

Controller:

Fanuc/Mitsubishi/Siemens

Max Load Capacity:

300kg

Warranty:

1 Year

Number Of Axes:

Tool Capacity:

Rapid Traverse Rate:

30m/min

Dimensions:

2,500mm X 2,000mm X 2,500mm

Highlight:

VMC540 CNC Vertical Center

12000RPM CNC Vertical Center

8000RPM vertical horizontal machining center

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

The wooden case，Tin trunk ,Other seaworthy packing

Delivery Time

45-60 days

Payment Terms

T/T,L/C,,Western Union

Supply Ability

45-60 days

VS1160 Heavy Duty Vertical Machining Center With BT40 Spindle Taper Hole 8000 12000RPM

Chat Now

Video

VMC850 CNC Turning Center With HT300 High Grade Casting 3 Phase 220V 380V 415V

Chat Now

Video

VS150 Heavy Duty CNC Vertical Center 3 Axes 30m/Min Rapid Traverse Rate 3 Phase

Chat Now

Video

HT300 High Grade Castings CNC Vertical Center For Precision Milling High Speed Spindle

Chat Now

86--15221502418

bear02@shanjmc.com

Chat Now

Product Description

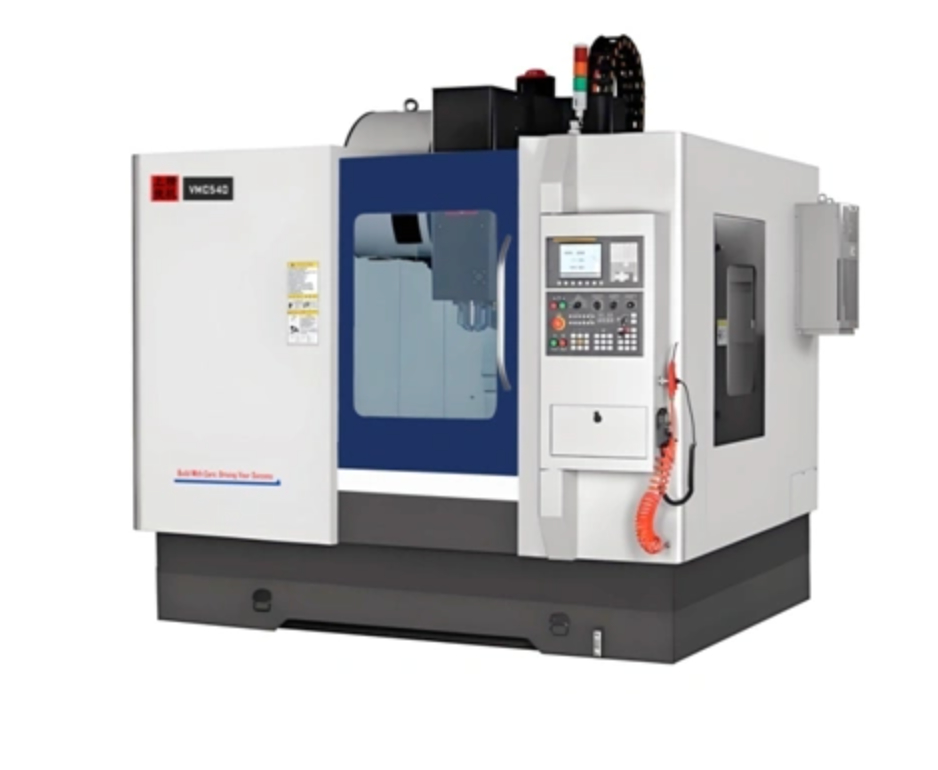

VMC540 Vertical Machining Center

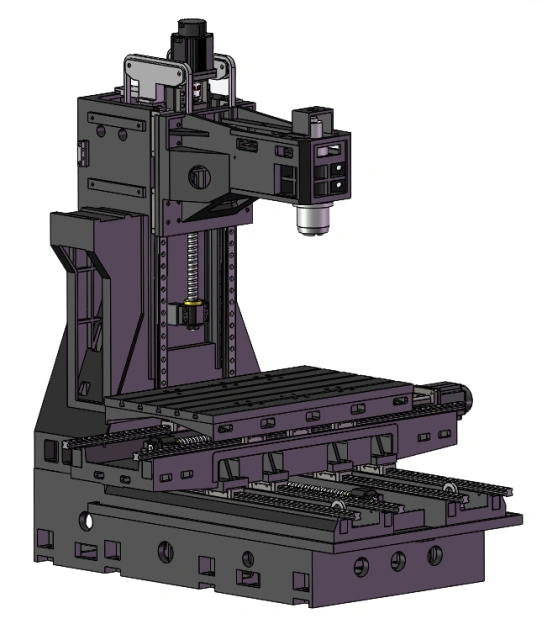

The VMC series machine tools feature a low center of gravity design with increased column span and widened Y-axis base for enhanced stability. Through finite element analysis (FEM), we've optimized the reinforcing rib structure of castings to achieve maximum bed strength. Special reinforcement on the Y-axis base and Z-axis column ensures long-term operational accuracy, while the bed structure is specifically designed for heavy cutting applications to improve work efficiency and tool life.

Key Features

HT300 high-grade casting material for superior strength and vibration resistance
Vibration aging and secondary tempering processes for stress elimination
Precision Grade P roller-type linear guides
Optimized structural design for heavy cutting applications
Enhanced stability through widened base and increased column span

Technical Specifications

Parameter	Value
Workbench size	700x400 mm
Workbench T-slot (number - size * pitch)	3-14x90 mm
Max. load capacity of the workbench	350KG
X-axis travel distance	510mm
Y-axis travel distance	410mm
Z-axis travel distance	500mm
Distance from spindle center to column guide rail	460mm
Spindle face to worktable surface distance	100-600 mm
Guide rail form	Precision Grade P roller-type linear guide
X,Y,Z rapid traverse speed	30m/min
Max. spindle speed	8000/12000 rpm
Spindle taper hole	BT40
Spindle motor power	7.5/11 KW
Tool magazine capacity	Umbrella-Type 12Tools
Machine dimensions (L x W x H)	1580x1580x1950mm
Standard weight	4500KG

Machine Tool Configuration

CNC system: FANUC, Siemens, SYNTEC, KND, Mitsubishi

High-quality spindle with imported bearings

THK, PMI, HIWIN, HTPM Precision Grade P roller-type linear guide

C3 grade precision ground ball screw

High-quality tool clamping cylinder

NSK, SKF, FAG P4 grade imported angular contact paired bearings

Precision high-rigidity coupling

Imported high-torque synchronous belts

Product Advantages

Enhanced Stability and Precision

The VMC540 features a low center of gravity design with widened Y-axis base and increased column span for superior stability. Finite element analysis optimizes reinforcing rib placement for maximum bed strength, ensuring consistent accuracy in heavy machining operations.

Heavy-Duty Performance

Constructed with HT300 high-grade casting material for exceptional deformation resistance and shock absorption. Vibration aging and secondary tempering processes eliminate stress for long-term dimensional stability in demanding applications.

Precision Components

Equipped with Precision Grade P roller-type linear guides, C3 grade ball screws, and high-rigidity couplings for smooth, accurate operation. High-quality spindle with imported bearings ensures reliable performance under heavy loads.

Versatile Configuration Options

Compatible with leading CNC systems including FANUC, Siemens, and Mitsubishi. Umbrella-type 12-tool magazine and BT40 spindle taper accommodate a wide range of machining applications.

About Shanjmc

Shanjmc is a leader in high-precision CNC machinery manufacturing, dedicated to advancing industrial capabilities with innovative solutions. Our VMC series exemplifies our commitment to quality and performance, featuring reinforced structures for superior stability and precision. Designed for heavy-duty applications, our machines enhance work efficiency and extend tool life.

We utilize HT300 high-grade casting material and advanced manufacturing processes to ensure exceptional machine quality. Our products integrate with leading CNC systems for seamless operation in diverse industrial environments.

Frequently Asked Questions

How do you guarantee machine quality?

We use high-grade materials like HT300 casting and implement rigorous quality control measures. All machines undergo vibration aging and secondary tempering to ensure long-term dimensional stability and precision.

What CNC systems are compatible?

The VMC540 is compatible with FANUC, Siemens, SYNTEC, KND, and Mitsubishi CNC systems, allowing for seamless integration into existing workflows.

What is the machine's weight capacity?

The workbench has a maximum load capacity of 350KG, with the machine itself weighing 4500KG for superior stability during operation.

Can the machine be customized?

Yes, we offer customization options including tool magazine capacity, spindle options, and CNC system selection to meet specific production requirements.
