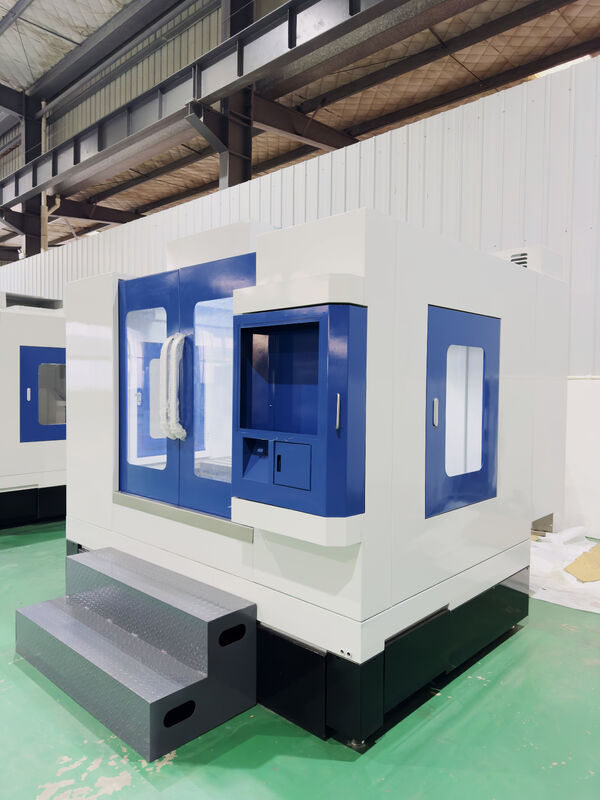

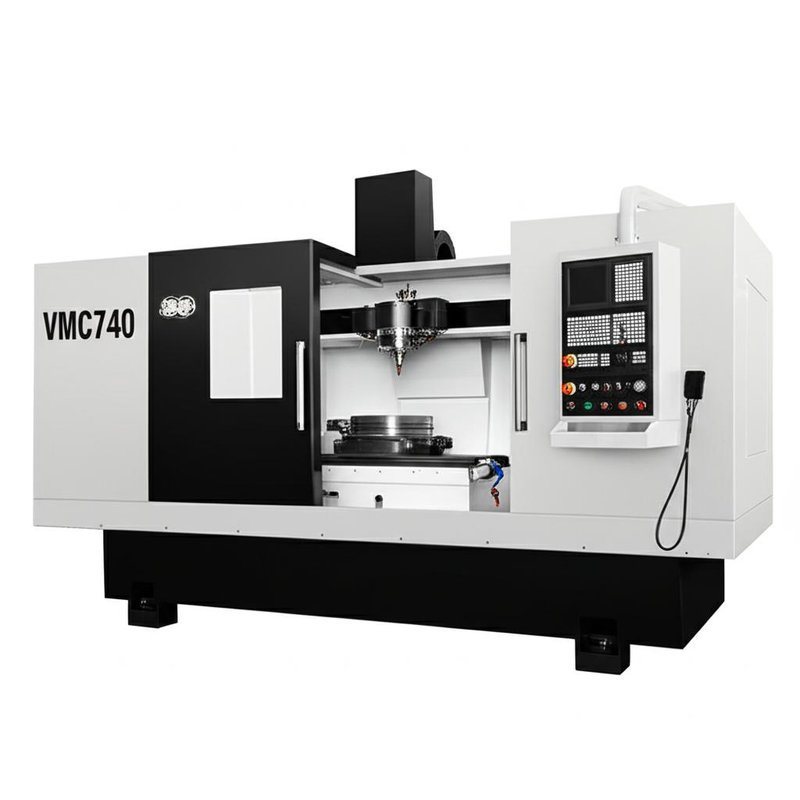

VMC740 CNC Vertical Center with HT300 High-Grade Casting Material 8000/12000 RPM Spindle Speed and BT40 Spindle Taper Hole

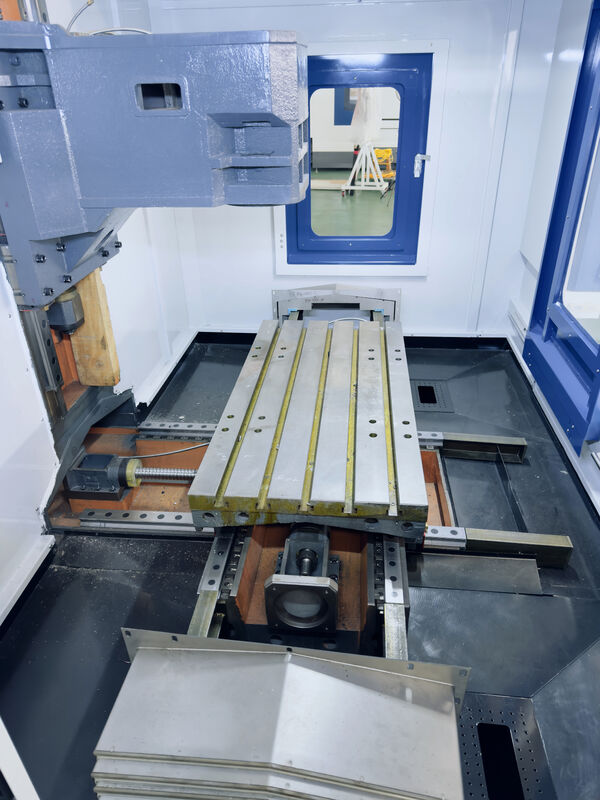

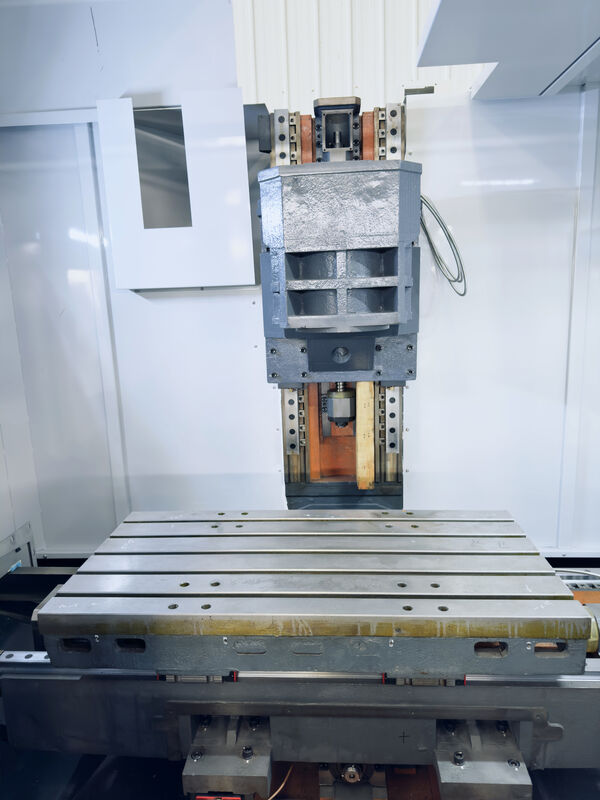

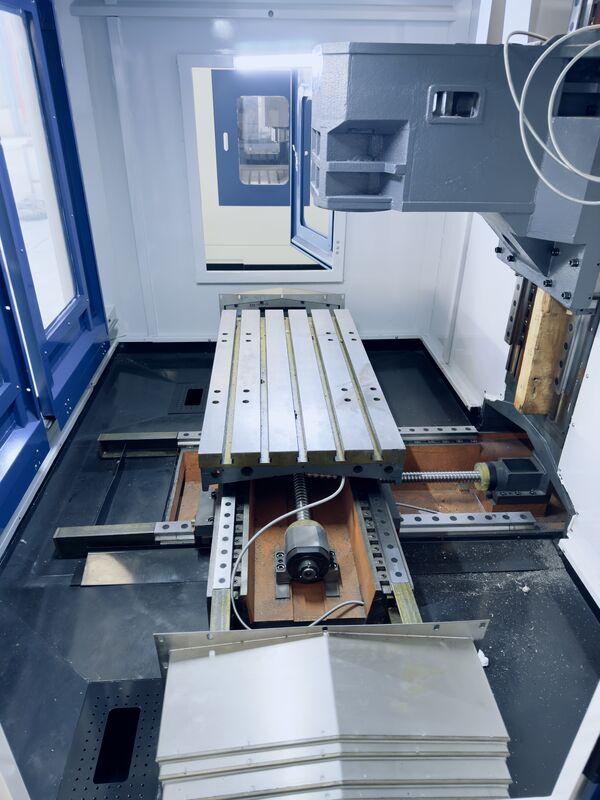

The VMC series machine tools feature a low center of gravity design with increased column span and widened Y-axis base for enhanced stability. Through finite element analysis (FEM), we've optimized the reinforcing rib structure of castings to achieve maximum bed strength. Special reinforcement on the Y-axis base and Z-axis column ensures long-term operational accuracy, while the robust bed structure supports heavy cutting applications, improving both work efficiency and tool life.
Casting Material
Machine tool castings utilize HT300 high-grade material, offering high strength, deformation resistance, and excellent shock absorption. After vibration aging and secondary tempering processes, stress is eliminated to ensure dimensional stability and durability for long-term precision maintenance.
Technical Specifications
| Machine Type |
VMC740 |
| Workbench size |
900x400 mm |
| Workbench T-slot (number - size * pitch) |
4-18x90 mm |
| Max. load capacity of the workbench |
500KG |
| X-axis travel distance |
710mm |
| Y-axis travel distance |
410mm |
| Z-axis travel distance |
500mm |
| Distance from spindle center to column guide rail |
480mm |
| Distance from spindle face to worktable surface |
110-610 mm |
| Guide rail form |
Precision Grade P roller-type linear guide |
| X,Y,Z fast movement speed |
30m/min |
| X axis Max. torque of motor |
45N.m |
| Y axis Max. torque of motor |
45N.m |
| Z axis Max. torque of motor |
55.8N.m |
| Max. spindle speed |
8000/12000 rpm |
| Spindle taper hole |
BT40 |
| Spindle motor power |
7.5/11 KW |
| Tool magazine capacity |
Disc-Type 20Tools |
| Max. weight of cutting tools |
8Kg |
| Air source pressure |
0.5-0.8 MPa |
| Machine size (L x W x H) |
1860x1600x2200mm |
| Standard weight |
5500KG |
Machine Tool Configuration
CNC system: FANUC, Siemens, SYNTEC, KND, Mitsubishi
High-quality spindle with imported bearings
THK, PMI, HIWIN, HTPM Precision Grade P roller-type linear guide
C3 grade precision ground ball screw
High-quality tool clamping cylinder
NSK, SKF, FAG P4 grade imported angular contact paired bearings
Precision high-rigidity coupling
Imported high-torque synchronous belts
High-quality disc-type/Umbrella-type ATC Tool magazine
Key Advantages
Enhanced Stability and Precision: The low center of gravity design with widened Y-axis base and increased column span ensures optimal balance and reduced vibration during operation.
Heavy-Duty Performance: HT300 high-grade casting material provides exceptional resistance to deformation and shock absorption, ideal for demanding machining tasks.
Precision Components: Equipped with precision-grade P roller-type linear guides, C3 grade ball screws, and high-rigidity couplings for superior accuracy.
Flexible Configuration: Compatible with multiple CNC systems (FANUC, Siemens, etc.) and offers various tool magazine options to suit different production needs.
About Shanjmc
Shanjmc is a leader in high-precision CNC machinery manufacturing, dedicated to advancing industrial capabilities with innovative solutions. Our VMC series exemplifies our commitment to quality and performance, featuring reinforced structures for superior stability and precision. We utilize HT300 high-grade casting material and advanced manufacturing processes to ensure exceptional machine durability and accuracy.
Our products are compatible with leading CNC systems including FANUC, Siemens, and Mitsubishi, allowing seamless integration into existing workflows. We provide comprehensive support and scalable solutions to meet the evolving needs of industrial operations.
Frequently Asked Questions
How do you guarantee quality?
We use high-grade materials like HT300 casting and implement rigorous quality control measures, including vibration aging and secondary tempering processes to ensure long-term dimensional stability.
What CNC systems are compatible?
The VMC740 is compatible with FANUC, Siemens, SYNTEC, KND, and Mitsubishi CNC systems for flexible integration.
What is the tool magazine capacity?
The standard configuration includes a disc-type tool magazine with 20-tool capacity, with options available for different capacities.
Can the machine handle heavy cutting?
Yes, the reinforced bed structure and high-grade components make the VMC740 ideal for heavy cutting applications while maintaining precision.
