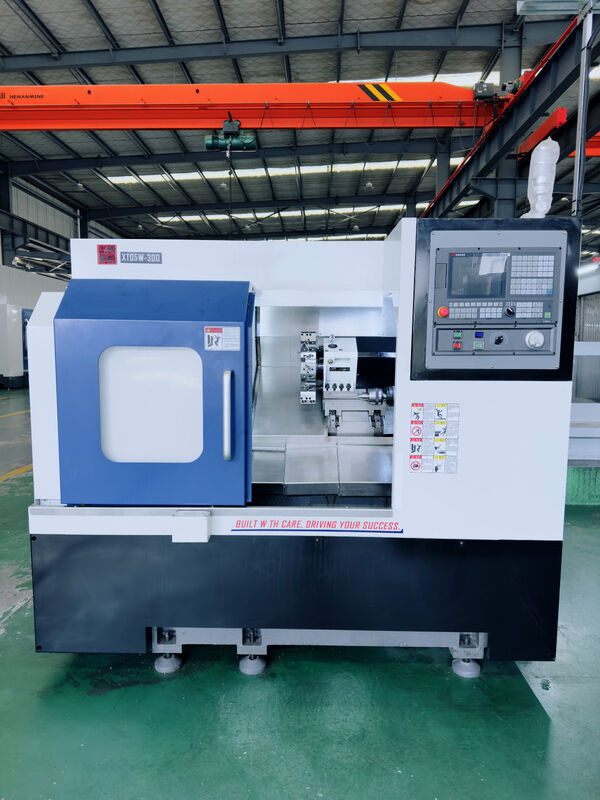

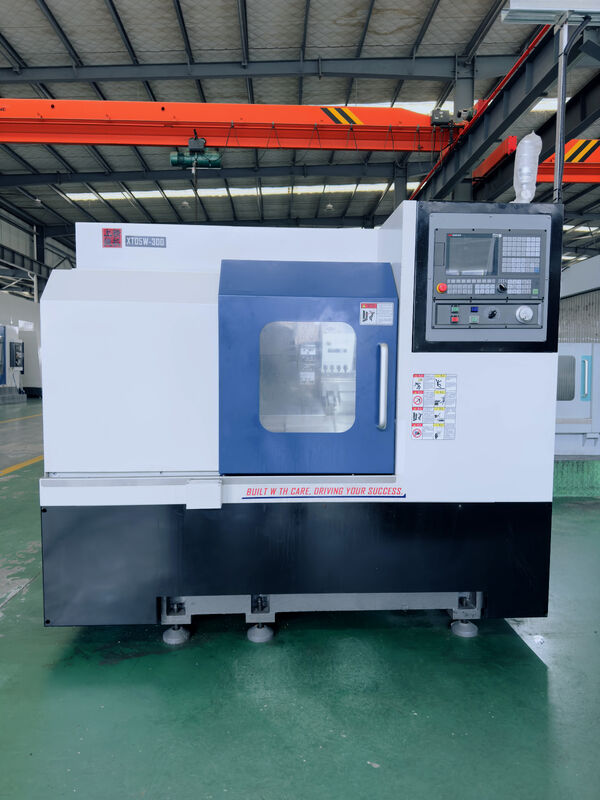

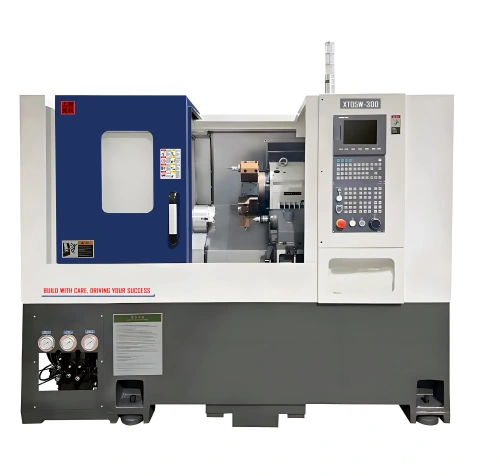

XT05W-300/500 High-Precision CNC Turning Center with 630mm Maximum Screw Diameter and 4500rpm Spindle Speeds
ShangJie PM's XT Series offers high-rigidity CNC lathes with slant-bed and servo turret configurations, tailored for precision turning in demanding industrial environments. These machines support multi-tool operation with fast indexing, making them ideal for machining complex shafts, valves, and mechanical fittings.
XT05W-300/500
XT/W Series - Servo tool turret, with tailstock (Optional servo power tool turret)
Key Features
- Slant-bed structure with servo turret for high-efficiency turning
- Rigid body and precise feed system for stable long-cycle operation
- Built for complex, high-volume part production across industries
Machine Characteristics
The XT series is a type of machine tool specially designed for heavy cutting of disc-shaped and short shaft parts. It features an integral bed with a widened, reinforced and low center of gravity design to reduce vibrations during heavy cutting.
The 45° inclined saddle layout in the X direction effectively resists forces in both horizontal and vertical directions, eliminates backlash in the lead screw, and ensures better geometric symmetry of the cutting tool during processing, reducing lateral loads on the tool. This results in longer tool life and improved processing accuracy.
By applying finite element analysis (FEM), the shape and position of the reinforcing ribs in the castings are optimized to achieve the best bed strength, making the bed structure more suitable for heavy cutting and extending the tool's service life.
Specifications
| Machine Type |
XT05W-300 |
XT05W-500 |
| Max. swing diameter |
550mm |
550mm |
| Max. machining diameter |
300mm |
300mm |
| Max. machining Length |
300mm |
500mm |
| Spindle nose |
A2-5 |
A2-5 |
| Spindle motor power |
5.5/7.5 KW |
5.5/7.5 KW |
| Spindle bore |
48mm |
48mm |
| Max. spindle speed |
6000r/min |
6000r/min |
| X axis |
215mm |
215mm |
| Z axis |
410mm |
610mm |
| X axis rapid feed speed |
25m/min |
25m/min |
| Z axis rapid feed speed |
25m/min |
25m/min |
| X axis Max. torque of motor |
25.2N.m |
25.2N.m |
| ZZ axis Max. torque of motor |
25.2N.m |
25.2N.m |
| Hydraulic clamping |
Standard |
| Chuck Size |
8" |
8" |

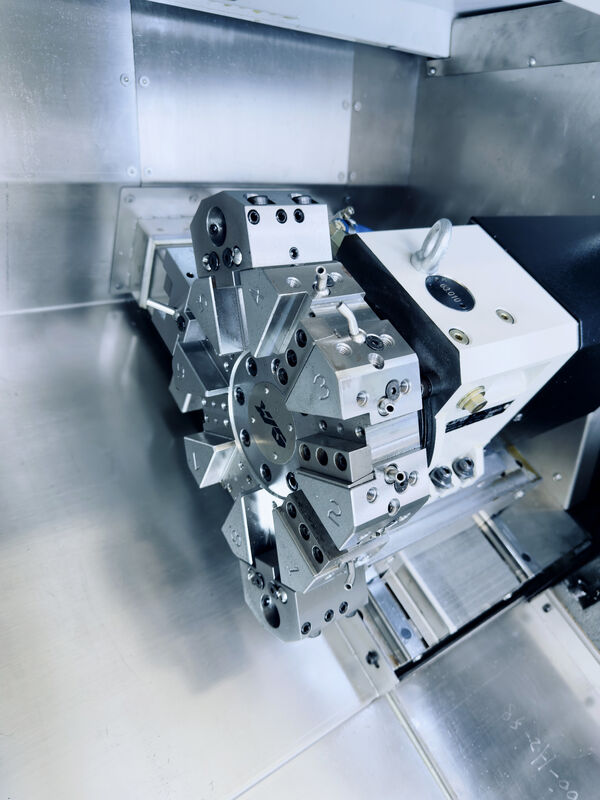

| Servo Tool Turret |
8/12 |
8/12 |
| OD tool size |
25x25mm |
25x25mm |
| Tailstock travel |
MT-4# 300mm |
MT-4# 300mm |
| Machine size (L x W x H) |
1800x1420x1650mm |
2000x1420x1650mm |
| Standard weight |
2300KG |
2600KG |
Expandable Functions
Turn-Mill
The entire XT series can be equipped with a servo power tool turret to achieve the processing capability of turning and milling compound functions.

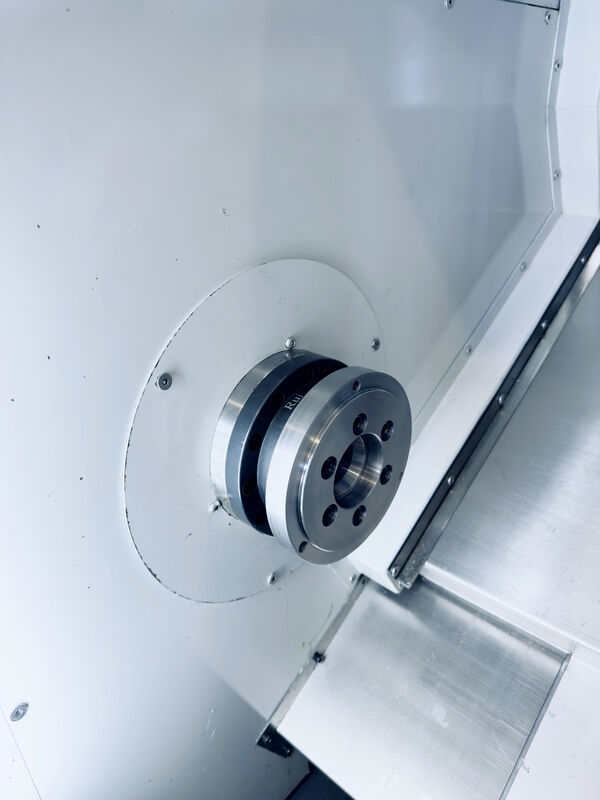

Programmable Tailstock
The machine can be configured with a servo turret or customized with multiple power heads to deliver high-end turning-milling capabilities. This versatile solution meets complex machining demands while minimizing customers' capital expenditure on equipment.
Frequently Asked Questions
Q: Manufacturer or trading company? Where is the company located?
A: We are a professional CNC lathe manufacturer located in Shiyan City, Hubei Province.
Q: How long have you been involved in this market?
A: We have 10 years of experience in the auto parts industry.
Q: Can you provide a product catalog?
A: Contact our business manager for the required product catalog via email.
Q: About the terms and conditions of payment.
A: We confirm payment terms (FOB, CIF, CNF) during quotation. For mass production, we typically require 30% advance payment with balance upon bill of lading, accepting T/T or L/C.
Q: Product after-sales service scope and service period?
A: We provide a one-year warranty and lifetime 24-hour technical support.
