XT06W-300/500

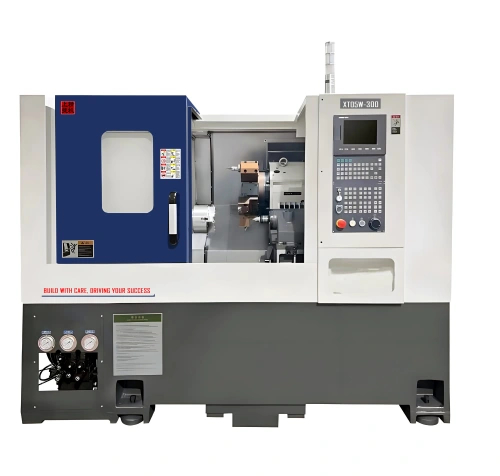

New High-Precision CNC Turning Center with 200mm X-Axis Travel and 1578mm Z Axis Travel for Heavy-Duty Machining
ShangJie PM's XT Series offers high-rigidity CNC lathes with slant-bed and servo turret configurations, tailored for precision turning in demanding industrial environments. These machines support multi-tool operation with fast indexing, making them ideal for machining complex shafts, valves, and mechanical fittings. The XT Series combines stable casting, advanced CNC control, and thermal distortion resistance, ensuring consistent accuracy during continuous operation. It is widely used in sectors such as aerospace components, industrial automation parts, and mechanical equipment.
- Slant-bed structure with servo turret for high-efficiency turning
- Rigid body and precise feed system for stable long-cycle operation
- Built for complex, high-volume part production across industries
XT/W Series - Servo tool turret, with tailstock (Optional servo power tool turret)
Machine Characteristics
The XT series is a type of machine tool specially designed for heavy cutting of disc-shaped and short shaft parts. It features an integral bed with a widened, reinforced and low center of gravity design to reduce vibrations during heavy cutting. The 45° inclined saddle layout in the X direction effectively resists forces in both horizontal and vertical directions, eliminates backlash in the lead screw, and ensures better geometric symmetry of the cutting tool during processing, reducing lateral loads on the tool. This results in longer tool life and improved processing accuracy.
By applying finite element analysis (FEM), the shape and position of the reinforcing ribs in the castings are optimized to achieve the best bed strength, making the bed structure more suitable for heavy cutting and extending the tool's service life.
Specifications
| Machine Type |
XT06W-300 |
XT06W-500 |
| Max. swing diameter |
550mm |
550mm |
| Max. machining diameter |
300mm |
300mm |
| Max. machining Length |
300mm |
500mm |
| Spindle nose |
A2-6 |
A2-6 |
| Spindle motor power |
7.5/11 KW |
7.5/11 KW |
| Spindle bore |
72mm |
72mm |
| Max. spindle speed |
6000r/min |
6000r/min |
| X axis |
220mm |
220mm |
| Z axis |
410mm |
610mm |
| X axis rapid feed speed |
30m/min |
30m/min |
| Z axis rapid feed speed |
30m/min |
30m/min |
| X axis Max. torque of motor |
34.5N.m |
34.5N.m |
| Z axis Max. torque of motor |
34.5N.m |
34.5N.m |
| Hydraulic clamping |
|
| Chuck Size |
10" |
10" |
| Servo Tool Turret |
8/12 |
8/12 |
| OD tool size |
25x25mm |
25x25mm |
| Tailstock travel |
MT-4# 300mm |
MT-4# 300mm |
| Machine size (L x W x H) |
1800x1420x1650mm |
2000x1420x1650mm |
| Standard weight |
2600KG |
3100KG |
Expandable functions of machine tools
Turn-Mill
The entire XT series can be equipped with a servo power tool turret to achieve the processing capability of turning and milling compound functions.
Programmable Tailstock
The machine can be configured with a servo turret or customized with multiple power heads to deliver high-end turning-milling capabilities. This versatile solution meets complex machining demands while minimizing customers' capital expenditure on equipment.
