XT06DS-300/500

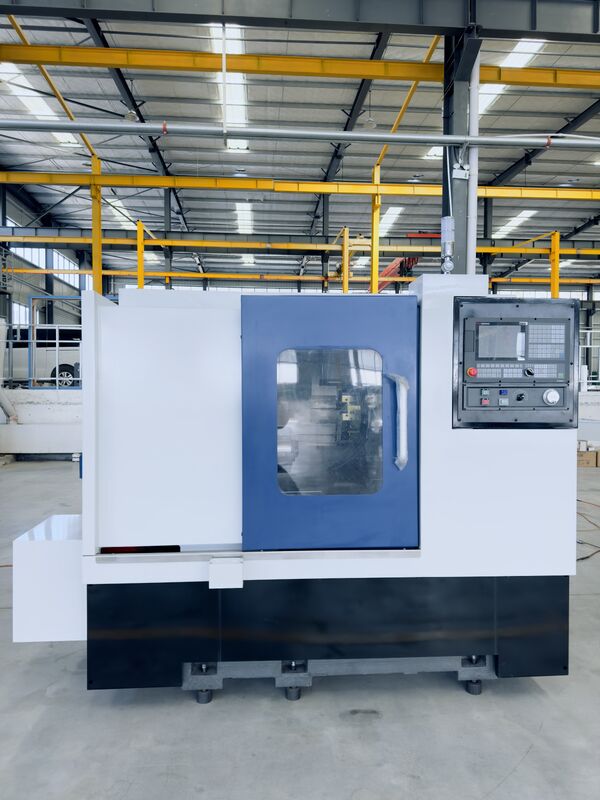

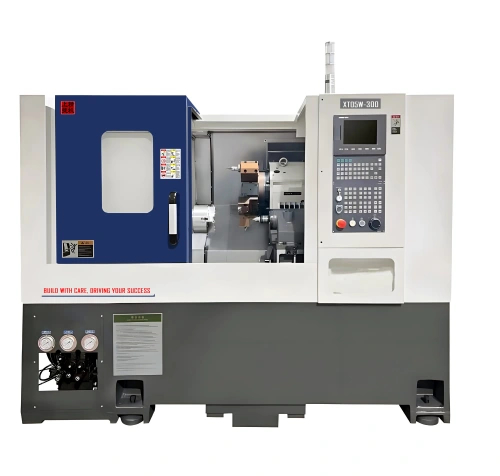

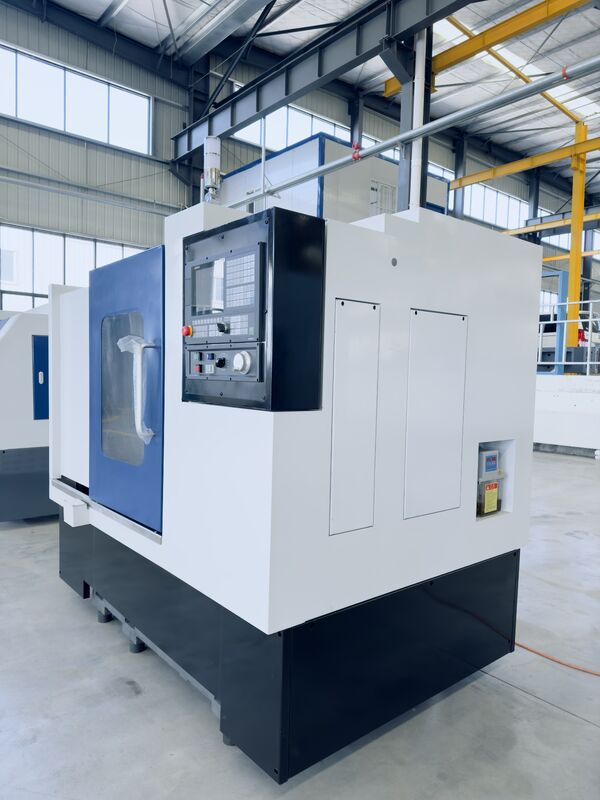

XT06DS-300/500 High-Rigidity CNC Turning Center with 45° Inclined Saddle 72mm Spindle Bore and 10-Inch Chuck Size
ShangJie PM's XT Series offers high-rigidity CNC lathes with slant-bed and servo turret configurations, tailored for precision turning in demanding industrial environments. These machines support multi-tool operation with fast indexing, making them ideal for machining complex shafts, valves, and mechanical fittings. The XT Series combines stable casting, advanced CNC control, and thermal distortion resistance, ensuring consistent accuracy during continuous operation.
- Slant-bed structure with servo turret for high-efficiency turning
- Rigid body and precise feed system for stable long-cycle operation
- Built for complex, high-volume part production across industries
XT/DS Series - Servo tool turret, dual spindles (Optional servo power tool turret)
Machine Characteristics
The XT series is a type of machine tool specially designed for heavy cutting of disc-shaped and short shaft parts. It features an integral bed with a widened, reinforced and low center of gravity design to reduce vibrations during heavy cutting. The 45° inclined saddle layout in the X direction effectively resists forces in both horizontal and vertical directions, eliminates backlash in the lead screw, and ensures better geometric symmetry of the cutting tool during processing, reducing lateral loads on the tool. This results in longer tool life and improved processing accuracy.
By applying finite element analysis (FEM), the shape and position of the reinforcing ribs in the castings are optimized to achieve the best bed strength, making the bed structure more suitable for heavy cutting and extending the tool's service life.
Specifications
| Machine Type |
XT06DS-300 |
XT06DS-500 |
| Max. swing diameter |
550mm |
550mm |
| Max. machining diameter |
300mm |
300mm |
| Max. machining Length |
300mm |
500mm |
| Spindle nose |
A2-6 |
A2-6 |
| Spindle motor power |
7.5/11 KW |
7.5/11 KW |
| Spindle bore |
72mm |
72mm |
| Max. spindle speed |
6000r/min |
6000r/min |
| Specification of the sub-spindle |
A2-4 |
A2-4 |
| X axis |
220mm |
220mm |
| Z axis |
410mm |
610mm |
| X axis rapid feed speed |
30m/min |
30m/min |
| Z axis rapid feed speed |
30m/min |
30m/min |
| X axis Max. torque of motor |
34.5N.m |
34.5N.m |
| Z axis Max. torque of motor |
34.5N.m |
34.5N.m |
| Hydraulic clamping |
10" Chuck Size |
| Servo Tool Turret |
8/12 |
8/12 |
| OD tool size |
25x25mm |
25x25mm |
| Tailstock travel |
MT-4# 300mm |
MT-4# 300mm |
| Machine size (L x W x H) |
1800x1420x1650mm |
2000x1420x1650mm |
| Standard weight |
2700KG |
3200KG |
Expandable functions of machine tools
Turn-Mill
The entire XT series can be equipped with a servo power tool turret to achieve the processing capability of turning and milling compound functions.
Programmable Tailstock
The machine can be configured with a servo turret or customized with multiple power heads to deliver high-end turning-milling capabilities. This versatile solution meets complex machining demands while minimizing customers' capital expenditure on equipment.
Frequently Asked Questions
Q: Manufacturer or trading company? Where is the company located?
A: We are a professional manufacturer of CNC lathes, located in Shiyan City, Hubei Province.
Q: How long have you been involved in this market?
A: We have been engaged in the auto parts industry for 10 years.
Q: Can you provide a product catalog?
A: Contact our business manager, we will send the product catalog you need to your mailbox.
Q: About the terms and conditions of payment.
A: When you quote, we will confirm with you the trading method (FOB, CIF, CNF, etc.). For mass production we typically require 30% advance payment with balance due upon bill of lading. Payment methods are primarily T/T, though L/C is also acceptable.
Q: Product after-sales service scope and service period?
A: We offer a one-year warranty and 24-hour lifetime technical support.
