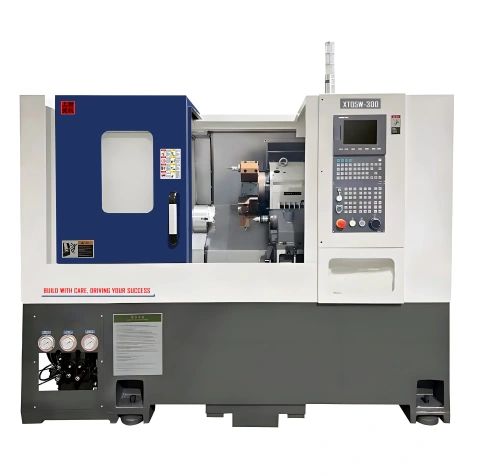

High Precision CNC Turning Center With 12 Station Turret 6000rpm Spindle Speed

High Precision CNC Turning Center With 12 Station Turret 6000rpm Spindle Speed
High Precision CNC Turning Center With 12 Station Turret 6000rpm Spindle Speed

Large Image :  High Precision CNC Turning Center With 12 Station Turret 6000rpm Spindle Speed

Product Details:
Place of Origin: China
Brand Name: ShangJie PM
Certification: CE ISO certification
Model Number: XT06ZY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time: 45-60 days
Payment Terms: T/T,L/C,,Western Union
Supply Ability: 45-60 days
Contact Now Chat Now

High Precision CNC Turning Center With 12 Station Turret 6000rpm Spindle Speed

Description
Turret Type: 12-station/8-station/4-station Automatic Grade: Automatic
Machining Capacity: Light Duty Spindle Speed: 6000/8000/10000 Rpm
Spindle Nose: A2-5 Spindle Motor Power: 11/15/18.5 KW
Application: Multi Purpose Metal Working Tailstock Quill Travel: 100/150/200 Mm
Key Selling Points: High-accuracy Spindle Bore Dia: Φ56mm
Tool Holder Size: 20x20mm Applicable Industries: Manufacturing Plant
Max Turning Diameter: 300/400/500 Mm Control System: Fanuc/Mitsubishi/Siemens
Rapid Traverse Rate: 15/20/25 M/min
Highlight:

High Precision CNC Turning Center

,

12 Station CNC Turning Center

,

6000rpm cnc lathe slant bed

XT06ZY High-Precision CNC Turning Center with 12-Station Turret 6000 rpm Spindle Speed and A2-5 Spindle Nose
ShangJie PM's XT Series offers high-rigidity CNC lathes with slant-bed and servo turret configurations, tailored for precision turning in demanding industrial environments. These machines support multi-tool operation with fast indexing, making them ideal for machining complex shafts, valves, and mechanical fittings.
The XT Series combines stable casting, advanced CNC control, and thermal distortion resistance, ensuring consistent accuracy during continuous operation. It is widely used in sectors such as aerospace components, industrial automation parts, and mechanical equipment.
  • Slant-bed structure with servo turret for high-efficiency turning
  • Rigid body and precise feed system for stable long-cycle operation
  • Built for complex, high-volume part production across industries
XT06ZY Model Details
XT/ZY Series — Y-axis tool turret, without tailstock. ZY series models use a motor-directly-driven gantry Y-axis tool turret, ensuring Y-axis positioning accuracy, milling rigidity, and long-term machine accuracy.
High Precision CNC Turning Center With 12 Station Turret 6000rpm Spindle Speed 0 High Precision CNC Turning Center With 12 Station Turret 6000rpm Spindle Speed 1
Technical Specifications
Machine Type XT06ZY
Max. swing diameter 600mm
Max. machining diameter 300mm
Max. machining Length -----
Spindle nose A2-6
Spindle motor power 7.5/11 KW
Spindle bore 72mm
Max. spindle speed 6000r/min
Interpolation of ZY-axis travel ±55mm
X axis 260mm
Z axis 380mm
X axis rapid feed speed 25m/min
Z axis rapid feed speed 25m/min
X axis Max. torque of motor 34.5N.m
Z axis Max. torque of motor 34.5N.m
Y axis Max. torque of motor 34.5N.m
Hydraulic clamping Yes
Chuck Size 8"
Servo Tool Turret 12
OD tool size 25x25mm
Tailstock travel ------
Machine size (L x W x H) 1950x1470x1800mm
Standard weight 3200KG
Expandable Functions
Fully enclosed stainless steel inner protective layout. The entire series employs a fully-enclosed stainless steel inner protective sheet metal design. Its scientific layout, precision engineering, and superior sealing ensure reliable waterproof and oil-resistant performance during operation.
High Precision CNC Turning Center With 12 Station Turret 6000rpm Spindle Speed 2
Frequently Asked Questions
Q: Manufacturer or trading company? Where is the company located?
A: We are a professional manufacturer of CNC lathes, located in Shiyan City, Hubei Province.
Q: How long have you been involved in this market?
A: We have been engaged in the auto parts industry for 10 years.
Q: Can you provide a product catalog?
A: Contact our business manager, we will send the product catalog you need to your mailbox.
Q: About the terms and conditions of payment.
A: When you quote, we will confirm with you the trading method (FOB, CIF, CNF, etc.). For mass production we typically require 30% advance payment with balance due upon bill of lading. Payment methods are primarily T/T, though L/C is also acceptable.
Q: Product after-sales service scope and service period?
A: We offer a one-year warranty and 24-hour lifetime technical support.
