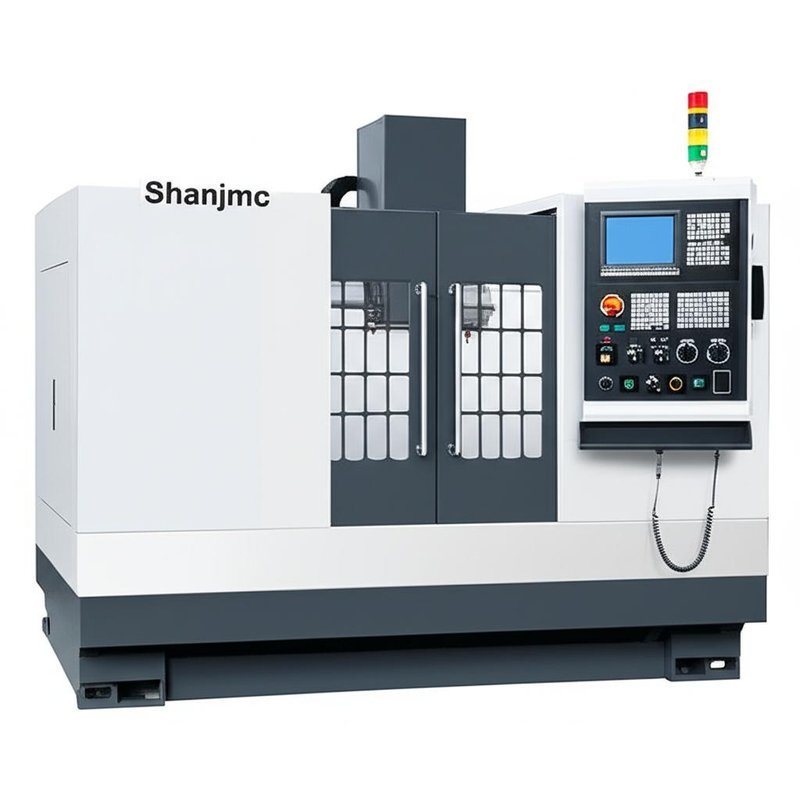

Shanjmc VMC850 CNC Turning Center with HT300 High-Grade Casting, 8000/12000 RPM Spindle Speed, and 24-Tool Magazine Capacity

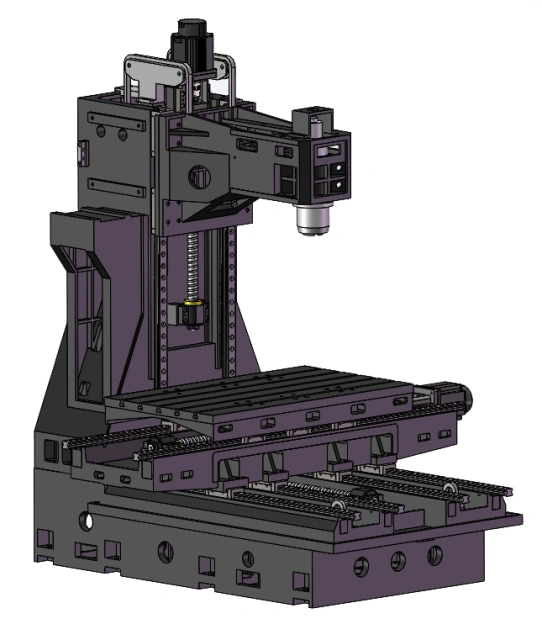

The VMC series machine tools adopt a low center of gravity design, increase the span of the column, and widen the width of the Y-axis base to enhance the stability of the machine tool. By applying finite element analysis (FEM), the shape and position of the reinforcing ribs of the castings are optimized to achieve the best strength of the bed.
The Shanjmc VMC850 is designed for industrial applications, featuring a low center of gravity and reinforced structures for enhanced stability and precision. Ideal for heavy cutting, it improves efficiency and tool life, making it a cost-effective solution for professional use.
Casting Material
The machine tool castings are made of HT300 high-grade material, which features high strength, strong resistance to deformation and excellent shock absorption capacity. After vibration aging and secondary tempering processes, the stress is eliminated, providing excellent dimensional stability and durability.
Specifications
| Machine Type | VMC850 |
|---|
| Workbench size | 1050x500 mm |
|---|
| Workbench T-slot (number - size * pitch) | 5-18x90 mm |
|---|
| Max. load capacity of the workbench | 600KG |
|---|
| X-axis travel distance | 810mm |
|---|
| Y-axis travel distance | 510mm |
|---|
| Z-axis travel distance | 520mm |
|---|
| Distance from the center of spindle to the guide rail of the column | 565mm |
|---|
| Distance from the spindle face to the worktable surface | 120-640 mm |
|---|
| Guide rail form | Precision Grade P roller-type linear guide |
|---|
| X,Y,Z fast movement speed | 30m/min |
|---|
| X axis Max. torque of motor | 55.8N.m |
|---|
| Y axis Max. torque of motor | 55.8N.m |
|---|
| Z axis Max. torque of motor | 69N.m |
|---|
| Max. spindle speed | 8000/12000 rpm |
|---|
| Spindle taper hole | BT40 |
|---|
| Spindle motor power | 11/15 KW |
|---|
| Tool magazine capacity | Disc-Type 24Tools |
|---|
| Max. weight of cutting tools | 8Kg |
|---|
| Air source pressure | 0.5-0.8 MPa |
|---|
| Machine size (L x W x H) | 2000x1900x2450mm |
|---|
| Standard weight | 6500KG |
|---|
Machine Tool Configuration
CNC system: FANUC, Siemens, SYNTEC, KND, Mitsubishi
High-quality spindle, imported bearings
THK, PMI, HIWIN, HTPM Precision Grade P roller-type linear guide
C3 grade precision ground ball screw
High-quality tool clamping cylinder
NSK, SKF, FAG P4 grade imported angular contact paired bearings
Precision high-rigidity coupling
Imported high-torque synchronous belts
High-quality disc-type/Umbrella-type ATC Tool magazine
Product Advantages
1. Enhanced Stability and Precision
The Shanjmc VMC850 is engineered with a low center of gravity design, ensuring optimal balance and reduced vibration. Its widened Y-axis base and increased column span enhance stability for precise machining under heavy loads.
2. Heavy-Duty Performance
Built for demanding tasks with HT300 high-grade casting material offering exceptional deformation resistance and shock absorption. Vibration aging and secondary tempering ensure long-term stability.
3. Scalable Design for Growth
With a 24-tool capacity and 8000/12000 rpm spindle speed, it handles diverse tasks. Compatible with leading CNC systems for seamless integration into existing workflows.
4. Cost-Effective Solution
Combines stability, performance, and scalability for professional use, delivering strong return on investment through efficient and precise operations.
5. Advanced Construction
Features precision-grade P roller-type linear guides, C3 grade ball screws, and high-rigidity couplings for industrial-grade performance.
About Us
Shanjmc is a leader in high-precision CNC machinery manufacturing, dedicated to advancing industrial capabilities with innovative solutions. Our VMC850 CNC Turning Center exemplifies our commitment to quality and performance, designed for heavy-duty applications with enhanced stability and precision.
We use HT300 high-grade casting material and integrate advanced technologies like finite element analysis (FEM) to optimize machine design. Our products are compatible with leading CNC systems including FANUC, Siemens, SYNTEC, KND, and Mitsubishi.
FAQ
Who are we?
We are Hubei Shangjie Precision Machinery Manufacturing Co., Ltd., a leading manufacturer of CNC turning centers specializing in high-quality industrial machinery.
How can we guarantee quality?
Through high-grade materials, advanced manufacturing processes, and rigorous quality control including vibration aging and secondary tempering.
What can you buy from us?
CNC turning centers, CNC vertical centers, and CNC horizontal turning centers designed for industrial machining tasks.
Why choose us over other suppliers?
Our CNC turning centers offer unmatched stability and precision with scalable solutions that grow with your business.
What services do we provide?
Tailor-made automation solutions, seamless CNC system integration, and ongoing technical support.
Can I customize the VMC850?
Yes, the VMC850 is designed for customization to meet specific business requirements and workflow integration.
What is the delivery time?
Delivery times vary based on location and customization needs, with estimated timelines provided upon order confirmation.
