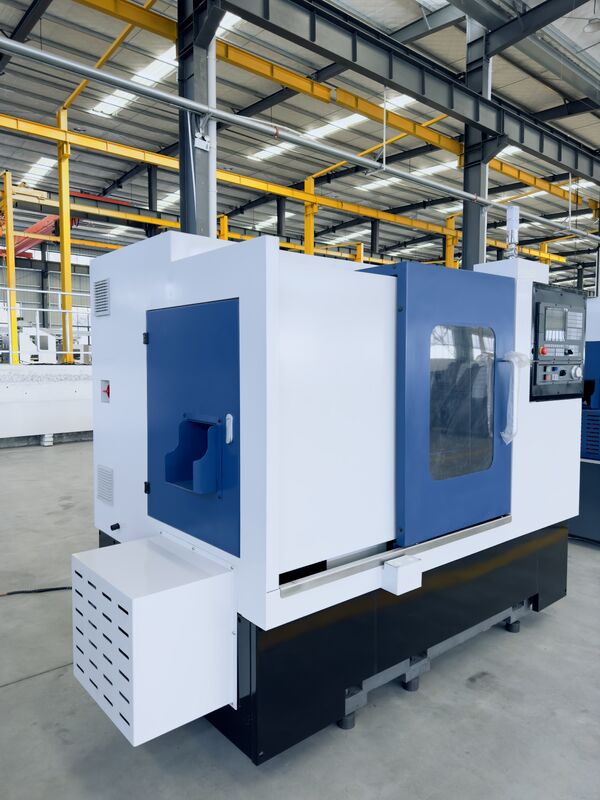

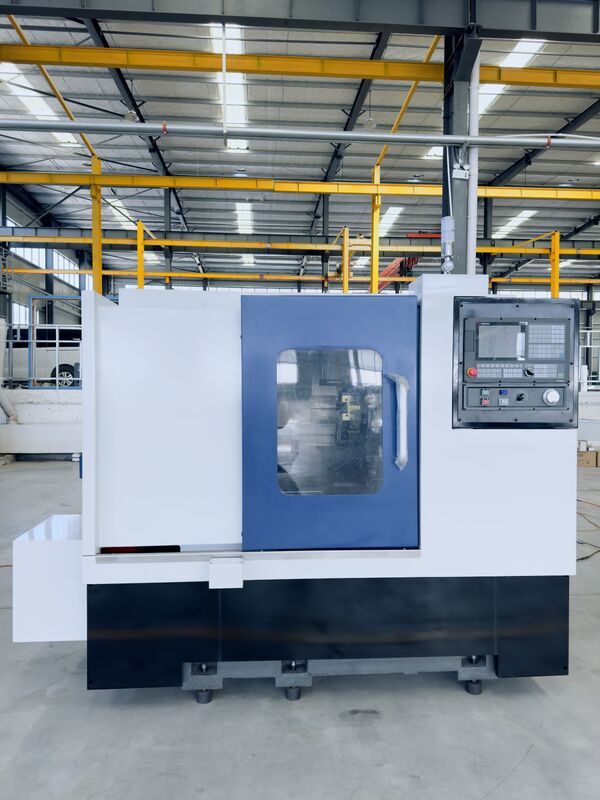

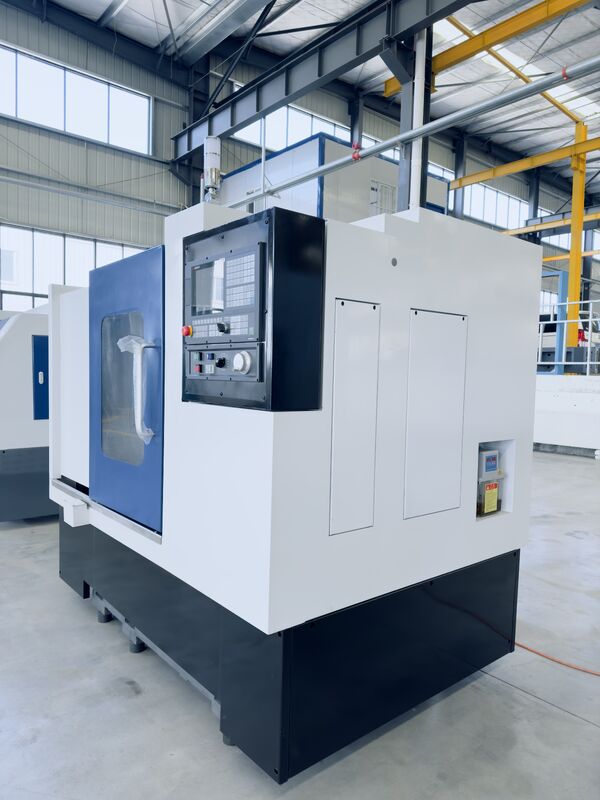

CNC Mill Turn Center With 400mm X Axis Travel 1000mm Turning Length 450mm Z Axis Travel

CNC Mill Turn Center With 400mm X Axis Travel 1000mm Turning Length 450mm Z Axis Travel

1000mm cnc mill turn center

400mm cnc mill turn center

450mm horizontal turning center

Place of Origin:

China

Brand Name:

ShangJie PM

Certification:

CE ISO certification

Model Number:

XT06-360

Document:

CNC Turning Center.pdf

Chat Now
Request A Quote
CNC Mill Turn Center With 400mm X Axis Travel 1000mm Turning Length 450mm Z Axis Travel CNC Mill Turn Center With 400mm X Axis Travel 1000mm Turning Length 450mm Z Axis Travel CNC Mill Turn Center With 400mm X Axis Travel 1000mm Turning Length 450mm Z Axis Travel CNC Mill Turn Center With 400mm X Axis Travel 1000mm Turning Length 450mm Z Axis Travel CNC Mill Turn Center With 400mm X Axis Travel 1000mm Turning Length 450mm Z Axis Travel
Product Details
X Axis Travel:
220mm
Axis:
3
Z Axis Travel:
510mm
X Axis Travel:
400mm
Turret Capacity:
12 Tools
Max Turning Length:
1000mm
Coolant System:
Oil-based
Main Motor Power:
15 Kw
Condition:
New
Machining Capacity:
Light Duty
Max Turning Diameter:
500mm
Z Axis Trave:
450mm
Type Of Tailstock:
Hydraulic *LM
Tool Post Stations:
8, 6
Spindle Bore Diameter:
ø80
Highlight:

1000mm cnc mill turn center

,

400mm cnc mill turn center

,

450mm horizontal turning center

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time
45-60 days
Payment Terms
T/T,L/C,,Western Union
Supply Ability
45-60 days
RELATED PRODUCTS
Good price PT36 2 Axes CNC Turning Center 5000kg Weight 500mm Z Axis For Precision Machining online Video

PT36 2 Axes CNC Turning Center 5000kg Weight 500mm Z Axis For Precision Machining

Chat Now
Good price PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder online

PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder

Chat Now
Good price Light Duty CNC Turning Center With 380V 220V 4 Milling Heads For Multi Purpose Metal Working online Video

Light Duty CNC Turning Center With 380V 220V 4 Milling Heads For Multi Purpose Metal Working

Chat Now
Good price Horizontal High Precision Slant Bed CNC Lathe Machine With 350mm Tailstock Travel online Video

Horizontal High Precision Slant Bed CNC Lathe Machine With 350mm Tailstock Travel

Chat Now
CONTACT US
86--15221502418
bear02@shanjmc.com
Chat Now
Product Description
High-Precision CNC Turning Center with 400mm X Axis Travel 1000mm Max Turning Length and 450mm Z Axis Travel
ShangJie PM's XT Series offers high-rigidity CNC lathes with slant-bed and servo turret configurations, tailored for precision turning in demanding industrial environments. These machines support multi-tool operation with fast indexing, making them ideal for machining complex shafts, valves, and mechanical fittings. The XT Series combines stable casting, advanced CNC control, and thermal distortion resistance, ensuring consistent accuracy during continuous operation.
XT06-360 Features

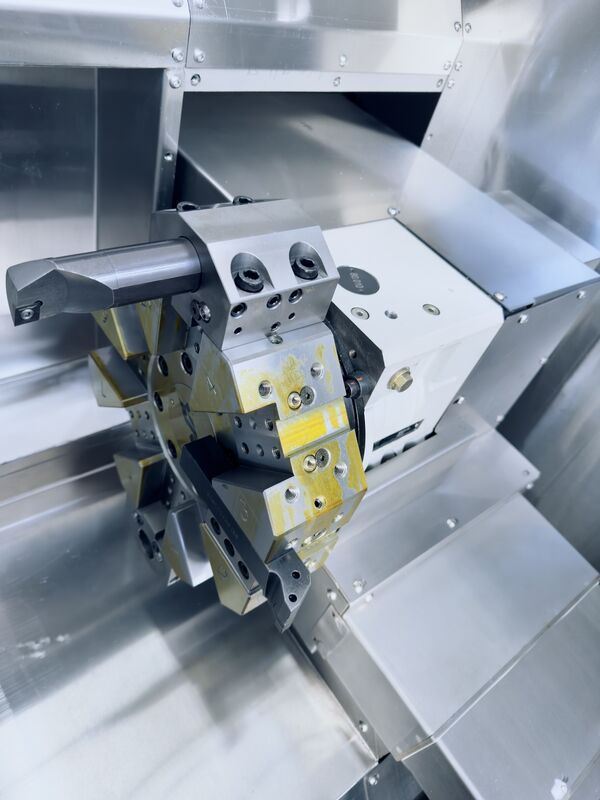

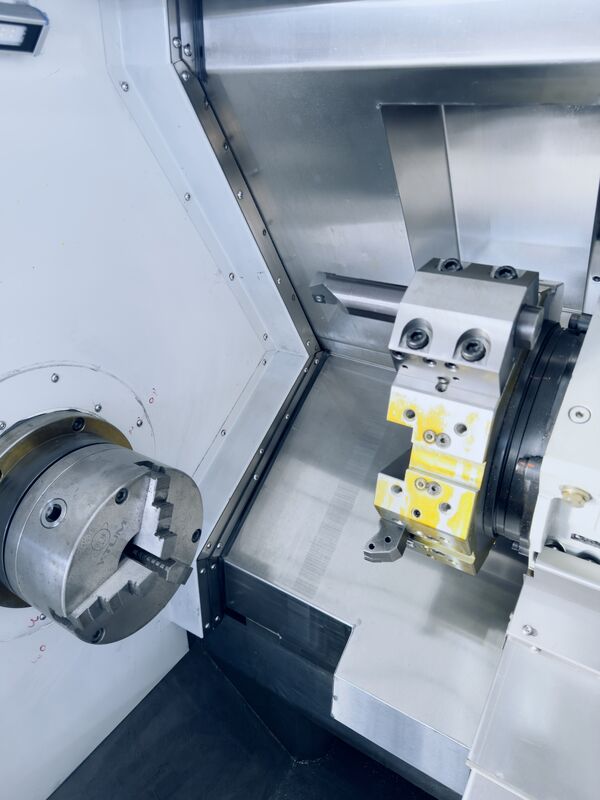

  • Slant-bed structure with servo turret for high-efficiency turning
  • Rigid body and precise feed system for stable long-cycle operation
  • Built for complex, high-volume part production across industries
  • Servo tool turret, without tailstock (Optional servo power tool turret to achieve Turn-Mill function)
Machine Characteristics
The XT series is a type of machine tool specially designed for heavy cutting of disc-shaped and short shaft parts. It features an integral bed with a widened, reinforced and low center of gravity design to reduce vibrations during heavy cutting. The 45° inclined saddle layout in the X direction effectively resists forces in both horizontal and vertical directions, eliminates backlash in the lead screw, and ensures better geometric symmetry of the cutting tool during processing.
By applying finite element analysis (FEM), the shape and position of the reinforcing ribs in the castings are optimized to achieve the best bed strength, making the bed structure more suitable for heavy cutting and extending the tool's service life.
Specifications
Machine Type XT06
Max. swing diameter 550mm
Max. machining diameter 300mm
Spindle nose A2-6
Spindle motor power 7.5/11 KW
Spindle bore 72mm
Max. spindle speed 4000r/min
X axis 220mm
Z axis 360mm
X axis rapid feed speed 30m/min
Z axis rapid feed speed 30m/min
X axis Max. torque of motor 34.5N.m
Z axis Max. torque of motor 34.5N.m
Hydraulic clamping 10"
Servo Tool Turret 8/12/16
OD tool size 25x25mm
Machine size (L x W x H) 1800x1420x1650mm
Standard weight 2350KG
Expandable Functions
Turn-Mill
CNC Mill Turn Center With 400mm X Axis Travel 1000mm Turning Length 450mm Z Axis Travel 0
The entire XT series can be equipped with a servo power tool turret to achieve the processing capability of turning and milling compound functions.
Programmable Tailstock
CNC Mill Turn Center With 400mm X Axis Travel 1000mm Turning Length 450mm Z Axis Travel 1
The machine can be configured with a servo turret or customized with multiple power heads to deliver high-end turning-milling capabilities. This versatile solution meets complex machining demands while minimizing customers' capital expenditure on equipment.

Frequently Asked Questions
Q: Manufacturer or trading company? Where is the company located?
A: We are a professional CNC lathe manufacturer located in Shiyan City, Hubei Province.
Q: How long have you been involved in this market?
A: We have 10 years of experience in the auto parts industry.
Q: Can you provide a product catalog?
A: Contact our business manager for the required product catalog via email.
Q: About the terms and conditions of payment.
A: We confirm payment terms (FOB, CIF, CNF) during quotation. For mass production, we typically require 30% advance payment with balance upon bill of lading, accepting T/T or L/C.
Q: Product after-sales service scope and service period?
A: We provide a one-year warranty and lifetime 24-hour technical support.
