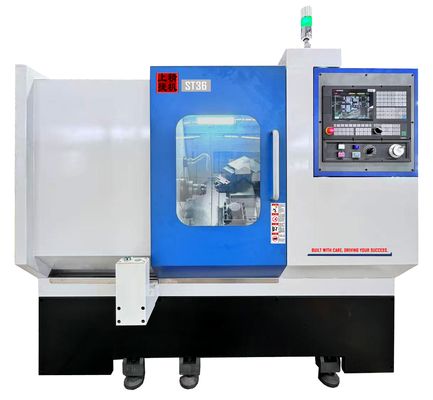

High-precision CNC Turning Center with 105mm Spindle Bore 400mm X Travel and 410mm Z Travel for Multi Purpose Metal Working
The ET Series by ShangJie PM features compact, flat-bed CNC lathes with gang tool setups, engineered for small part precision turning. These machines are ideal for mass production of standard components such as screws, pins, bushings, and sleeves. Designed with high-speed linear guides and stable casting structures, the ET Series offers fast tool changes and reduced machining time. The flat-bed configuration ensures ease of maintenance and high operational efficiency, making it a reliable solution for fastener production, electronics machining, and hardware industries.
- Compact flat-bed layout for streamlined small-part machining
- Gang tool system improves productivity and shortens cycle time
- Suited for standard parts manufacturing in large volumes
ET04W / ET05W Specifications
| Machine Type |
ET04W / ET05W |
| Max. swing diameter |
530mm |
| Max. machining diameter on the saddle |
120mm |
| Max. bar through diameter |
36mm |
| Spindle nose |
A2-4 / A2-5 |
| Spindle motor power |
5.5-12 KW |
| Spindle bore |
45mm |
| Max. spindle speed |
6000r/min |
| X1 axis |
500mm |
| X2 axis |
375mm |
| Z1 axis |
370mm |
| Z2 axis |
900mm |
| X axis rapid feed speed |
25m/min |
| Z axis rapid feed speed |
25m/min |
| X axis Max. torque of motor |
18N.m |
| Z axis Max. torque of motor |
18N.m |
| Pneumatic clamping |
Spring collet |
| Hydraulic clamping Chuck Size |
5" |
| Machine size (L x W x H) |
2400x1350x1600mm |
| Standard weight |
3500KG |
Machine Characteristics
The ET04W / ET05W model adopts a structure where the main spindle is fixed and the auxiliary spindle moves. Both the main and auxiliary spindles adopt permanent magnet synchronous electric spindles, which have high power and strong force, without belt transmission. This enhances the dimensional stability and surface finish of the workpiece during high-speed turning. The spindle guide rails use large-sized and high-precision roller linear guides, which not only ensure the machining rigidity of the machine tool but also improve its machining accuracy.
Combined with the corresponding power head, it realizes the turning and milling compound function, enabling complex parts of customers to be processed in one clamping, completing all machining procedures.
- Automatic feeding, unattended mode
ET04W and ET04P models can be equipped with an automatic feeder. With automatic feeding, all processing procedures on both sides of the parts can be completed automatically, achieving unattended operation and enhancing processing efficiency while reducing labor costs.
Frequently Asked Questions
Q: Manufacturer or trading company? Where is the company located?
A: We are a professional manufacturer of CNC lathes, located in Shiyan City, Hubei Province.
Q: How long have you been involved in this market?
A: We have been engaged in the auto parts industry for 10 years.
Q: Can you provide a product catalog?
A: Contact our business manager, we will send the product catalog you need to your mailbox.
Q: About the terms and conditions of payment.
A: When you quote, we will confirm with you the trading method (FOB, CIF, CNF, etc.). For mass production we typically require 30% advance payment with balance due upon bill of lading. Payment methods are primarily T/T, though L/C is also acceptable.
Q: Product after-sales service scope and service period?
A: We offer a one-year warranty and 24-hour lifetime technical support.
