CNC530 CNC Drilling And Milling Machine With HT300 Material 35mm P Level Precision Linear Guide

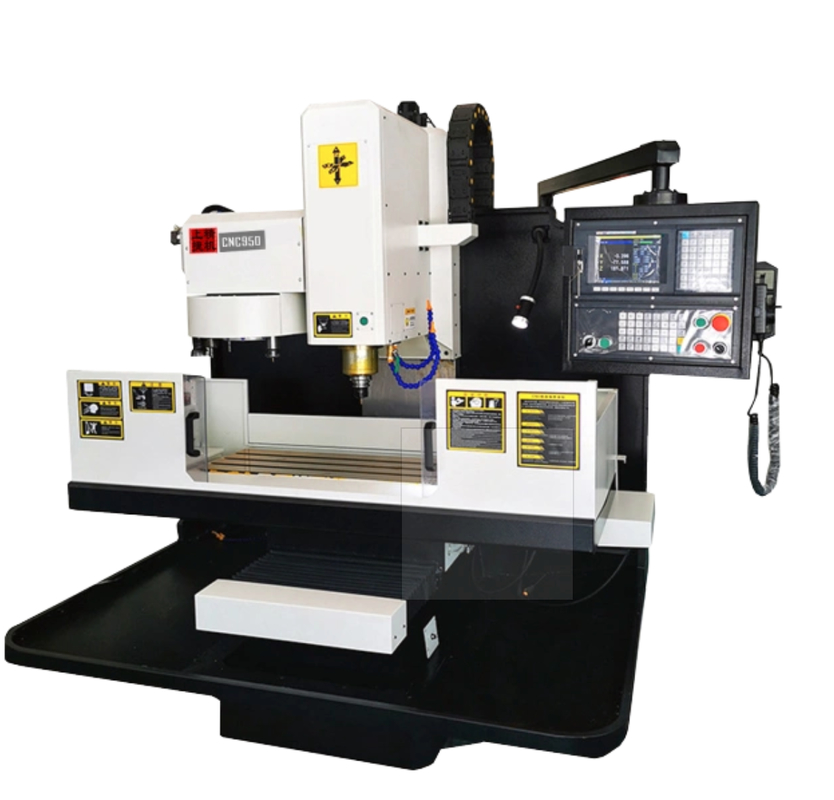

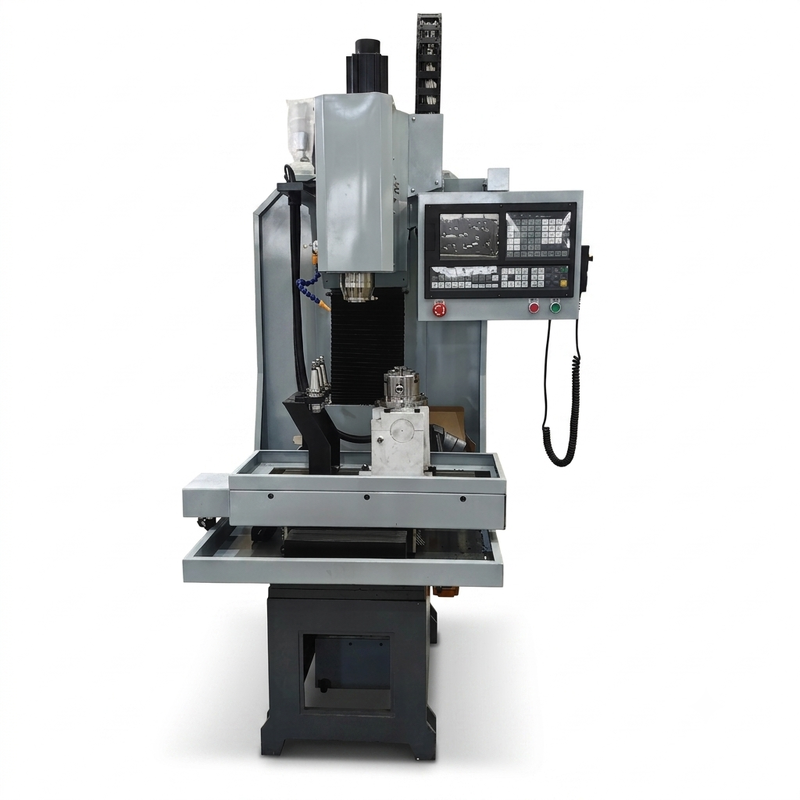

Large Image : CNC530 CNC Drilling And Milling Machine With HT300 Material 35mm P Level Precision Linear Guide

Product Details:

Place of Origin:	China
Certification:	CE ISO certification

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time:	45-60 days
Payment Terms:	T/T,L/C,,Western Union
Supply Ability:	45-60 days

Contact Now Chat Now

CNC530 CNC Drilling And Milling Machine With HT300 Material 35mm P Level Precision Linear Guide

Description

X-Axis Travel:	800 Mm	Spindle Speed:	8000 RPM
Table Size:	1000x500 Mm	Tool Capacity:	24
Weight:	3500 Kg	Y-Axis Travel:	500 Mm
Max Load Capacity:	500 Kg	Number Of Axes:	3
Z-Axis Travel:	500 Mm	Power Requirement:	380V, 50Hz, 3 Phase
Accuracy:	0.01 Mm	Rapid Traverse Rate:	15 M/min
Control System:	CNC	Type:	Vertical
Highlight:	CNC530 cnc drilling and milling machine , HT300 cnc drilling and milling machine , 8000RPM cnc drill mill

CNC530 CNC Drilling and Milling Machine with HT300 Material 35mm P-level Precision Linear Guides and Ø40 C-level Ground Ball Screws

The CNC series of numerically controlled drilling and milling machines feature an integral bed structure made of HT300 material, offering exceptional rigidity and stability. Equipped with 35mm P-level precision linear guides and Ø40 C-level ground ball screws, with 6 slides on the X-axis, these machines achieve three-axis linkage for precise drilling and milling of complex parts.

Technical Specifications

Machine Model	CNC530
Workbench size	900x280mm
Workbench T-slot (number - size * pitch)	3-14x80mm
Max. load capacity of the workbench	150 Kg
Distance from spindle face to worktable surface	100-600mm
X-axis travel distance	500mm
Y-axis travel distance	300mm
Z-axis travel distance	500mm
X,Y,Z fast movement speed	25 m/min
X axis Max. torque of motor	25.2N.m
Y axis Max. torque of motor	25.2N.m
Z axis Max. torque of motor	34.5N.m
Spindle taper hole	BT30 / BT40
Spindle motor power	3.7/5.5 KW
Max. spindle speed	8000rpm
Tool magazine capacity	(Optional) Umbrella-Type 12Tools
Air source pressure	0.5-0.8 MPa
Max. weight of cutting tools	8KG
Machine size (L x W x H)	155x155x210 cm
Standard weight	1.8 T

Machine Tool Configuration

High-quality spindle, imported bearings

PMI, HIWIN, HTPM 35,45 Precision Grade P roller-type linear guide

PMI, HIWIN C3 grade precision ground ball screw

Precision high-rigidity coupling

Company Advantages

Our company has passed quality system certification and possesses independent design and R&D capabilities. Equipped with large gantry machining centers, five-axis machining centers, vertical machining centers and other large-scale processing equipment, we maintain a dedicated after-sales service team committed to providing convenient and efficient support.

Product Advantages

Our machine tools utilize HT300 high-grade castings with ergonomic design. We select imported functional components to ensure long-term dimensional stability without deformation. With complete in-house processes from casting to sheet metal fabrication, we maintain strict quality control throughout production.

Application Scenarios

Ideal for mechanical processing fields including automotive manufacturing, aerospace, and shipbuilding industries.

Frequently Asked Questions

Who are we?

We are Hubei Shangjie Precision Machinery Manufacturing Co., Ltd., a leading manufacturer of precision surface grinding machines designed for industrial applications. Our PSG/GM Series machines are renowned for their high rigidity and precision, crafted from HT300 high-grade material to ensure stable performance over long-term use.

How can we guarantee quality?

We guarantee quality through rigorous manufacturing processes and the use of premium materials like HT300 high-grade castings. Our machines undergo vibration stress relief and secondary tempering processes to eliminate internal stress, ensuring consistent precision and durability.

What can you buy from us?

You can purchase a wide range of industrial equipment including precision surface grinding machines, CNC turning centers, machining centers, and tailor-made automation solutions. Our products are designed to meet the demanding needs of professional and bulk ordering applications.

Why should you buy from us not from other suppliers?

Choosing Shanjmc means investing in unmatched precision and rigidity. Our machines feature advanced components like hydrostatic spindles and ultra-precision linear guides, ensuring high efficiency and long service life. We offer scalable designs to adapt to future demands, providing long-term value and reliability.

What services can we provide?

We offer comprehensive services including product customization, bulk ordering options, and tailor-made automation solutions. Our team is dedicated to enhancing your production efficiency and expanding your operational capabilities.

Can I customize this product for my business?

Yes, our precision surface grinding machines can be customized to meet your specific business needs. We offer scalable designs that accommodate various workbench sizes and load capacities, ensuring that our machines fit seamlessly into your production environment.

Do you offer wholesale pricing?

Absolutely, we provide competitive wholesale pricing for bulk orders. Our precision surface grinding machines are ideal for grinding machine manufacturers looking to expand their capabilities and meet growing market demands, offering long-term value and reliability.
