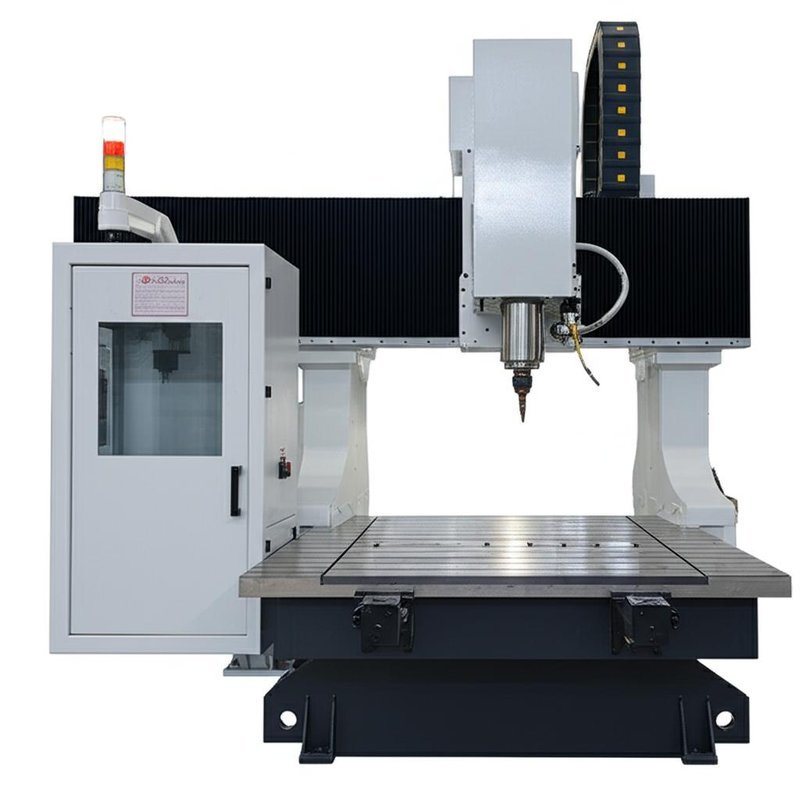

3 Axes CNC Gantry Drilling And Milling Machine With BT40 BT50 Spindle Taper

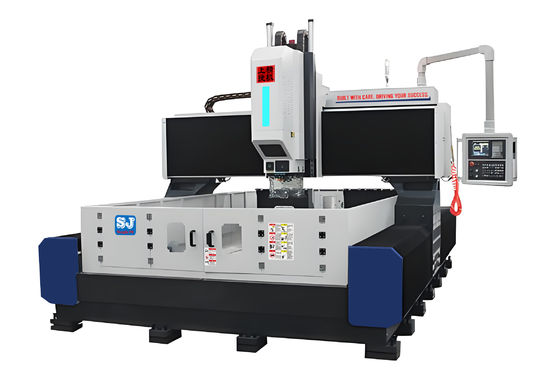

Large Image : 3 Axes CNC Gantry Drilling And Milling Machine With BT40 BT50 Spindle Taper

Product Details:

Place of Origin:	China
Certification:	CE ISO certification
Model Number:	GNC2010--GNC4025

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time:	45-60 days
Payment Terms:	T/T,L/C,,Western Union
Supply Ability:	45-60 days

Contact Now Chat Now

3 Axes CNC Gantry Drilling And Milling Machine With BT40 BT50 Spindle Taper

Description

Type:	Gantry	Function:	Drilling And Milling
Application:	Metalworking	Table Size:	Large
Power Source:	Electric	Number Of Axes:	3
Spindle Power:	High	Control System:	CNC
Accuracy:	High	Automation:	Fully Automated
Max. Load Capacity:	Heavy
Highlight:	3 Axes drilling and milling machine , Gantry drilling and milling machine , BT50 cnc mill drill

CNC Gantry Drilling and Milling Machine with BT40/BT50 Spindle Taper and Disc-Type 24Tools for High-Efficiency Processing

ShangJie PM's CNC gantry drilling and milling machines are engineered for high-efficiency processing of large metal plates, flanges, machine frames, and structural steel components. These machines combine high-speed drilling, tapping, and milling operations in a single setup, featuring a robust double-column gantry structure for exceptional rigidity and stability.

Integrated drilling and milling capabilities boost throughput and reduce setup requirements
Gantry structure enhances rigidity for heavy-duty metal processing
Ideal for plate machining, base frames, and industrial steel components

The GNC series CNC gantry boring and milling machine inherits the strong rigidity and high stability of gantry machines, equipped with high-rigidity spindles and advanced CNC systems. It efficiently performs drilling, tapping, and milling operations on large workpieces, plates, wind turbine flanges, discs, and rings.

Efficient drilling, tapping and milling of large workpieces

Standard water filtration system for U-drill processing

Specifications

Machine Model	GNC1020	GNC1616	GNC2016	GNC2020	GNC2525	GNC3020	GNC4025
Workbench size	2000x1000mm	1600x1600mm	2000x1600mm	2000x2000mm	2500x2500mm	3000x2000mm	4000x2500mm
Max. drilling diameter	Φ50	Φ75	Φ75	Φ90	Φ90	Φ90	Φ90
Max. tapping diameter	M24	M32	M32	M36	M36	M36	M36
Spindle taper hole	BT40	BT50 (with center water outlet function)
Spindle motor power	7.5/11 KW	11/15 KW	15/22 KW
Max. spindle speed	3000rpm
X-axis travel distance	2000mm	1600mm	2000mm	2000mm	2500mm	3000mm	4000mm
Y-axis travel distance	1000mm	1600mm	1600mm	2000mm	2500mm	2000mm	2500mm
Z-axis travel distance	600mm
Machine size (L x W x H) cm	350x180x220	300x380x220	350x380x220	350x420x220	400x460x220	4500x420x220	550x460x220
Standard weight	9 T	13 T	16 T	25 T	28 T	28 T	35 T

Machine Tool Configuration

High-quality spindle, imported bearings

PMI, HIWIN, HTPM 35,45 Precision Grade P roller-type linear guide

PMI, HIWIN C3 grade precision ground ball screw

High-quality tool clamping cylinder

NSK, SKF, FAG P4 grade imported angular contact paired bearings

Precision high-rigidity coupling

Imported high-torque synchronous belts

High-quality disc-type/Umbrella-type ATC Tool magazine

Standard chain-type chip conveyor and small iron chip cart

About Us

Shanjmc is a leader in precision machinery manufacturing, dedicated to advancing industrial standards with our innovative solutions. Our machines are crafted from high-grade materials, ensuring strength, resistance to deformation, and excellent shock absorption. We prioritize quality and performance, equipping our machines with advanced features from renowned brands.

Our scalable designs accommodate various workbench sizes and load capacities, making them ideal for diverse industrial applications. We are committed to providing reliable, high-performance equipment that meets growing industrial demands.

FAQ

Who are we?

We are Hubei Shangjie Precision Machinery Manufacturing Co., Ltd., a leading manufacturer of precision surface grinding machines designed for industrial applications.

How can we guarantee quality?

We guarantee quality through rigorous manufacturing processes and premium materials. Our machines undergo vibration stress relief and secondary tempering to ensure consistent precision and durability.

What can you buy from us?

Precision surface grinding machines, CNC turning centers, machining centers, and tailor-made automation solutions designed for professional and bulk ordering applications.

Why choose us over other suppliers?

Our machines feature advanced components ensuring high efficiency and long service life. We offer scalable designs providing long-term value and reliability.
