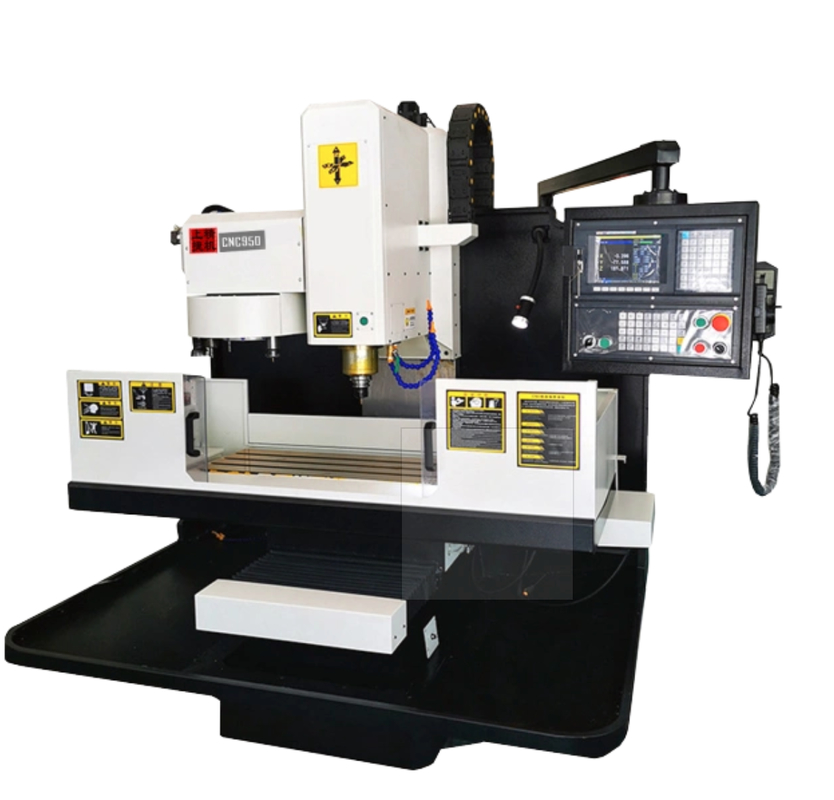

CNC950 CNC Drilling Milling Machine With 35mm P Level Precision Linear Guides 8000rpm

CNC950 CNC Drilling Milling Machine With 35mm P Level Precision Linear Guides 8000rpm
CNC950 CNC Drilling Milling Machine With 35mm P Level Precision Linear Guides 8000rpm
CNC950 CNC Drilling Milling Machine With 35mm P Level Precision Linear Guides 8000rpm CNC950 CNC Drilling Milling Machine With 35mm P Level Precision Linear Guides 8000rpm CNC950 CNC Drilling Milling Machine With 35mm P Level Precision Linear Guides 8000rpm

Large Image :  CNC950 CNC Drilling Milling Machine With 35mm P Level Precision Linear Guides 8000rpm

Product Details:
Place of Origin: China
Certification: CE ISO certification
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time: 45-60 days
Payment Terms: T/T,L/C,,Western Union
Supply Ability: 45-60 days
Contact Now Chat Now

CNC950 CNC Drilling Milling Machine With 35mm P Level Precision Linear Guides 8000rpm

Description
X-Axis Travel: 800 Mm Spindle Speed: 8000 RPM
Table Size: 1000x500 Mm Tool Capacity: 24
Weight: 3500 Kg Y-Axis Travel: 500 Mm
Max Load Capacity: 500 Kg Number Of Axes: 3
Z-Axis Travel: 500 Mm Power Requirement: 380V, 50Hz, 3 Phase
Accuracy: 0.01 Mm Rapid Traverse Rate: 15 M/min
Control System: CNC Type: Vertical
Highlight:

CNC950 CNC Drilling Milling Machine

,

8000rpm CNC Drilling Milling Machine

,

800mm cnc drill mill

CNC950 CNC Drilling and Milling Machine with 35mm P-level Precision Linear Guides, Ø40 C-level Ground Ball Screws, and 8000rpm Spindle Speed
The CNC series of numerically controlled drilling and milling machines feature an integral bed structure made of HT300 material, offering exceptional rigidity and stability. Equipped with 35mm P-level precision linear guides and Ø40 C-level ground ball screws, with 6 slides on the X-axis, these machines deliver precise three-axis linkage for complex part processing.
Technical Specifications
Specification Value
Machine Model CNC950
Workbench size 1500x420mm
Workbench T-slot (number - size * pitch) 3-18x90mm
Max. load capacity of the workbench 350 Kg
Distance from the spindle face to the worktable surface 120-620mm
X-axis travel distance 900mm
Y-axis travel distance 500mm
Z-axis travel distance 500mm
X,Y,Z fast movement speed 25 m/min
X axis Max. torque of motor 25.2N.m
Y axis Max. torque of motor 25.2N.m
Z axis Max. torque of motor 34.5N.m
Spindle taper hole BT40
Spindle motor power 7.5/11 KW
Max. spindle speed 8000rpm

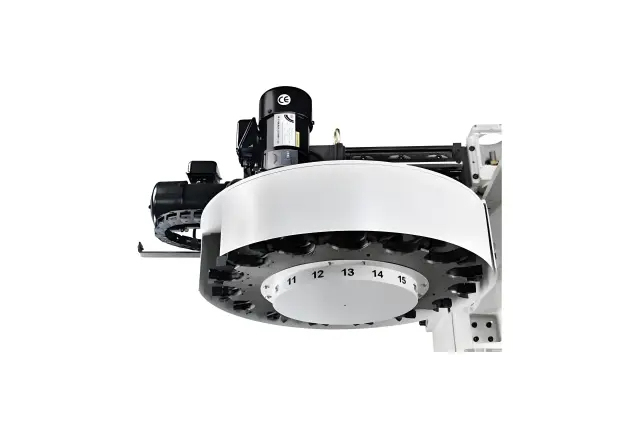

Tool magazine capacity (Optional) Umbrella-Type 12Tools
Air source pressure 0.5-0.8 MPa
Max. weight of cutting tools 8KG
Machine size (L x W x H) 195x170x220 cm
Standard weight 2.3 T
Machine Tool Configuration
CNC950 CNC Drilling Milling Machine With 35mm P Level Precision Linear Guides 8000rpm 0
High-quality spindle, imported bearings
CNC950 CNC Drilling Milling Machine With 35mm P Level Precision Linear Guides 8000rpm 1
PMI, HIWIN, HTPM 35,45 Precision Grade P roller-type linear guide
CNC950 CNC Drilling Milling Machine With 35mm P Level Precision Linear Guides 8000rpm 2
PMI, HIWIN C3 grade precision ground ball screw
CNC950 CNC Drilling Milling Machine With 35mm P Level Precision Linear Guides 8000rpm 3
Precision high-rigidity coupling
About Shanjmc

Shanjmc is a leader in precision machinery manufacturing, dedicated to advancing industrial standards with our innovative solutions. Our CNC series machines are crafted from HT300 high-grade material, ensuring high strength, resistance to deformation, and excellent shock absorption. We prioritize quality and performance, equipping our machines with advanced features like precision linear guides and ground ball screws from renowned brands.

Our scalable designs accommodate various workbench sizes and load capacities, making them ideal for diverse industrial applications. At Shanjmc, we are committed to providing reliable, high-performance equipment that meets the growing demands of manufacturers.

Contact Shanjmc today to upgrade your industrial operations with our precision CNC machines.
Frequently Asked Questions
Q: Who are we?
A: We are Hubei Shangjie Precision Machinery Manufacturing Co., Ltd., a leading manufacturer of precision CNC machines designed for industrial applications.
Q: How can we guarantee quality?
A: We guarantee quality through rigorous manufacturing processes and the use of premium materials like HT300 high-grade castings.
Q: What can you buy from us?
A: You can purchase a wide range of industrial equipment including CNC machines, machining centers, and tailor-made automation solutions.
Q: Why should you buy from us?
A: Choosing Shanjmc means investing in unmatched precision and rigidity with advanced components ensuring high efficiency and long service life.
Q: Can I customize this product for my business?
A: Yes, our machines can be customized to meet your specific business needs with scalable designs.
Q: Do you offer wholesale pricing?
A: Absolutely, we provide competitive wholesale pricing for bulk orders.
