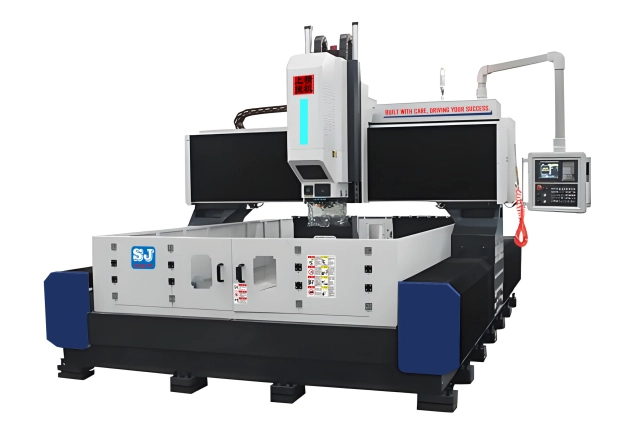

GNC Series Gantry CNC Mill Drill Machine With BT40 BT50 Spindle Taper Fully Automated

GNC Series Gantry CNC Mill Drill Machine With BT40 BT50 Spindle Taper Fully Automated
GNC Series Gantry CNC Mill Drill Machine With BT40 BT50 Spindle Taper Fully Automated
GNC Series Gantry CNC Mill Drill Machine With BT40 BT50 Spindle Taper Fully Automated GNC Series Gantry CNC Mill Drill Machine With BT40 BT50 Spindle Taper Fully Automated GNC Series Gantry CNC Mill Drill Machine With BT40 BT50 Spindle Taper Fully Automated

Large Image :  GNC Series Gantry CNC Mill Drill Machine With BT40 BT50 Spindle Taper Fully Automated

Product Details:
Place of Origin: China
Certification: CE ISO certification
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time: 45-60 days
Payment Terms: T/T,L/C,,Western Union
Supply Ability: 45-60 days
Contact Now Chat Now

GNC Series Gantry CNC Mill Drill Machine With BT40 BT50 Spindle Taper Fully Automated

Description
Type: Gantry Function: Drilling And Milling
Application: Metalworking Table Size: Large
Power Source: Electric Number Of Axes: 3
Spindle Power: High Control System: CNC
Accuracy: High Automation: Fully Automated
Max. Load Capacity: Heavy
Highlight:

3 Axes cnc mill drill machine

,

Fully Automated cnc mill drill machine

,

cnc mill drill machine

GNC Series CNC Gantry Drilling and Milling Machine with BT40/BT50 Spindle Taper High-Rigidity Spindles and Advanced CNC Systems

The GNC series CNC gantry boring and milling machine combines the strong rigidity and high stability of gantry machines with high-rigidity spindles and advanced CNC systems. Designed for efficient drilling, tapping, and milling of large workpieces including plates, wind turbine flanges, discs, and rings.

GNC Series Gantry CNC Mill Drill Machine With BT40 BT50 Spindle Taper Fully Automated 0
Key Features
  • Cost-effective solution for large workpiece processing
  • Fully CNC operation improves processing quality and efficiency
  • Reduces labor costs through automated operation
  • Standard water filtration system for U-drill processing
  • High-rigidity spindle with advanced bearing technology
GNC Series Gantry CNC Mill Drill Machine With BT40 BT50 Spindle Taper Fully Automated 1
Technical Specifications
Machine Model GNC1020 GNC1616 GNC2016 GNC2020 GNC2525 GNC3020 GNC4025
Workbench size 2000x1000mm 1600x1600mm 2000x1600mm 2000x2000mm 2500x2500mm 3000x2000mm 4000x2500mm
Max. drilling diameter Φ50 Φ75 Φ75 Φ90 Φ90 Φ90 Φ90
Max. tapping diameter M24 M32 M32 M36 M36 M36 M36
Spindle taper hole BT40 BT50 (with center water outlet function)
Spindle motor power 7.5/11 KW 11/15 KW 15/22 KW
Max. spindle speed 3000rpm
X-axis travel distance 2000mm 1600mm 2000mm 2000mm 2500mm 3000mm 4000mm
Y-axis travel distance 1000mm 1600mm 1600mm 2000mm 2500mm 2000mm 2500mm
Z-axis travel distance 600mm
XYZ repeat positioning accuracy 0.015/2000mm 0.02/2000mm
Machine size (L x W x H) cm 350x180x220 300x380x220 350x380x220 350x420x220 400x460x220 4500x420x220 550x460x220
Standard weight 9 T 13 T 16 T 25 T 28 T 28 T 35 T
Machine Tool Configuration
GNC Series Gantry CNC Mill Drill Machine With BT40 BT50 Spindle Taper Fully Automated 2
CNC system: KND, SYNTEC
GNC Series Gantry CNC Mill Drill Machine With BT40 BT50 Spindle Taper Fully Automated 3
High-quality spindle, imported bearings
GNC Series Gantry CNC Mill Drill Machine With BT40 BT50 Spindle Taper Fully Automated 4
PMI, HIWIN, HTPM 35,45 Precision Grade P roller-type linear guide
GNC Series Gantry CNC Mill Drill Machine With BT40 BT50 Spindle Taper Fully Automated 5
PMI, HIWIN C3 grade precision ground ball screw
GNC Series Gantry CNC Mill Drill Machine With BT40 BT50 Spindle Taper Fully Automated 6
High-quality tool clamping cylinder
GNC Series Gantry CNC Mill Drill Machine With BT40 BT50 Spindle Taper Fully Automated 7
NSK, SKF, FAG P4 grade imported angular contact paired bearings
GNC Series Gantry CNC Mill Drill Machine With BT40 BT50 Spindle Taper Fully Automated 8
Precision high-rigidity coupling
GNC Series Gantry CNC Mill Drill Machine With BT40 BT50 Spindle Taper Fully Automated 9
Imported high-torque synchronous belts
GNC Series Gantry CNC Mill Drill Machine With BT40 BT50 Spindle Taper Fully Automated 10
High-quality disc-type/Umbrella-type ATC Tool magazine
GNC Series Gantry CNC Mill Drill Machine With BT40 BT50 Spindle Taper Fully Automated 11
Standard chain-type chip conveyor with small iron chip cart
About Shanjmc

Shanjmc is a leader in precision machinery manufacturing, dedicated to advancing industrial standards with innovative solutions. Our machines are crafted from HT300 high-grade material, ensuring high strength, resistance to deformation, and excellent shock absorption. We prioritize quality and performance, equipping our machines with advanced features like hydrostatic spindles and ultra-precision linear guides from renowned brands.

Contact Shanjmc today to upgrade your industrial operations with our precision machinery. Let's achieve unmatched precision and performance!

Frequently Asked Questions
Who are we?

We are Hubei Shangjie Precision Machinery Manufacturing Co., Ltd., a leading manufacturer of precision surface grinding machines designed for industrial applications.

How can we guarantee quality?

We guarantee quality through rigorous manufacturing processes and premium materials. Our machines undergo vibration stress relief and secondary tempering to ensure consistent precision and durability.

What can you buy from us?

Precision surface grinding machines, CNC turning centers, machining centers, and tailor-made automation solutions designed for professional and bulk ordering applications.

Why choose Shanjmc?

Our machines feature advanced components ensuring high efficiency and long service life. We offer scalable designs to adapt to future demands, providing long-term value and reliability.

Can I customize this product?

Yes, our machines can be customized to meet specific business needs with scalable designs that accommodate various workbench sizes and load capacities.

Do you offer wholesale pricing?

Absolutely, we provide competitive wholesale pricing for bulk orders, ideal for manufacturers looking to expand their capabilities.
