CNC740 CNC Drilling Milling Machine With HT300 35mm P Level Precision Linear Guides

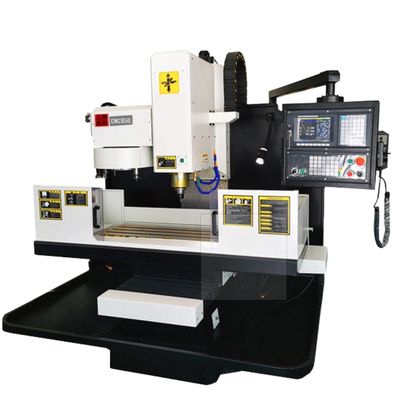

Large Image : CNC740 CNC Drilling Milling Machine With HT300 35mm P Level Precision Linear Guides

Product Details:

Place of Origin:	China
Certification:	CE ISO certification

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time:	45-60 days
Payment Terms:	T/T,L/C,,Western Union
Supply Ability:	45-60 days

Contact Now Chat Now

CNC740 CNC Drilling Milling Machine With HT300 35mm P Level Precision Linear Guides

Description

X-Axis Travel:	800 Mm	Spindle Speed:	8000 RPM
Table Size:	1000x500 Mm	Tool Capacity:	24
Weight:	3500 Kg	Y-Axis Travel:	500 Mm
Max Load Capacity:	500 Kg	Number Of Axes:	3
Z-Axis Travel:	500 Mm	Power Requirement:	380V, 50Hz, 3 Phase
Accuracy:	0.01 Mm	Rapid Traverse Rate:	15 M/min
Control System:	CNC	Type:	Vertical
Highlight:	CNC740 CNC Drilling Milling Machine , HT300 CNC Drilling Milling Machine , 35mm cnc mill drill machine

CNC740 CNC Drilling and Milling Machine with HT300 Material 35mm P-level Precision Linear Guides and Ø40 C-level Ground Ball Screws

The CNC series of numerically controlled drilling and milling machines feature an integral bed structure made of HT300 material, offering exceptional rigidity and stability. Equipped with 35mm P-level precision linear guides and Ø40 C3-grade ground ball screws, with 6 slides on the X-axis, these machines deliver precision performance. The CNC control system enables three-axis linkage for complex part machining.

Technical Specifications

Specification	Value
Machine Model	CNC740
Workbench size	1300x350mm
Workbench T-slot (number - size * pitch)	3-14x90mm
Max. load capacity of the workbench	250 Kg
Distance from spindle face to worktable surface	100-600mm
X-axis travel distance	700mm
Y-axis travel distance	400mm
Z-axis travel distance	500mm
X,Y,Z fast movement speed	25 m/min
X axis Max. torque of motor	25.2N.m
Y axis Max. torque of motor	25.2N.m
Z axis Max. torque of motor	34.5N.m
Spindle taper hole	BT40
Spindle motor power	5.5/7.5 KW
Max. spindle speed	8000rpm

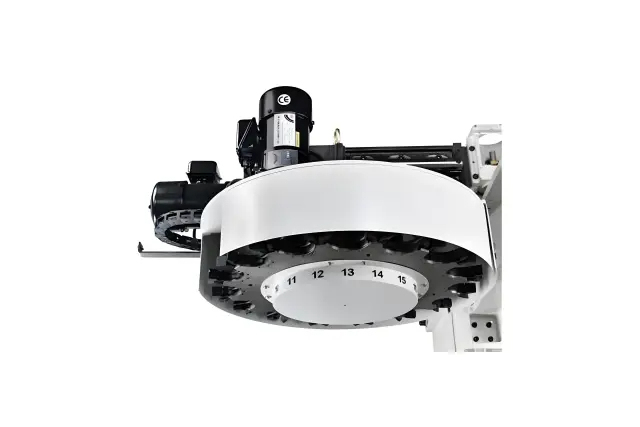

Tool magazine capacity (Optional)	Umbrella-Type 12Tools
Air source pressure	0.5-0.8 MPa
Max. weight of cutting tools	8KG
Machine size (L x W x H)	175x160x220 cm
Standard weight	2.0 T

Machine Tool Configuration

High-quality spindle, imported bearings

PMI, HIWIN, HTPM 35,45 Precision Grade P roller-type linear guide

PMI, HIWIN C3 grade precision ground ball screw

Precision high-rigidity coupling
