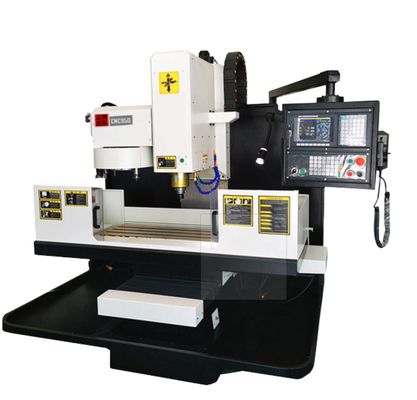

1800 X 420mm Workbench CNC1250 CNC Drilling Milling Machine With HT300 Material

I'm Online Chat Now

1800 X 420mm Workbench CNC1250 CNC Drilling Milling Machine With HT300 Material

1800 X 420mm Workbench CNC1250 CNC Drilling Milling Machine With HT300 Material
1800 X 420mm Workbench CNC1250 CNC Drilling Milling Machine With HT300 Material 1800 X 420mm Workbench CNC1250 CNC Drilling Milling Machine With HT300 Material

Large Image :  1800 X 420mm Workbench CNC1250 CNC Drilling Milling Machine With HT300 Material

Product Details:
Place of Origin: China
Certification: CE ISO certification
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: The wooden case,Tin trunk ,Other seaworthy packing
Delivery Time: 45-60 days
Payment Terms: T/T,L/C,,Western Union
Supply Ability: 45-60 days
Contact Now Chat Now

1800 X 420mm Workbench CNC1250 CNC Drilling Milling Machine With HT300 Material

Description
X-Axis Travel: 800 Mm Spindle Speed: 8000 RPM
Table Size: 1000x500 Mm Tool Capacity: 24
Weight: 3500 Kg Y-Axis Travel: 500 Mm
Max Load Capacity: 500 Kg Number Of Axes: 3
Z-Axis Travel: 500 Mm Power Requirement: 380V, 50Hz, 3 Phase
Accuracy: 0.01 Mm Rapid Traverse Rate: 15 M/min
Control System: CNC Type: Vertical
Highlight:

1800 X 420mm CNC Drilling Milling Machine

,

HT300 CNC Drilling Milling Machine

,

8000RPM cnc drilling and milling machine

CNC1250 CNC Drilling and Milling Machine with HT300 Material, 35mm P-level Precision Linear Guides, and Ø40 C-level Ground Ball Screws
The CNC series of numerically controlled drilling and milling machines feature an integral bed structure made of HT300 material, offering exceptional rigidity and stability. Equipped with 35mm P-level precision linear guides and Ø40 C3 grade ground ball screws, with 6 slides on the X-axis, these machines provide superior performance. The CNC control system enables three-axis linkage for precise drilling and milling of complex parts.
Technical Specifications
Specification Value
Machine Model CNC1250
Workbench size 1800x420mm
Workbench T-slot (number - size * pitch) 3-18x90mm
Max. load capacity of the workbench 350 Kg
Distance from spindle face to worktable surface 120-620mm
X-axis travel distance 900mm
Y-axis travel distance 500mm
Z-axis travel distance 500mm
X,Y,Z fast movement speed 25 m/min
X axis Max. torque of motor 25.2N.m
Y axis Max. torque of motor 25.2N.m
Z axis Max. torque of motor 34.5N.m
Spindle taper hole BT40
Spindle motor power 7.5/11 KW
Max. spindle speed 8000rpm
Tool magazine capacity (Optional) Umbrella-Type 12 Tools
Air source pressure 0.5-0.8 MPa
Max. weight of cutting tools 8KG
Machine size (L x W x H) 225x170x220 cm
Standard weight 2.7 T
Machine Tool Configuration
1800 X 420mm Workbench CNC1250 CNC Drilling Milling Machine With HT300 Material 0
High-quality spindle, imported bearings
1800 X 420mm Workbench CNC1250 CNC Drilling Milling Machine With HT300 Material 1
PMI, HIWIN, HTPM 35,45 Precision Grade P roller-type linear guide
1800 X 420mm Workbench CNC1250 CNC Drilling Milling Machine With HT300 Material 2
PMI, HIWIN C3 grade precision ground ball screw
1800 X 420mm Workbench CNC1250 CNC Drilling Milling Machine With HT300 Material 3
Precision high-rigidity coupling
About Shanjmc

Shanjmc is a leader in precision machinery manufacturing, dedicated to advancing industrial standards with our innovative solutions. Our CNC series machines are crafted from HT300 high-grade material, ensuring high strength, resistance to deformation, and excellent shock absorption. We prioritize quality and performance, equipping our machines with advanced features like precision linear guides and ground ball screws from renowned brands.

Frequently Asked Questions
Who are we?

We are Hubei Shangjie Precision Machinery Manufacturing Co., Ltd., a leading manufacturer of precision CNC machines designed for industrial applications. Our CNC series machines are renowned for their high rigidity and precision.

How can we guarantee quality?

We guarantee quality through rigorous manufacturing processes and the use of premium materials like HT300 high-grade castings. Our machines undergo vibration stress relief and secondary tempering processes to ensure consistent precision and durability.

What can you buy from us?

You can purchase a wide range of industrial equipment from us, including CNC drilling and milling machines, precision surface grinding machines, and tailor-made automation solutions.

Why should you buy from us?

Choosing Shanjmc means investing in unmatched precision and rigidity. Our machines feature advanced components ensuring high efficiency and long service life, with scalable designs to adapt to future demands.

Can I customize this product for my business?

Yes, our CNC machines can be customized to meet your specific business needs with various workbench sizes and load capacities to fit seamlessly into your production environment.

Do you offer wholesale pricing?

Absolutely, we provide competitive wholesale pricing for bulk orders, offering long-term value and reliability for manufacturers looking to expand their capabilities.
