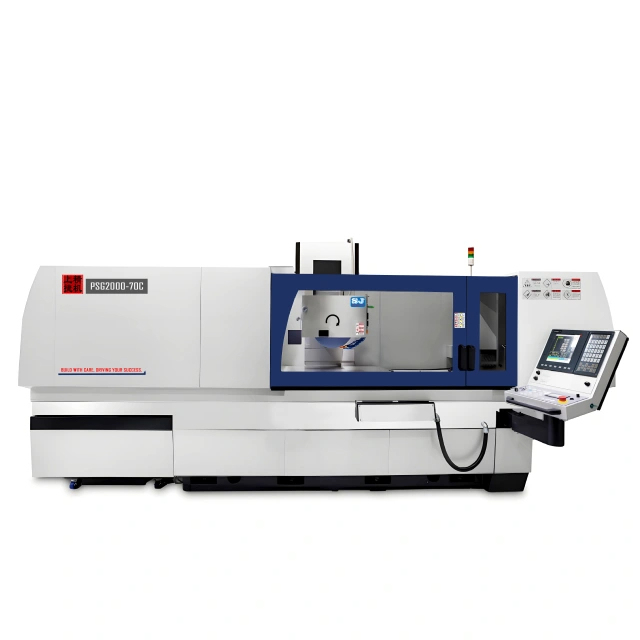

PSG Series CNC Grinding Machine Three Axis Servo Motor Control 4800/Min

PSG Series CNC Grinding Machine Three Axis Servo Motor Control 4800/Min
PSG Series CNC Grinding Machine Three Axis Servo Motor Control 4800/Min PSG Series CNC Grinding Machine Three Axis Servo Motor Control 4800/Min

Large Image :  PSG Series CNC Grinding Machine Three Axis Servo Motor Control 4800/Min

Product Details:
Place of Origin: China
Certification: CE ISO certification
Document: CNCGrindingMachine.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time: 45-60 days
Payment Terms: T/T,L/C,,Western Union
Supply Ability: 45-60 days
Contact Now Chat Now

PSG Series CNC Grinding Machine Three Axis Servo Motor Control 4800/Min

Description
Relative Humidity: <90% Production Capacity: 4800/min
Power Standard: Compliance With Local Standard Cable Drum: AC380V 3*4+1*2.5
Temp: -10--40 Grinding Wheel Diameter: 400mm
Model: ABC-1000 Steel Rail Model: Depends On Loading Capacity
Working Speed: 10PCS/Min Main Motor Power: 4kw
Power Price: Compliance With Local Standard Power Supplier: Compliance The Local Standard
Wheel Distance: 400~700mm Advantages: High Quality And Resonable Price
Color: As Your Request
Highlight:

PSG CNC Grinding Machine

,

Three Axis CNC Grinding Machine

,

4800/Min cnc grinder

PSG Series CNC Grinding Machine with 0.001mm Minimum Feed Rate T-Shaped Bed Design and Three-Axis Servo Motor Control

The PSG series machine tool features a T-shaped bed design with the entire grinding travel supported by the base, ensuring precision grinding for large and heavy workpieces. The series is equipped with a CNC grinding system featuring three-axis servo motor control with a minimum feed rate of 0.001mm.

The three-axis servo drive enables three-axis linkage functionality, allowing for three-dimensional forming grinding through CNC programming. This capability facilitates precise processing of complex workpieces including planes, curved surfaces, and arc surfaces.

Machine castings are constructed from HT300 high-grade material and undergo vibration stress relief and secondary tempering processes to eliminate internal stress. These features provide high strength, strong resistance to deformation, and excellent shock absorption capacity, ensuring long-term stable precision.

Specifications
Model PSG630 PSG840 PSG1040/1050 PSG1250/1260 PSG1560/1570 PSG2060/2070
Workbench size (mm) 600*300 800*400 1000*400 1200*500 1500*600 2000*600
Max. distance from spindle center to worktable (mm) 530 580 580 600 600 600
Max. load capacity of workbench (kg) 450 700 1000 1200 1500 1500
X-axis travel distance (mm) 680 860 1100 1300 1600 2100
Y-axis travel distance (mm) 350 450 450 560 660 760
X,Y,Z fast movement speed 36 m/min
Wheel dimension Ø350*20-50*127mm Ø400*20-50*127mm
Max. spindle speed 3000mm
Spindle motor power 4.0/5.5 KW 5.5/7.5 KW
Machine size (L*W*H) cm 260*180*190 330*250*195 410*260*200 530*280*240 620*280*240 620*280*240
Standard weight 1.9 T 3.2 T 4.2 T 6.3 T 7.2 T 9.5 T
Machine Tool Configuration
PSG Series CNC Grinding Machine Three Axis Servo Motor Control 4800/Min 0

The hydrostatic spindle offers high rotational accuracy, excellent rigidity, long service life, and low noise. This essential configuration enables high-precision, efficient grinding operations.

PSG Series CNC Grinding Machine Three Axis Servo Motor Control 4800/Min 1

Equipped with premium linear guides from Japanese THK, German INA, Rexroth, and Taiwan PMI SP grade for superior precision and durability.

PSG Series CNC Grinding Machine Three Axis Servo Motor Control 4800/Min 2

C3 grade high-precision ground ball screws ensure smooth operation, minimal wear, and extended service life, enhancing machine accuracy and stability.

PSG Series CNC Grinding Machine Three Axis Servo Motor Control 4800/Min 3

The electromagnetic chuck features steel plate milling cavity technology with all-copper coils, offering stronger magnetic force, even distribution, and adjustable settings for various heavy-duty and precision machining applications.
