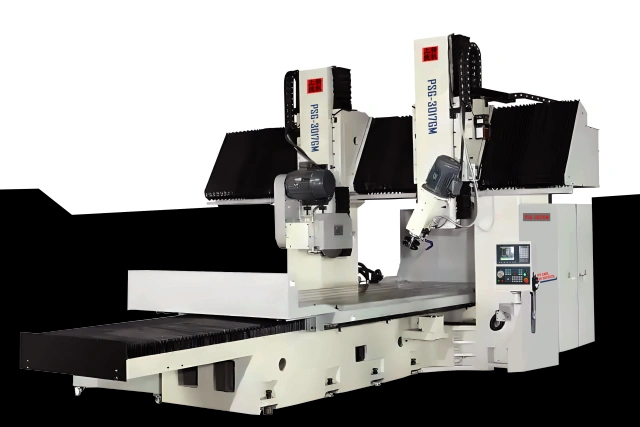

Precision Surface CNC Grinding Machine With Gantry Structure Hydrostatic Spindle 4800/Min

Precision Surface CNC Grinding Machine With Gantry Structure Hydrostatic Spindle 4800/Min
Precision Surface CNC Grinding Machine With Gantry Structure Hydrostatic Spindle 4800/Min Precision Surface CNC Grinding Machine With Gantry Structure Hydrostatic Spindle 4800/Min

Large Image :  Precision Surface CNC Grinding Machine With Gantry Structure Hydrostatic Spindle 4800/Min

Product Details:
Place of Origin: China
Certification: CE ISO certification
Document: CNCGrindingMachine.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time: 45-60 days
Payment Terms: T/T,L/C,,Western Union
Supply Ability: 45-60 days
Contact Now Chat Now

Precision Surface CNC Grinding Machine With Gantry Structure Hydrostatic Spindle 4800/Min

Description
Relative Humidity: <90% Production Capacity: 4800/min
Power Standard: Compliance With Local Standard Cable Drum: AC380V 3*4+1*2.5
Temp: -10--40 Grinding Wheel Diameter: 400mm
Model: ABC-1000 Steel Rail Model: Depends On Loading Capacity
Working Speed: 10PCS/Min Main Motor Power: 4kw
Power Price: Compliance With Local Standard Power Supplier: Compliance The Local Standard
Wheel Distance: 400~700mm Advantages: High Quality And Resonable Price
Color: As Your Request
Highlight:

Precision Surface cnc grinding machine

,

4800/Min cnc grinding machine

,

400mm cnc surface grinder

Precision Surface Grinding Machine with Gantry Structure Hydrostatic Spindle and Ultra-Precision Linear Guides

The PSG/GM series machine tool adopts a gantry structure with enlarged column and crossbeam box structure support, ensuring excellent rigidity. Made from HT300 high-grade material, the castings provide high strength, strong resistance to deformation, and excellent shock absorption capacity.

This precision surface grinding machine achieves grinding accuracy within 0.008mm over a 3-meter travel, with a Z-axis minimum feed rate of 0.001mm. Ideal for industrial applications requiring stable precision over long-term use.

Technical Specifications
Model PSG-2012GM PSG-3012GM PSG-4012GM PSG-2017GM PSG-3017GM PSG-4017GM PSG-3021GM PSG-4021GM
Workbench size (mm) 2000x1000 3000x1000 4000x1000 2000x1400 3000x1400 4000x1400 3000x1600 4000x1600
Model PSG-6021GM PSG-4026GM PSG-5026GM PSG-6026GM PSG-8026GM PSG-5032GM PSG-6032GM PSG-8032GM
Workbench size (mm) 6000x1600 4000x2100 5000x2100 6000x2100 8000x2100 5000x2600 6000x2600 8000x2600
Machine Tool Configuration

Hydrostatic Spindle - High rotational accuracy, good rigidity, long service life and low noise. Essential for high precision grinding.

Precision Surface CNC Grinding Machine With Gantry Structure Hydrostatic Spindle 4800/Min 0

Precision Linear Guides - Japanese THK, German INA, Rexroth and Taiwan PMI SP grade ultra-precision linear guides for smooth operation.

Precision Surface CNC Grinding Machine With Gantry Structure Hydrostatic Spindle 4800/Min 1

C3 Grade Ball Screws - High-precision ground ball screws operate smoothly without shock, with low wear and long service life.

Precision Surface CNC Grinding Machine With Gantry Structure Hydrostatic Spindle 4800/Min 2

Electromagnetic Chuck - Steel plate milling cavity technology with all-copper coils provides strong, adjustable magnetic force for efficient workpiece clamping.

Precision Surface CNC Grinding Machine With Gantry Structure Hydrostatic Spindle 4800/Min 3
Key Advantages
  • Exceptional Precision: Achieves grinding accuracy within 0.008mm over 3-meter travel
  • Robust Construction: HT300 high-grade material castings with vibration stress relief treatment
  • Advanced Components: Hydrostatic spindle, precision linear guides, and C3 grade ball screws
  • High Efficiency: Electromagnetic chuck enables quick workpiece clamping and release
  • Scalable Design: Multiple models available to suit various production requirements
Precision Surface CNC Grinding Machine With Gantry Structure Hydrostatic Spindle 4800/Min 4
About Shanjmc

Shanjmc is a leader in precision machinery manufacturing, dedicated to advancing industrial standards with innovative solutions. Our PSG/GM Series precision surface grinding machines are crafted from premium materials and equipped with advanced components for reliable performance.

We offer comprehensive services including product customization and bulk ordering options to meet your specific production needs.

Frequently Asked Questions
Who are we?

Hubei Shangjie Precision Machinery Manufacturing Co., Ltd., a leading manufacturer of precision surface grinding machines designed for industrial applications.

How can we guarantee quality?

Through rigorous manufacturing processes using premium materials like HT300 high-grade castings with vibration stress relief and secondary tempering processes.

What can you buy from us?

Precision surface grinding machines, CNC turning centers, machining centers, and tailor-made automation solutions.

Why choose Shanjmc?

Unmatched precision and rigidity with advanced components, scalable designs, and long-term reliability.

Do you offer customization?

Yes, our machines can be customized to meet specific business needs with various workbench sizes and load capacities.

Do you offer wholesale pricing?

Yes, we provide competitive wholesale pricing for bulk orders.
