Place of Origin:
China
Certification:
CE ISO certification
Document:

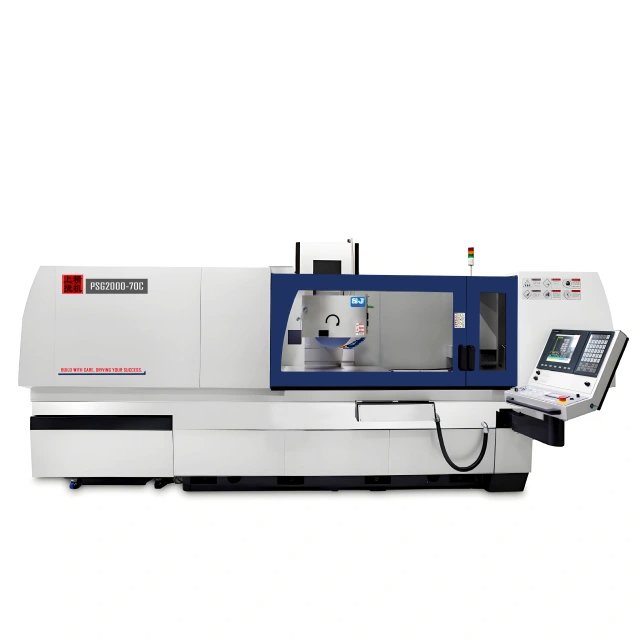

The PSG/C series machine tool features a T-shaped bed and moving column design, equipped with SP-level ultra-precision linear guides as standard. It delivers full-travel grinding accuracy within 0.008mm and comes standard with a grinding machine numerical control system.
The three-axis servo drive provides three-axis linkage functionality with a minimum feed rate of 0.001mm, enabling three-dimensional forming grinding for complex workpieces including planes, curved surfaces, and arc surfaces.
The fully enclosed sheet metal structure with internal protection offers both high-end aesthetics and functional benefits. An integrated oil mist collection system improves the working environment while meeting environmental protection requirements.
Machine castings utilize HT300 high-grade material with vibration stress relief and secondary tempering processes to eliminate internal stress. This ensures high strength, deformation resistance, and excellent shock absorption capacity for long-term precision stability.
| Model | PSG600-30C | PSG800-40C | PSG1000-40C/50C | PSG1200-50C/60C | PSG1500-60C/70C | PSG2000-60C/70C |
|---|---|---|---|---|---|---|
| Workbench size (mm) | 600*300 | 800*400 | 1000*400 1000*500 |
1200*500 1200*600 |
1500*600 1500*700 |
2000*600 2000*700 |
| Max. distance from spindle center to worktable (mm) | 530 | 580 | 580 | 600 | 600 | 600 |
| Max. workbench load capacity (kg) | 450 | 700 | 1000 | 1000 | 1200 | 1500 |
| X-axis travel (mm) | 680 | 860 | 1100 | 1300 | 1600 | 2100 |
| Y-axis travel (mm) | 350 | 450 | 450 | 560 | 560 | 660 |
| X,Y,Z rapid traverse speed | 36 m/min | |||||
| Wheel dimension | Ø350*20-50*127mm | Ø400*20-50*127mm | ||||
| Max. spindle speed | 3000mm | |||||
| Spindle motor power | 4.0/5.5 KW | 5.5/7.5 KW | ||||
| Machine dimensions L*W*H (cm) | 260*180*190 | 330*250*195 | 410*260*200 | 420*280*240 | 530*280*240 | 620*280*240 |
| Standard weight | 2.4 T | 3.6 T | 4.9 T | 7.3 T | 8.5 T | 11 T |
Hydrostatic Spindle - Provides high rotational accuracy, excellent rigidity, long service life and low noise operation. Essential for high-precision, high-efficiency grinding.
Ultra-Precision Linear Guides - Utilizes premium THK, INA, Rexroth and PMI SP-grade components for superior motion control and accuracy.
High-Precision Ball Screws - C3 grade ground ball screws ensure smooth operation, minimal wear and extended service life for enhanced accuracy and stability.
Advanced Electromagnetic Chuck - Features steel plate milling cavity technology with all-copper coils for compact size, strong adjustable magnetic force, and even distribution. Ideal for heavy-duty and precision machining applications.
