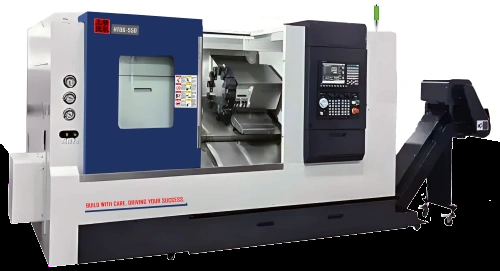

Y Axis CNC Turning And Milling Center 12 16 Servo Tool Turret 1000mm Z Axis Travel

Y Axis CNC Turning And Milling Center 12 16 Servo Tool Turret 1000mm Z Axis Travel

Y Axis cnc turning and milling center

High Precision cnc turning and milling center

Z Axis cnc vertical turning center

Place of Origin:

China

Brand Name:

ShangJie PM

Certification:

CE ISO certification

Model Number:

HT06DSY-350/550/750

Chat Now
Request A Quote
Y Axis CNC Turning And Milling Center 12 16 Servo Tool Turret 1000mm Z Axis Travel
Product Details
Year:
New
Machining Capacity:
Medium Duty
Tools Number:
8 Station Hydraulic Turret
Z-Axis Travel:
1000mm
Spindle Speed Step:
Stepless
Spindle Unit:
170MM
Chuck Size:
10/12''
Machinery Test Report:
Provided
Product Type:
Turning Center
Marketing Type:
New Product 2020
X Axis Travel:
400mm
Port:
Any Port In China
Key Word:
Turning Center
Spindle Bore:
48mm
Milling Head:
(side)4 (nose)4
Highlight:

Y Axis cnc turning and milling center

,

High Precision cnc turning and milling center

,

Z Axis cnc vertical turning center

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time
45-60 days
Payment Terms
T/T,L/C,,Western Union
Supply Ability
45-60 days
RELATED PRODUCTS
Good price PT36 2 Axes CNC Turning Center 5000kg Weight 500mm Z Axis For Precision Machining online Video

PT36 2 Axes CNC Turning Center 5000kg Weight 500mm Z Axis For Precision Machining

Chat Now
Good price PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder online

PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder

Chat Now
Good price Light Duty CNC Turning Center With 380V 220V 4 Milling Heads For Multi Purpose Metal Working online Video

Light Duty CNC Turning Center With 380V 220V 4 Milling Heads For Multi Purpose Metal Working

Chat Now
Good price Horizontal High Precision Slant Bed CNC Lathe Machine With 350mm Tailstock Travel online Video

Horizontal High Precision Slant Bed CNC Lathe Machine With 350mm Tailstock Travel

Chat Now
CONTACT US
86--15221502418
bear02@shanjmc.com
Chat Now
Product Description
HT06DSY-350/550/750 High-Precision CNC Turning Center with Interpolating Y-Axis and 12/16 Servo Tool Turret for 320mm Max Machining Diameter
HT-Series High-Precision CNC Turning Center (heavy-duty)
ShangJie PM's HT Series CNC lathes feature high-rigidity slant-bed structures combined with powerful spindles and servo turrets. Designed for heavy-duty cutting and continuous batch production, the HT Series ensures stability and precision across complex turning tasks. These machines are ideal for processing flanges, shafts, connectors, and other demanding metal components in industries like energy equipment, machinery parts, and transportation hardware.
  • Heavy-duty slant-bed lathe design with servo turret
  • Supports powerful spindle output and stable cutting performance
  • Designed for industrial-grade batch production and tough materials
HT/DSY Series — Servo Power tool turret, dual spindles, interpolating Y-axis
The HT series is a heavy-duty turret turning center, specifically designed for heavy cutting of large discs and shafts. The tailstock and sub-spindle rail parts are all integrally cast and have undergone reinforcement and optimization treatment. The extra-wide bed is more conducive to improving processing stability and is particularly suitable for turning and milling compound processing requirements.
The 45° inclined saddle, combined with large-sized roller linear guides and precision-grade ball screws, enables it to handle various processing tasks and maintain the bed accuracy for a long time. By applying finite element analysis (FEM), the shape and position of the reinforcing ribs in the castings are optimized to achieve the best bed strength, making the bed structure more suitable for heavy cutting and extending the tool's service life.
Y Axis CNC Turning And Milling Center 12 16 Servo Tool Turret 1000mm Z Axis Travel 0
Specifications
Machine Type HT06DSY-350 HT06DSY-550 HT06DSY-750
Max. swing diameter 600mm 600mm 600mm
Max. machining diameter 320mm 320mm 320mm
Max. machining Length 350mm 550mm 750mm
Spindle nose A2-6 A2-6 A2-6
Spindle motor power 7.5/11 KW 7.5/11 KW 7.5/11 KW
Spindle bore 72mm 72mm 72mm
Max. spindle speed 4000r/min 4000r/min 4000r/min
Specification of the sub-spindle A2-5 A2-5 A2-5
Interpolation of Y-axis travel ±55mm ±55mm ±55mm
X axis 230mm 230mm 230mm
Z axis 450mm 650mm 850mm
X axis rapid feed speed 30m/min 30m/min 30m/min
Z axis rapid feed speed 30m/min 30m/min 30m/min
X axis Max. torque of motor 34.5N.m 34.5N.m 34.5N.m
Z axis Max. torque of motor 34.5N.m 34.5N.m 34.5N.m
Y axis Max. torque of motor 34.5N.m 34.5N.m 34.5N.m
Chuck Size 10" 10" 10"
Servo Tool Turret 12/16 12/16 12/16
OD tool size 25x25mm 25x25mm 25x25mm
Machine size (L x W x H) 2200x1470x1800mm 2450x1470x1800mm 2450x1470x1800mm
Standard weight 3400KG 4100KG 4800KG
Expandable functions of machine tools
Turn-Mill
The entire HT series can be equipped with a servo power tool turret to achieve the processing capability of turning and milling compound functions.
Y Axis CNC Turning And Milling Center 12 16 Servo Tool Turret 1000mm Z Axis Travel 1
Programmable Tailstock
The machine can be configured with a servo turret or customized with multiple power heads to deliver high-end turning-milling capabilities. This versatile solution meets complex machining demands while minimizing customers' capital expenditure on equipment.
Y Axis CNC Turning And Milling Center 12 16 Servo Tool Turret 1000mm Z Axis Travel 2
Frequently Asked Questions
Q: Manufacturer or trading company? Where is the company located?
A: We are a professional CNC lathe manufacturer located in Shiyan City, Hubei Province.
Q: How long have you been involved in this market?
A: We have 10 years of experience in the auto parts industry.
Q: Can you provide a product catalog?
A: Contact our business manager for the required product catalog via email.
Q: About the terms and conditions of payment.
A: We confirm payment terms (FOB, CIF, CNF) during quotation. For mass production, we typically require 30% advance payment with balance upon bill of lading, accepting T/T or L/C.
Q: Product after-sales service scope and service period?
A: We provide a one-year warranty and lifetime 24-hour technical support.
