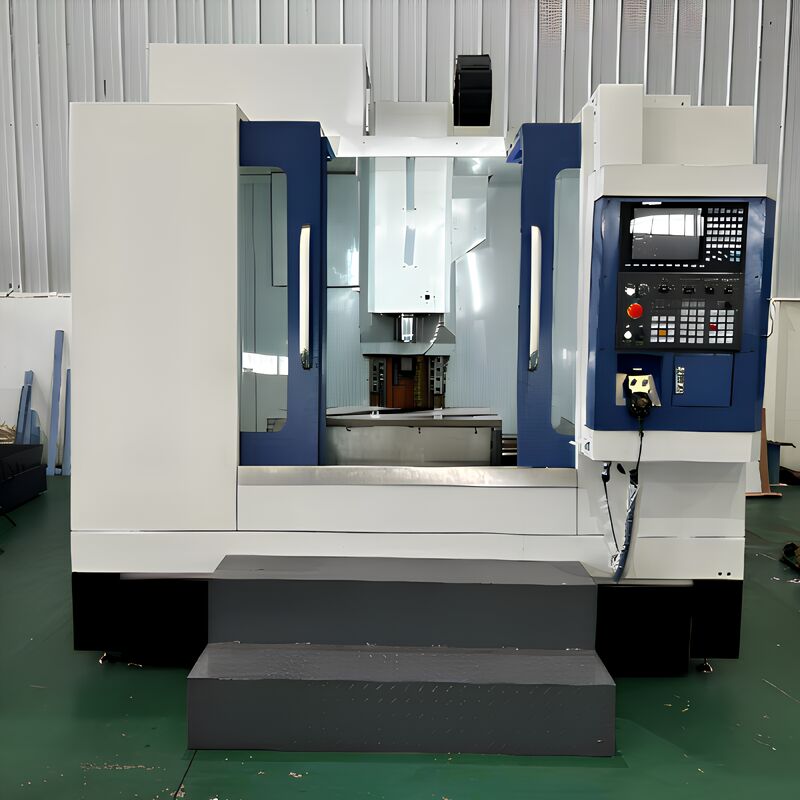

VMC430 Vertical Machining Center CNC Milling Machine for Metalworking

A robust 8-ton heavy-duty vertical machining center built with a rigid frame (245 * 218 *255), engineered to support maximum table loads up to 800 kg for intense metal milling.

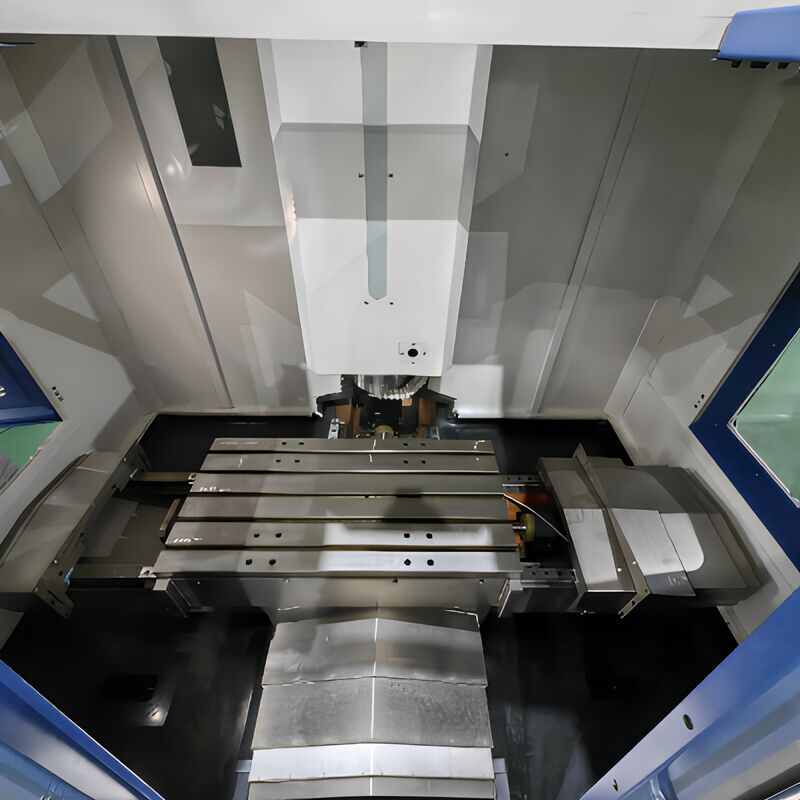

Offers an expansive working area with a 1300* 600 mm table size and flexible 3-axis travel dynamics (X-axis: 1100 mm, Y-axis: 610 mm, Z-axis: 600 mm).

Outfitted with a premium BT40 single spindle capable of operating at blazing-fast speeds from 8,000 to 12,000 RPM, paired with responsive rapid feed speeds of 10 to 30 m/min.

Features a large 24-slot tool magazine capacity that executes ultra-fast, automatic tool changes in as little as 3 seconds to maximize production uptime and support flexible manufacturing.

Manufactured by Shangjie Precision Machinery in Hubei, China under 380V voltage standards; arrives backed by a 1-year warranty along with official factory Machinery Test and Video Outgoing-Inspection reports..

Established in 2007, Hubei Shangjie Precision Machinery Manufacturing Co., Ltd. is an ISO9001-certified manufacturer operating a high-standard 20,000 $m^2$ facility specializing in premium CNC turning centers, vertical/horizontal machining centers, CNC gantry machines, and precision grinders. The company manages complete end-to-end processing in-house-covering everything from initial design, casting, and sheet metal fabrication to final assembly and testing-to guarantee total quality control over every machine tool produced. Driven by advanced production and inspection equipment like precision gantry centers, laser interferometers, and dual-axis photoelectric autocollimators, Shangjie ensures high-accuracy engineering across its lineup. For maximum structural durability, all machine beds are cast from high-grade HT300 material and subjected to rigorous tempering and natural aging processes to completely eliminate internal stress and secure long-term operational stability. Guided by their core values of rigor, pragmatism, integrity, and responsibility, they are dedicated to delivering high-performance industrial equipment for win-win global partnerships.
