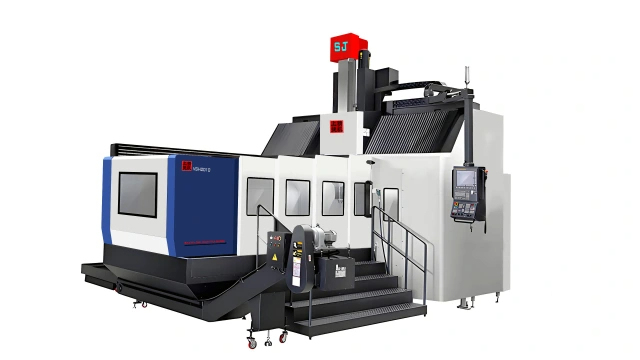

6000 12000RPM Spindle BT50 Taper 24 Tool Magazine Gantry Type Machining Center

6000 12000RPM Spindle BT50 Taper 24 Tool Magazine Gantry Type Machining Center
6000 12000RPM Spindle BT50 Taper 24 Tool Magazine Gantry Type Machining Center 6000 12000RPM Spindle BT50 Taper 24 Tool Magazine Gantry Type Machining Center

Large Image :  6000 12000RPM Spindle BT50 Taper 24 Tool Magazine Gantry Type Machining Center

Product Details:
Place of Origin: China
Certification: CE ISO certification
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time: 45-60 days
Payment Terms: T/T,L/C,,Western Union
Supply Ability: 45-60 days
Contact Now Chat Now

6000 12000RPM Spindle BT50 Taper 24 Tool Magazine Gantry Type Machining Center

Description
Accuracy: 0.01mm Table Size: 3000mm X 1600mm
Model: GMC-3016 Tool Magazine Capacity: 24 Tools
Structure: Gantry Max Load Capacity: 5000kg
Cooling System: Oil Cooling Application: Milling, Drilling, Tapping
Spindle Speed: 8000rpm Y-Axis Travel: 1600mm
Power Supply: AC 380V/50Hz Controller: Siemens/Fanuc
X-Axis Travel: 3000mm Z-Axis Travel: 800mm
Highlight:

Milling Gantry Type Machining Center

,

Drilling Gantry Type Machining Center

,

380V cnc gantry type machining center

GS1812 Gantry Machining Center with 6000/12000 RPM Spindle BT50 Taper and 24-Tool Magazine for Large Workpiece Processing
The GS series gantry machining centers feature a robust gantry structure that combines the strong rigidity and stability of traditional gantry machines with the rapid movement capability of vertical machining centers, significantly enhancing processing efficiency for large workpieces.
Machine Structure

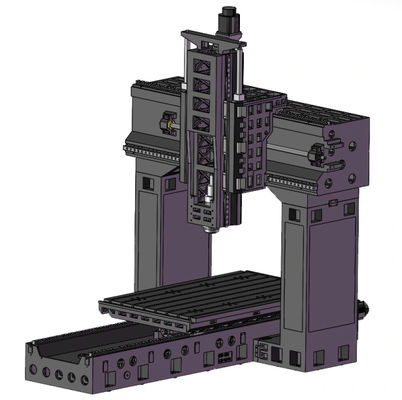

Through finite element analysis (FEM), we've optimized the casting reinforcing ribs to achieve optimal bed strength. Special reinforcing structures for the X-axis base and Y-axis crossbeam ensure stability and prevent deformation.
6000 12000RPM Spindle BT50 Taper 24 Tool Magazine Gantry Type Machining Center 0
The four-track Z-axis ram design provides exceptional rigidity while eliminating low-speed crawling and long-term precision loss common in traditional hard rail systems.
6000 12000RPM Spindle BT50 Taper 24 Tool Magazine Gantry Type Machining Center 1
Specifications
Machine Type GS1812
Workbench size 1800*1000 mm
Workbench T-slot (number - size * pitch) 6-22*160 mm
Max. load capacity of the workbench 3000KG
X-axis travel distance 1850mm
Y-axis travel distance 1200mm
Z-axis travel distance 800mm
Gantry Effective Width 1280mm
Distance from spindle face to worktable surface 150-950 mm
Guide rail form Precision Grade P roller-type linear guide
X,Y,Z fast movement speed 20/20/15 m/min
X axis Max. torque of motor 69N.m
Y axis Max. torque of motor 69N.m
Z axis Max. torque of motor 85.2N.m
Max. spindle speed 6000/12000 rpm
Spindle taper hole BT50 (BT40 Optional)
Spindle motor power 15/18 KW (※18.5/22 KW)
Tool magazine capacity Disc-Type 24Tools
Max. weight of cutting tools 8KG(BT40) / 15KG(BT50)
Air source pressure 0.5-0.8 MPa
Machine size (L * W * H) 5200*3000*3400mm
Standard weight 18000KG
Machine Tool Configuration
CNC system
FANUC, Siemens, SYNTEC, KND, Mitsubishi
6000 12000RPM Spindle BT50 Taper 24 Tool Magazine Gantry Type Machining Center 2 6000 12000RPM Spindle BT50 Taper 24 Tool Magazine Gantry Type Machining Center 3
High-quality spindle
Imported bearings
6000 12000RPM Spindle BT50 Taper 24 Tool Magazine Gantry Type Machining Center 4
Precision linear guides
THK, PMI, HIWIN, HTPM 45,55 Precision Grade P roller-type
6000 12000RPM Spindle BT50 Taper 24 Tool Magazine Gantry Type Machining Center 5
Precision ball screws
THK, PMI, HIWIN C3 grade Ø50 precision ground
6000 12000RPM Spindle BT50 Taper 24 Tool Magazine Gantry Type Machining Center 6
Tool clamping cylinder
6000 12000RPM Spindle BT50 Taper 24 Tool Magazine Gantry Type Machining Center 7
Angular contact bearings
NSK, SKF, FAG P4 grade imported
6000 12000RPM Spindle BT50 Taper 24 Tool Magazine Gantry Type Machining Center 8
High-rigidity coupling
6000 12000RPM Spindle BT50 Taper 24 Tool Magazine Gantry Type Machining Center 9
Synchronous belts
Imported high-torque
6000 12000RPM Spindle BT50 Taper 24 Tool Magazine Gantry Type Machining Center 10
Tool magazine options
High-quality disc-type/Umbrella-type ATC
6000 12000RPM Spindle BT50 Taper 24 Tool Magazine Gantry Type Machining Center 11 6000 12000RPM Spindle BT50 Taper 24 Tool Magazine Gantry Type Machining Center 12
Standard accessories
Chain-type chip conveyor and small iron chip cart
6000 12000RPM Spindle BT50 Taper 24 Tool Magazine Gantry Type Machining Center 13
Company Advantages
  • Certified quality system with independent design and R&D capabilities
  • Equipped with large gantry machining centers, five-axis machining centers, and other advanced equipment
  • Dedicated after-sales service team providing convenient and efficient support
Product Advantages
  • HT300 high-grade castings with ergonomic design
  • Imported functional components ensuring long-term dimensional stability
  • Complete in-house processes from casting to sheet metal fabrication
  • Strict quality control throughout production
Application Scenarios
Ideal for mechanical processing in automotive manufacturing, aerospace, and shipbuilding industries.
Frequently Asked Questions
Q: Manufacturer or trading company? Where is the company located?
A: We are a professional manufacturer of CNC lathes, located in Shiyan City, Hubei Province.
Q: How long have you been involved in this market?
A: We have been engaged in the auto parts industry for 10 years.
Q: Can you provide a product catalog?
A: Contact our business manager, we will send the product catalog you need to your mailbox.
Q: About the terms and conditions of payment.
A: We confirm trading methods (FOB, CIF, CNF) when quoting. For mass production, we typically require 30% advance payment with balance upon bill of lading. Payment methods are primarily T/T, with L/C also acceptable.
Q: Product after-sales service scope and service period
A: We offer a one-year warranty and 24-hour lifetime technical support.
