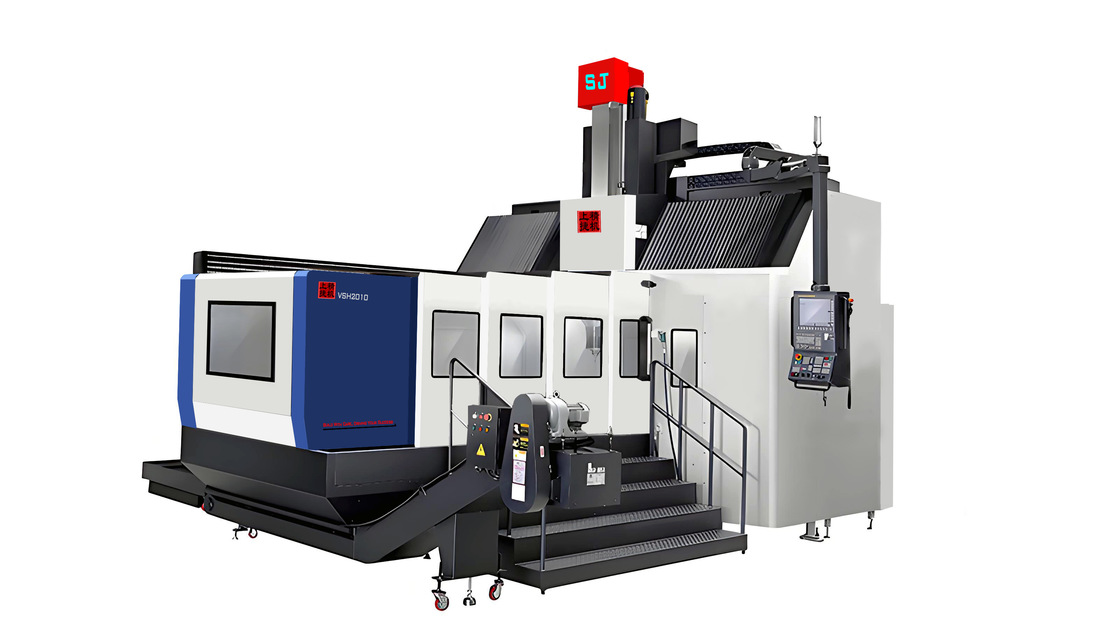

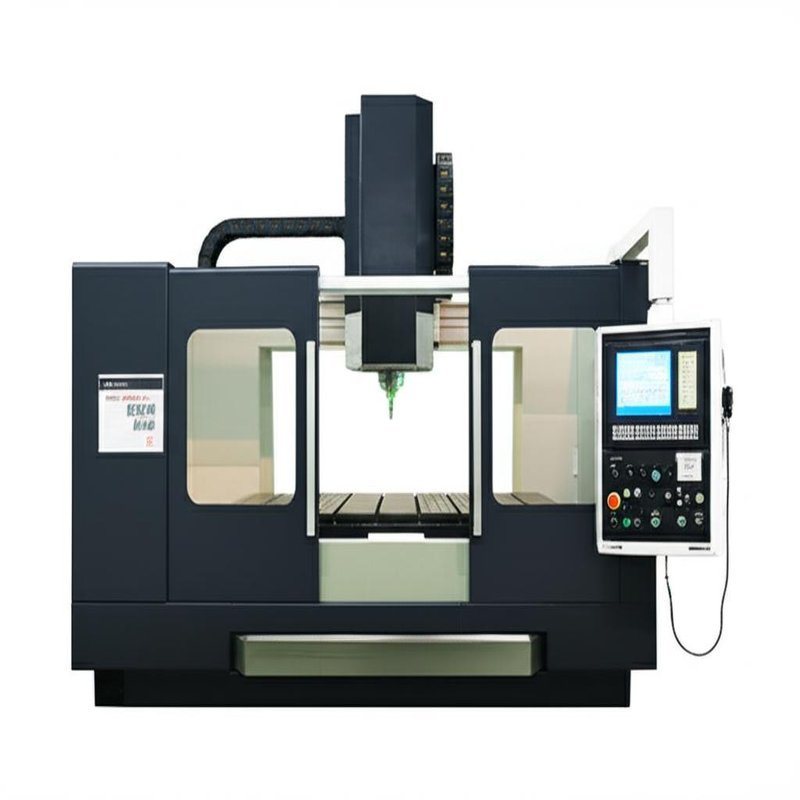

Gantry-type Machining Center
ShangJie PM's gantry-type machining centers are engineered for large-scale, high-rigidity milling operations across metal, molds, and structural components. Featuring a bridge-style structure with dual-column support, these CNC gantry mills ensure exceptional stability during heavy-duty cutting.
- Dual-column structure ensures vibration-free heavy milling
- High-travel axes accommodate large, complex parts
- Ideal for mold making, energy, shipbuilding, and aerospace applications
GS series gantry machining centers adopt a gantry structure, inheriting the strong rigidity, symmetrical structure and high stability of traditional gantry machines, while also taking into account the rapid movement capability of vertical machining centers, significantly enhancing the processing efficiency of large workpieces for customers.
Machine Structure
GS series gantry machining centers adopt a gantry structure, inheriting the strong rigidity, symmetrical structure and high stability of traditional gantry machines, while also taking into account the rapid movement capability of vertical machining centers, significantly enhancing the processing efficiency of large workpieces for customers.
By applying the finite element analysis (FEM), the shape and position of the casting reinforcing ribs were optimized to achieve the optimal strength of the bed. Additionally, special reinforcing structures were designed for the X-axis base and Y-axis crossbeam to ensure the bed's stability and prevent deformation.
The four-track design of the Z-axis ram not only provides sufficient rigidity but also overcomes the low-speed crawling phenomenon and the defect of precision loss over time of the traditional hard rail.
Specifications
| Machine Type | GS2315 |
|---|
| Workbench size | 2300x1300 mm |
|---|
| Workbench T-slot (number - size * pitch) | 8-22x160 mm |
|---|
| Max. load capacity of the workbench | 5500KG |
|---|
| X-axis travel distance | 2400mm |
|---|
| Y-axis travel distance | 1500mm |
|---|
| Z-axis travel distance | 800mm |
|---|
| Gantry Effective Width | 1580mm |
|---|
| Distance from the spindle face to the worktable surface | 150-950 mm |
|---|
| Guide rail form | Precision Grade P roller-type linear guide |
|---|
| X,Y,Z fast movement speed | 20/20/15m/min |
|---|
| X axis Max. torque of motor | 85.2N.m |
|---|
| Y axis Max. torque of motor | 69N.m |
|---|
| Z axis Max. torque of motor | 85.2N.m |
|---|
| Max. spindle speed | 6000/12000 rpm |
|---|
| Spindle taper hole | BT50 (BT40 Optional) |
|---|
| Spindle motor power | 15/18 KW (※18.5/22 KW) |
|---|
| Tool magazine capacity | Disc-Type 24Tools |
|---|
| Max. weight of cutting tools | 8KG(BT40) / 15KG(BT50) |
|---|
| Air source pressure | 0.5-0.8 MPa |
|---|
| Machine size (L x W x H) | 5900x3500x3400mm |
|---|
| Standard weight | 22000KG |
|---|
Machine Tool Configuration
CNC system: FANUC, Siemens, SYNTEC, KND, Mitsubishi
High-quality spindle, imported bearings
THK, PMI, HIWIN, HTPM 45,55 Precision Grade P roller-type linear guide
THK, PMI, HIWIN C3 grade Ø50 precision ground ball screw
High-quality tool clamping cylinder
NSK, SKF, FAG P4 grade imported angular contact paired bearings
Precision high-rigidity coupling
Imported high-torque synchronous belts
High-quality disc-type /Umbrella-type ATC Tool magazine
Standard equipped with chain-type chip conveyor and small iron chip cart
