2000x1000mm Workbench Gantry Type Machining Center 6000 12000rpm Spindle Speed

2000x1000mm Workbench Gantry Type Machining Center 6000 12000rpm Spindle Speed
2000x1000mm Workbench Gantry Type Machining Center 6000 12000rpm Spindle Speed 2000x1000mm Workbench Gantry Type Machining Center 6000 12000rpm Spindle Speed

Large Image :  2000x1000mm Workbench Gantry Type Machining Center 6000 12000rpm Spindle Speed

Product Details:
Place of Origin: China
Certification: CE ISO certification
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time: 45-60 days
Payment Terms: T/T,L/C,,Western Union
Supply Ability: 45-60 days
Contact Now Chat Now

2000x1000mm Workbench Gantry Type Machining Center 6000 12000rpm Spindle Speed

Description
Accuracy: 0.01mm Table Size: 3000mm X 1600mm
Model: GMC-3016 Tool Magazine Capacity: 24 Tools
Structure: Gantry Max Load Capacity: 5000kg
Cooling System: Oil Cooling Application: Milling, Drilling, Tapping
Spindle Speed: 8000rpm Y-Axis Travel: 1600mm
Power Supply: AC 380V/50Hz Controller: Siemens/Fanuc
X-Axis Travel: 3000mm Z-Axis Travel: 800mm
Highlight:

2000x1000mm Gantry Type Machining Center

,

24 tools Gantry Type Machining Center

,

800mm gantry type vertical machining center

GS Series Gantry Machining Center with 6000/12000 RPM Spindle BT50 Taper and 24-Tool Disc-Type Magazine

The GS series gantry machining centers feature a robust gantry structure that combines the strong rigidity and high stability of traditional gantry machines with the rapid movement capability of vertical machining centers, significantly improving processing efficiency for large workpieces.

Machine Structure

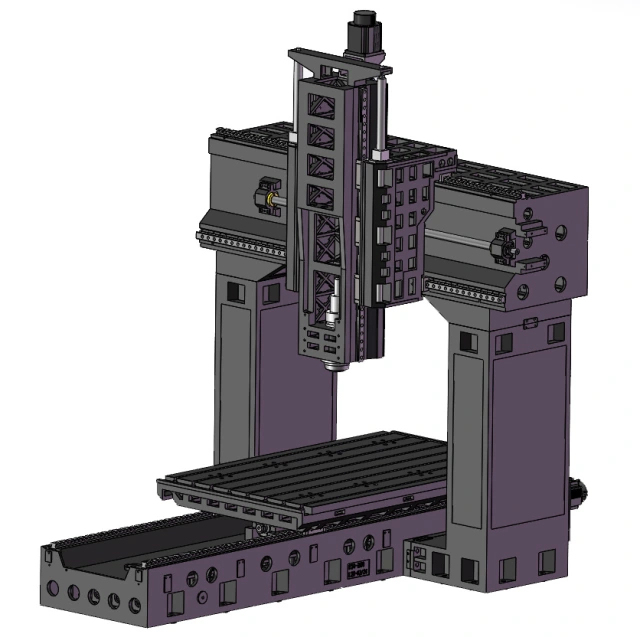

The GS series utilizes finite element analysis (FEM) to optimize casting reinforcing ribs for optimal bed strength. Special reinforcing structures for the X-axis base and Y-axis crossbeam ensure stability and prevent deformation.

2000x1000mm Workbench Gantry Type Machining Center 6000 12000rpm Spindle Speed 0

The four-track Z-axis ram design provides exceptional rigidity while eliminating low-speed crawling and long-term precision loss issues common with traditional hard rails.

2000x1000mm Workbench Gantry Type Machining Center 6000 12000rpm Spindle Speed 1
Specifications
Machine Type GS2012
Workbench size 2000x1000 mm
Workbench T-slot (number - size * pitch) 6-22x160 mm
Max. load capacity of the workbench 4000KG
X-axis travel distance 2100mm
Y-axis travel distance 1200mm
Z-axis travel distance 800mm
Gantry Effective Width 1280mm
Distance from spindle face to worktable surface 150-950 mm
Guide rail form Precision Grade P roller-type linear guide
X,Y,Z fast movement speed 20/20/15m/min
X axis Max. torque of motor 85.2N.m
Y axis Max. torque of motor 69N.m
Z axis Max. torque of motor 85.2N.m
Max. spindle speed 6000/12000 rpm
Spindle taper hole BT50 (BT40 Optional)
Spindle motor power 15/18 KW (※18.5/22 KW)
Tool magazine capacity Disc-Type 24Tools
Max. weight of cutting tools 8KG(BT40) / 15KG(BT50)
Air source pressure 0.5-0.8 MPa
Machine size (L x W x H) 5300x3000x3400mm
Standard weight 18000KG
Machine Tool Configuration
CNC system

FANUC, Siemens, SYNTEC, KND, Mitsubishi

2000x1000mm Workbench Gantry Type Machining Center 6000 12000rpm Spindle Speed 2 2000x1000mm Workbench Gantry Type Machining Center 6000 12000rpm Spindle Speed 3
High-quality spindle

Imported bearings

2000x1000mm Workbench Gantry Type Machining Center 6000 12000rpm Spindle Speed 4
Precision linear guides

THK, PMI, HIWIN, HTPM 45,55 Precision Grade P roller-type

2000x1000mm Workbench Gantry Type Machining Center 6000 12000rpm Spindle Speed 5
Precision ball screws

THK, PMI, HIWIN C3 grade Ø50 precision ground

2000x1000mm Workbench Gantry Type Machining Center 6000 12000rpm Spindle Speed 6
Tool clamping cylinder

High-quality design

2000x1000mm Workbench Gantry Type Machining Center 6000 12000rpm Spindle Speed 7
Angular contact bearings

NSK, SKF, FAG P4 grade imported

2000x1000mm Workbench Gantry Type Machining Center 6000 12000rpm Spindle Speed 8
Coupling

Precision high-rigidity design

2000x1000mm Workbench Gantry Type Machining Center 6000 12000rpm Spindle Speed 9
Synchronous belts

Imported high-torque design

2000x1000mm Workbench Gantry Type Machining Center 6000 12000rpm Spindle Speed 10
Tool magazine

High-quality disc-type/Umbrella-type ATC

2000x1000mm Workbench Gantry Type Machining Center 6000 12000rpm Spindle Speed 11 2000x1000mm Workbench Gantry Type Machining Center 6000 12000rpm Spindle Speed 12
Chip management

Standard chain-type chip conveyor with small iron chip cart

2000x1000mm Workbench Gantry Type Machining Center 6000 12000rpm Spindle Speed 13
Company Advantages
  • Certified quality system with independent design and R&D capabilities
  • Equipped with large gantry machining centers, five-axis machining centers, and vertical machining centers
  • Dedicated after-sales service team providing convenient and efficient support
Product Advantages
  • HT300 high-grade castings with ergonomic design
  • Imported functional components ensuring long-term dimensional stability
  • Complete in-house processes from casting to sheet metal fabrication
  • Comprehensive quality control throughout manufacturing
Application Scenarios

Ideal for mechanical processing in automotive manufacturing, aerospace, and shipbuilding industries.

Frequently Asked Questions
Q: Manufacturer or trading company? Where is the company located?
A: We are a professional manufacturer of CNC lathes, located in Shiyan City, Hubei Province.
Q: How long have you been involved in this market?
A: We have been engaged in the auto parts industry for 10 years.
Q: Can you provide a product catalog?
A: Contact our business manager, we will send the product catalog you need to your mailbox.
Q: About the terms and conditions of payment.
A: When you quote, we will confirm with you the trading method (FOB, CIF, CNF, or other methods). In mass production we usually pay 30% advance payment first then see the balance of the bill of lading. Most payment methods are T/T, though L/C is also acceptable.
Q: Product after-sales service scope and service period?
A: We offer a one-year warranty and 24-hour lifetime technical support.
