GS2312 Gantry Type Machining Center With 6000 12000 RPM Spindle BT50 Taper

GS2312 Gantry Type Machining Center With 6000 12000 RPM Spindle BT50 Taper
GS2312 Gantry Type Machining Center With 6000 12000 RPM Spindle BT50 Taper
GS2312 Gantry Type Machining Center With 6000 12000 RPM Spindle BT50 Taper GS2312 Gantry Type Machining Center With 6000 12000 RPM Spindle BT50 Taper GS2312 Gantry Type Machining Center With 6000 12000 RPM Spindle BT50 Taper GS2312 Gantry Type Machining Center With 6000 12000 RPM Spindle BT50 Taper

Large Image :  GS2312 Gantry Type Machining Center With 6000 12000 RPM Spindle BT50 Taper

Product Details:
Place of Origin: China
Certification: CE ISO certification
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time: 45-60 days
Payment Terms: T/T,L/C,,Western Union
Supply Ability: 45-60 days
Contact Now Chat Now

GS2312 Gantry Type Machining Center With 6000 12000 RPM Spindle BT50 Taper

Description
Accuracy: 0.01mm Table Size: 3000mm X 1600mm
Model: GMC-3016 Tool Magazine Capacity: 24 Tools
Structure: Gantry Max Load Capacity: 5000kg
Cooling System: Oil Cooling Application: Milling, Drilling, Tapping
Spindle Speed: 8000rpm Y-Axis Travel: 1600mm
Power Supply: AC 380V/50Hz Controller: Siemens/Fanuc
X-Axis Travel: 3000mm Z-Axis Travel: 800mm
Highlight:

GS2312 gantry type machining center

,

12000 RPM gantry type machining center

,

6000 RPM gantry machining

GS2312 Gantry Machining Center

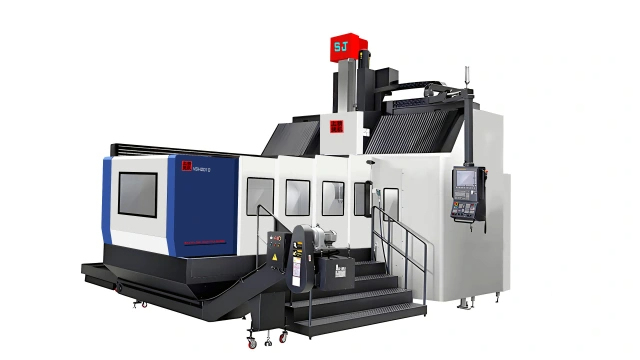

The GS series gantry machining centers feature a robust gantry structure that combines the strong rigidity and high stability of traditional gantry machines with the rapid movement capability of vertical machining centers. This design significantly enhances processing efficiency for large workpieces.

Machine Structure

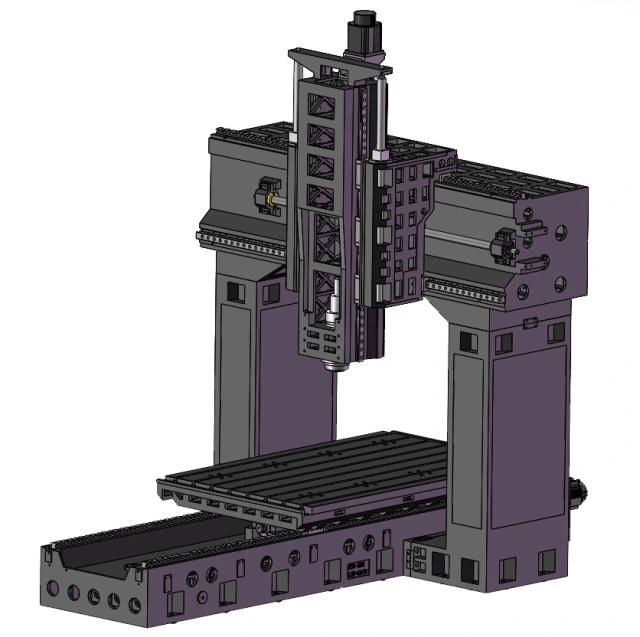

The GS series utilizes finite element analysis (FEM) to optimize casting reinforcing ribs, achieving optimal bed strength. Special reinforcing structures for the X-axis base and Y-axis crossbeam ensure stability and prevent deformation.

GS2312 Gantry Type Machining Center With 6000 12000 RPM Spindle BT50 Taper 0

The four-track Z-axis ram design provides exceptional rigidity while eliminating low-speed crawling and long-term precision loss issues common in traditional hard rail systems.

GS2312 Gantry Type Machining Center With 6000 12000 RPM Spindle BT50 Taper 1
Specifications
Machine Type GS2312
Workbench size 2300x1000 mm
Workbench T-slot (number - size * pitch) 6-22x160 mm
Max. load capacity of the workbench 4500KG
X-axis travel distance 2400mm
Y-axis travel distance 1200mm
Z-axis travel distance 800mm
Gantry Effective Width 1280mm
Distance from spindle face to worktable surface 150-950 mm
Guide rail form Precision Grade P roller-type linear guide
X,Y,Z fast movement speed 20/20/15m/min
X axis Max. torque of motor 85.2N.m
Y axis Max. torque of motor 69N.m
Z axis Max. torque of motor 85.2N.m
Max. spindle speed 6000/12000 rpm
Spindle taper hole BT50 (BT40 Optional)
Spindle motor power 15/18 KW (※18.5/22 KW)
Tool magazine capacity Disc-Type 24Tools
Max. weight of cutting tools 8KG(BT40) / 15KG(BT50)
Air source pressure 0.5-0.8 MPa
Machine size (L x W x H) 5900x3000x3400mm
Standard weight 21000KG
Machine Tool Configuration
CNC system

FANUC, Siemens, SYNTEC, KND, Mitsubishi

GS2312 Gantry Type Machining Center With 6000 12000 RPM Spindle BT50 Taper 2 GS2312 Gantry Type Machining Center With 6000 12000 RPM Spindle BT50 Taper 3
High-quality spindle

Imported bearings

GS2312 Gantry Type Machining Center With 6000 12000 RPM Spindle BT50 Taper 4
Linear guides

THK, PMI, HIWIN, HTPM 45,55 Precision Grade P roller-type

GS2312 Gantry Type Machining Center With 6000 12000 RPM Spindle BT50 Taper 5
Ball screws

THK, PMI, HIWIN C3 grade Ø50 precision ground

GS2312 Gantry Type Machining Center With 6000 12000 RPM Spindle BT50 Taper 6

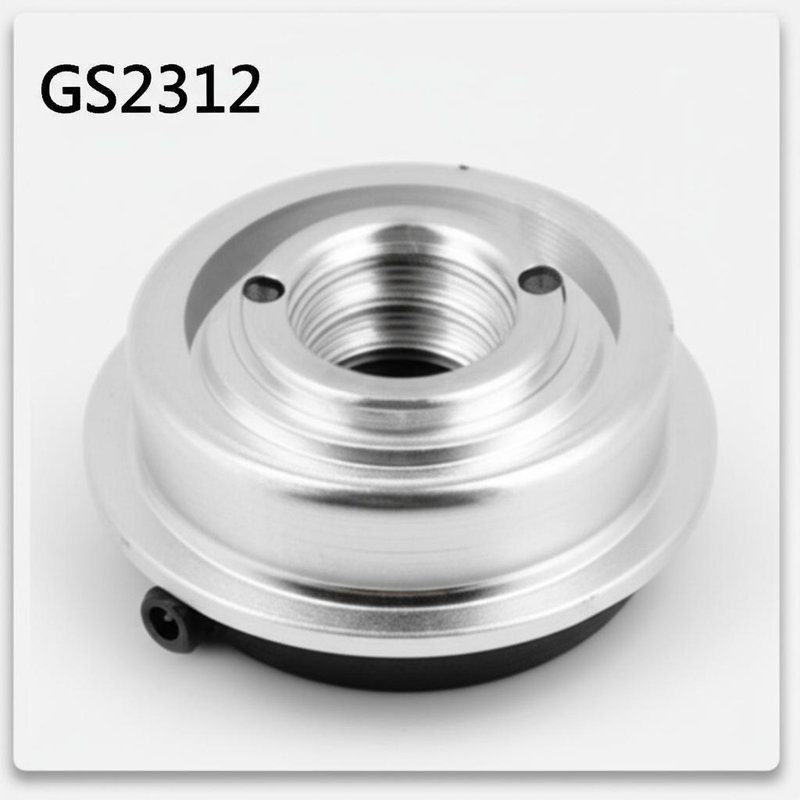

Tool clamping

High-quality tool clamping cylinder

GS2312 Gantry Type Machining Center With 6000 12000 RPM Spindle BT50 Taper 7
Bearings

NSK, SKF, FAG P4 grade imported angular contact paired bearings

GS2312 Gantry Type Machining Center With 6000 12000 RPM Spindle BT50 Taper 8
Couplings

Precision high-rigidity coupling

GS2312 Gantry Type Machining Center With 6000 12000 RPM Spindle BT50 Taper 9
Drive components

Imported high-torque synchronous belts

GS2312 Gantry Type Machining Center With 6000 12000 RPM Spindle BT50 Taper 10
Tool magazine

High-quality disc-type/Umbrella-type ATC

GS2312 Gantry Type Machining Center With 6000 12000 RPM Spindle BT50 Taper 11 GS2312 Gantry Type Machining Center With 6000 12000 RPM Spindle BT50 Taper 12
Chip management

Standard chain-type chip conveyor with small iron chip cart

GS2312 Gantry Type Machining Center With 6000 12000 RPM Spindle BT50 Taper 13
About Shanjmc

Shanjmc is a leader in precision machinery manufacturing, dedicated to advancing industrial standards with innovative solutions. Our machines are crafted from high-grade materials, ensuring strength, resistance to deformation, and excellent shock absorption. We prioritize quality and performance, equipping our machines with advanced components from renowned international brands.

Our Commitment

We provide reliable, high-performance equipment that meets the growing demands of industrial applications. Our scalable designs accommodate various workbench sizes and load capacities, making them ideal for diverse manufacturing needs.

Frequently Asked Questions
Who are we?

We are Hubei Shangjie Precision Machinery Manufacturing Co., Ltd., a leading manufacturer of precision surface grinding machines designed for industrial applications.

How can we guarantee quality?

Through rigorous manufacturing processes and premium materials. Our machines undergo vibration stress relief and secondary tempering to ensure consistent precision and durability.

What can you buy from us?

Precision surface grinding machines, CNC turning centers, machining centers, and tailor-made automation solutions designed for professional and bulk ordering applications.

Why choose Shanjmc?

Our machines feature advanced components ensuring high efficiency and long service life. We offer scalable designs that adapt to future demands, providing long-term value.

What services do we provide?

Product customization, bulk ordering options, and tailor-made automation solutions to enhance your production efficiency.

Can I customize products?

Yes, our machines can be customized to meet specific business needs with scalable designs accommodating various workbench sizes and load capacities.

Do you offer wholesale pricing?

Yes, we provide competitive wholesale pricing for bulk orders, offering long-term value and reliability for growing operations.
