Place of Origin:
China
Certification:
CE ISO certification

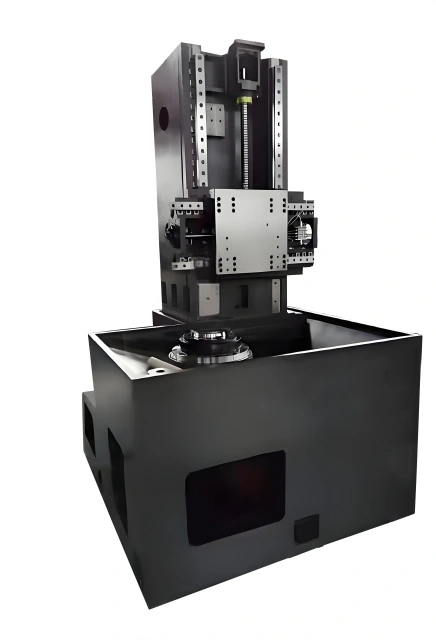

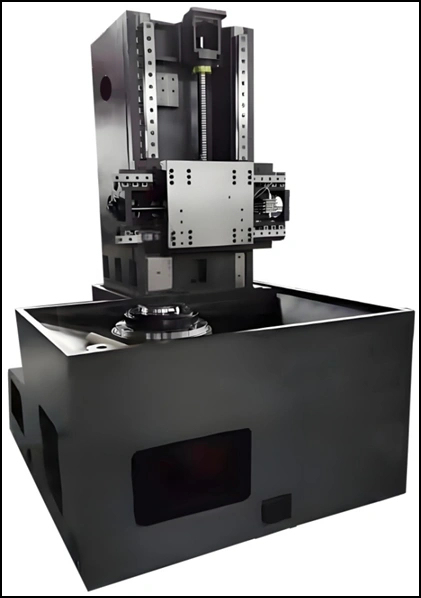

The VT series machine tools are professionally designed and manufactured with a focus on low center of gravity, anti-twist capability, heavy cutting performance, and high material removal efficiency. Featuring a box-type base and widened, thickened Z-axis columns, these machines deliver exceptional rigidity.
Through finite element analysis (FEM), we've optimized the shape and position of reinforcing ribs on castings to achieve optimal bed strength. Special reinforcement structures for the spindle base and Z-axis crossbeam enhance stability and prevent deformation.
| Machine Type | VT600 |
|---|---|
| Max. swing diameter | 650mm |
| Max. turning diameter | 600mm |
| Max. turning height | 520mm |
| Spindle nose | A2-8 |
| Spindle motor power | 15/18.5 KW |
| Max. spindle speed | 2500r/min |
| Chuck Size | 12" / 15"(Optional) |
| X axis travel | -30,+320mm |
| Z axis travel | 550mm |
| X axis rapid feed speed | 24m/min |
| Z axis rapid feed speed | 24m/min |
| Machine dimensions (L*W*H) | 1550*2200*2500mm |
| Standard weight | 5800KG |

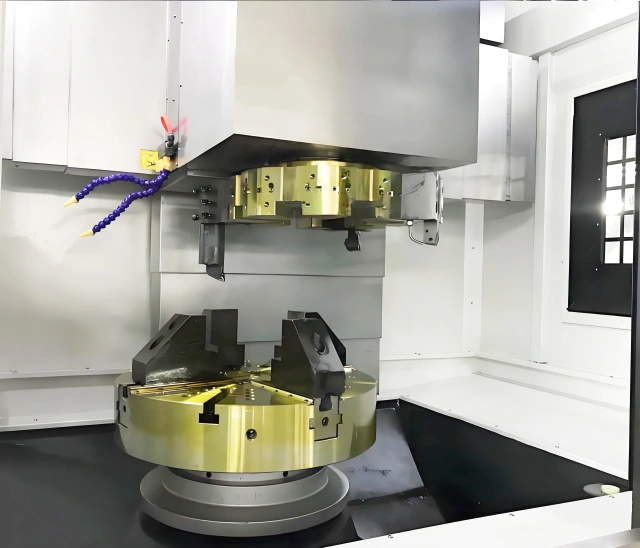

Turn-Mill Capability: Can be equipped with servo power tool turret and various power heads to achieve turning-milling compound functions for complex part processing.

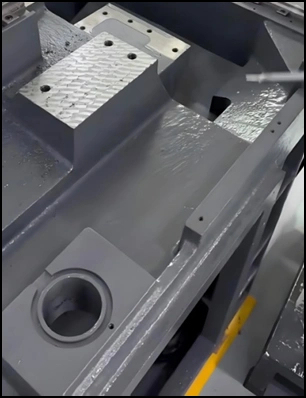

The installation surface features manual scraping process for long-term precision maintenance, enhanced rigidity, and improved anti-vibration performance during operation.

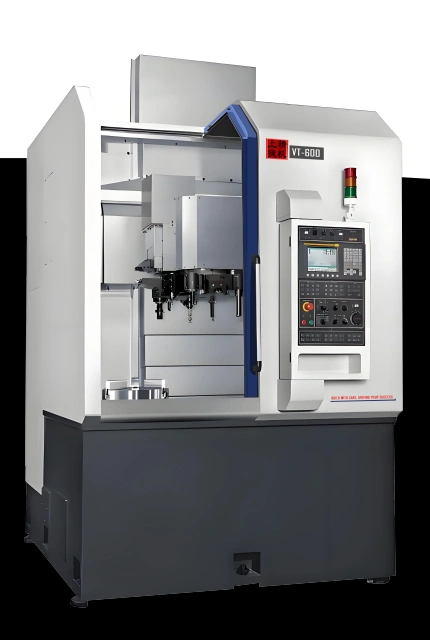

Fully-enclosed stainless steel inner protective sheet metal design with precision engineering ensures reliable waterproof and oil-resistant performance during operation.

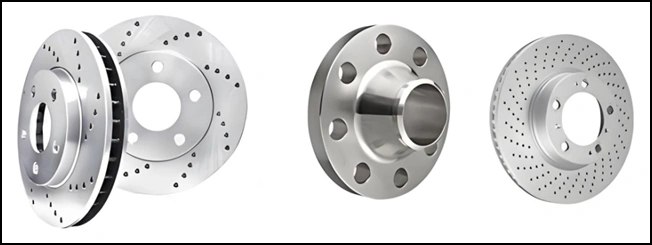

Ideal for automotive manufacturing, aerospace, and shipbuilding industries.
