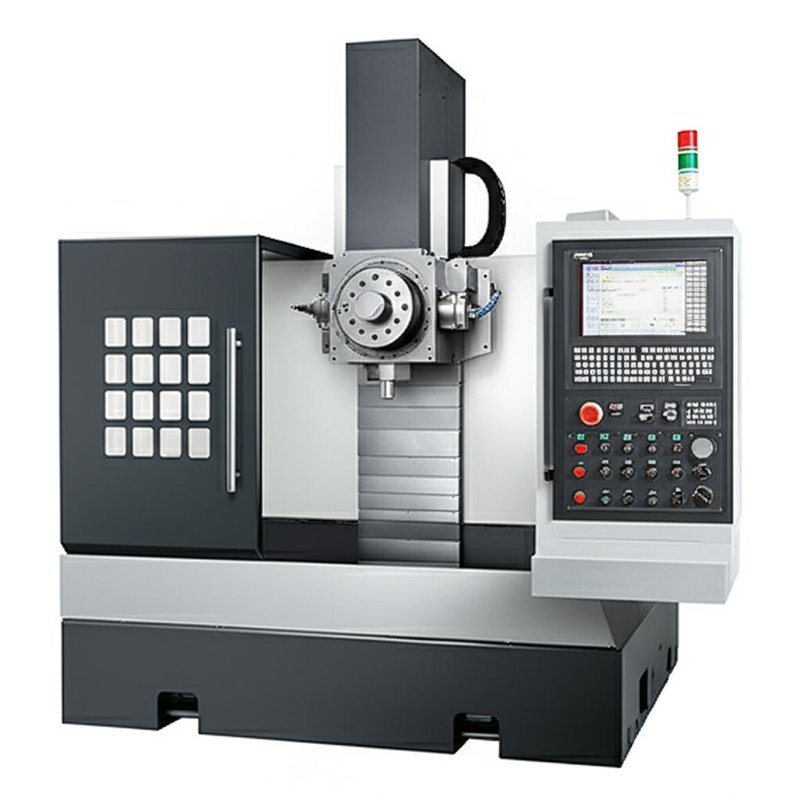

CNC Vertical Turning Center with HT300 High-Grade Castings for Large-Diameter Heavy-Duty Parts and Vertical Spindle Layout
ShangJie PM's CNC vertical turning centers are optimized for large-diameter and heavy-duty parts, offering powerful cutting capabilities with a vertical spindle layout. The vertical design provides better gravity support, ideal for machining disc-shaped components such as brake hubs, gears, and bearings.
- Vertical layout supports heavy parts and improves clamping stability
- High-torque spindle delivers consistent cutting on tough materials
- Suitable for brake parts, bearings, and other round component machining
VT series machine tools are professionally designed and manufactured with the main focus on low center of gravity, anti-twist, heavy cutting, and high material removal efficiency. They adopt a box-type base and widened and thickened Z-axis columns, ensuring excellent rigidity of the entire machine.
By applying finite element analysis (FEM), the shape and position of the reinforcing ribs on the castings are optimized to achieve the best strength of the bed. Additionally, special reinforcement structures are implemented for the spindle base and the Z-axis crossbeam to make the bed more stable and prevent deformation.
Casting Material
Machine castings are made of HT300 high-grade material and undergo vibration stress relief and secondary tempering processes to eliminate internal stress. They feature high strength, strong resistance to deformation, and excellent shock absorption capacity, ensuring that the machine tool maintains stable precision over long-term use.
Specifications
| Machine Type |

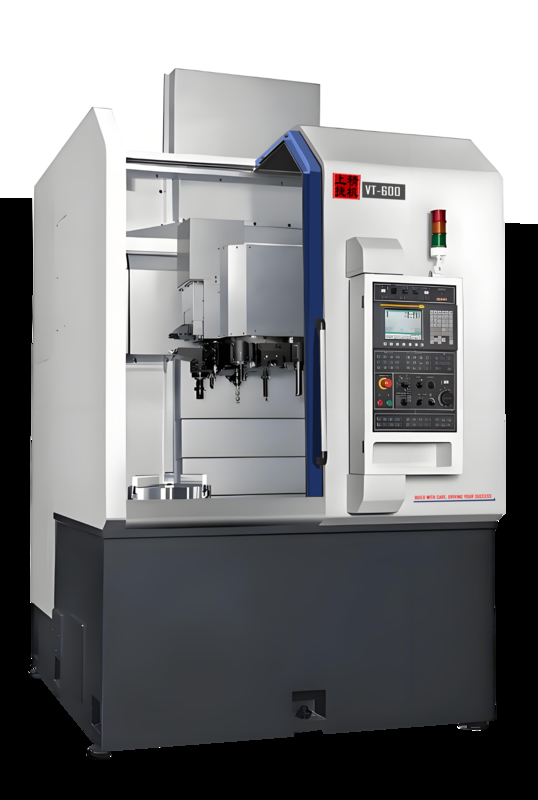

VT600 |
| Max. swing diameter |
650mm |
| Max. turning diameter |
600mm |
| Max. turning height |
520mm |
| Spindle nose |
A2-8 |
| Spindle motor power |
15/18.5 KW |
| Max. spindle speed |
2500r/min |
| Chuck Size |
12" / 15"(Optional) |
| X axis |
-30,+320mm |
| Z axis |
550mm |
| X axis rapid feed speed |
24m/min |
| Z axis rapid feed speed |
24m/min |
| X axis Max. torque of motor |
69N.m |
| Z axis Max. torque of motor |
85.2N.m |
| Servo Tool Turret |
8 Tools |
| OD tool size |
25x25mm |
| Boring tool diameter |
￠40 mm |
| Power turret tool size |
ER32 |
| Air source pressure |
0.5-0.8MPa |
| Machine size (L x W x H) |
1550x2200x2500mm |
| Standard weight |
5800KG |
Expandable Functions
The machine can be equipped with a servo power tool turret as required, and various types of power heads can be configured to achieve turning and milling compound functions, solve the processing requirements of complex parts, and improve processing efficiency.
The installation surface adopts manual scraping process, which enables the machine tool to maintain its initial accuracy for a long time. It also enhances the rigidity of the machine tool, as well as its anti-vibration performance and stability during processing.
Application Advantages
The entire series employs a fully-enclosed stainless steel inner protective sheet metal design. Its scientific layout, precision engineering, and superior sealing ensure reliable waterproof and oil-resistant performance during operation.
Company Advantages
Our company has passed the quality system certification. We have independent design and R&D capabilities. Our company is equipped with large gantry machining centers, five-axis machining centers, vertical machining centers and other large-scale processing equipment. We have a dedicated after-sales service team, committed to providing customers with convenient and efficient after-sales service.
Product Advantages
Our machine tools use HT300 high-grade castings with an ergonomic design. We select imported functional components, ensuring long-term dimensional stability without deformation. We have independent design and R&D capabilities, completing all processes from casting to sheet metal fabrication in-house, allowing for quality control.
Application Scenarios
It is applicable to mechanical processing fields such as automotive manufacturing, aerospace, and shipbuilding.
Frequently Asked Questions
Q: Manufacturer or trading company? Where is the company located?
A: We are a professional manufacturer of CNC lathes, located in Shiyan City, Hubei Province.
Q: How long have you been involved in this market?
A: We have been engaged in the auto parts industry for 10 years.
Q: Can you provide a product catalog?
A: Contact our business manager, we will send the product catalog you need to your mailbox.
Q: About the terms and conditions of payment.
A: When you quote, we will confirm with you the trading method (FOB, CIF, CNF or other methods). In mass production we usually pay 30% advance payment first then see the balance of the bill of lading. Most of the payment methods are T/T, of course, L/C is also acceptable.
Q: Product after-sales service scope and service period
A: We offer a one-year warranty and 24-hour lifetime technical support.
