HMC500 Horizontal Machining Center with HT300 High-Grade Castings Precision Grade P Roller-Type Linear Guide and 8000/12000 RPM Spindle Speed
Product Overview
The HMC series of machine tools features an advanced T-shaped integral bed structure with gantry-type column and front-hung box layout. Designed for exceptional rigidity and precision retention, these machines emphasize low center of gravity, anti-twist construction, rust resistance, heavy cutting capability, and high material removal efficiency.
Company Advantages
- Quality system certified manufacturer
- Independent design and R&D capabilities
- Equipped with large gantry machining centers, five-axis machining centers, and vertical machining centers
- Dedicated after-sales service team
Product Advantages
- HT300 high-grade castings with ergonomic design
- Imported functional components for long-term dimensional stability
- Complete in-house manufacturing from casting to sheet metal fabrication
- Strict quality control throughout production
Applications
Ideal for mechanical processing in automotive manufacturing, aerospace, and shipbuilding industries.

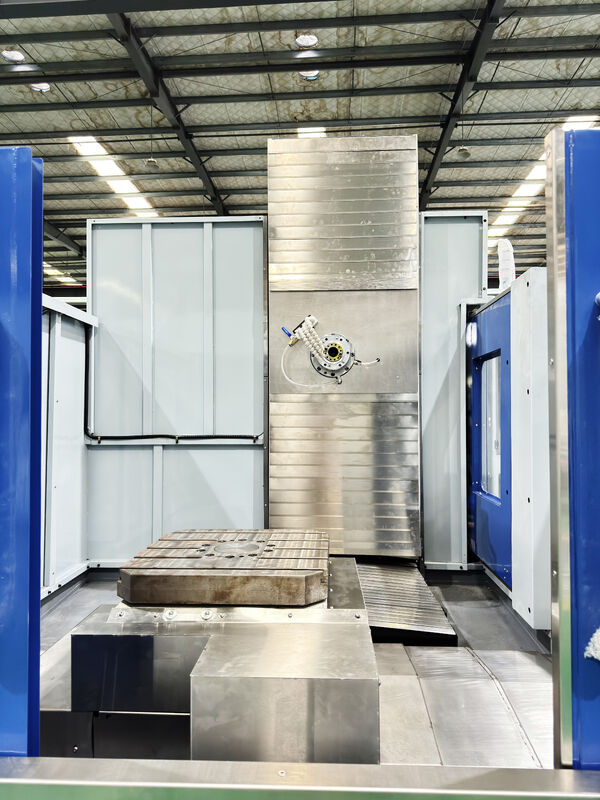

Machine Structure
The machine features finite element analysis (FEM) optimized reinforcing ribs for optimal bed strength. Special reinforcement structures on the Y-axis base and column enhance heavy cutting capability and extend tool life.
Specifications
| Machine Type |
HMC500 |
| Workbench size |
500x500 mm |
| Workbench T-slot |
5-18x100 mm |
| Max. load capacity |
800KG |
| X-axis travel distance |
1100mm |
| Y-axis travel distance |
650mm |
| Z-axis travel distance |
600mm |
| Guide rail form |
Precision Grade P roller-type linear guide |
| X,Y,Z fast movement speed |
30m/min |
| Max. spindle speed |
8000/12000 rpm |
| Spindle taper hole |
BT40 (BT50 Optional) |
| Tool magazine capacity |
Disc-Type 24Tools |
| Positioning accuracy |
0.01mm |
| Repeatability positioning accuracy |
0.006mm |
| Machine size (L x W x H) |
2700x3000x2800mm |
| Standard weight |
8500KG |
Machine Tool Configuration
CNC Systems
FANUC, Siemens, SYNTEC, KND, Mitsubishi
Spindle
High-quality spindle with imported bearings
Linear Guides
THK, PMI, HIWIN, HTPM 45,55 Precision Grade P roller-type
Frequently Asked Questions
Who are we?
We are Hubei Shangjie Precision Machinery Manufacturing Co., Ltd., a leading manufacturer of precision surface grinding machines designed for industrial applications. Our PSG/GM Series machines are renowned for their high rigidity and precision, crafted from HT300 high-grade material to ensure stable performance over long-term use.
How can we guarantee quality?
We guarantee quality through rigorous manufacturing processes and the use of premium materials like HT300 high-grade castings. Our machines undergo vibration stress relief and secondary tempering processes to eliminate internal stress, ensuring consistent precision and durability.
What can you buy from us?
You can purchase a wide range of industrial equipment including precision surface grinding machines, CNC turning centers, machining centers, and tailor-made automation solutions. Our products are designed to meet the demanding needs of professional and bulk ordering applications.
Why should you buy from us not from other suppliers?
Choosing Shanjmc means investing in unmatched precision and rigidity. Our machines feature advanced components like hydrostatic spindles and ultra-precision linear guides, ensuring high efficiency and long service life. We offer scalable designs to adapt to future demands, providing long-term value and reliability.
Can I customize this product for my business?
Yes, our precision surface grinding machines can be customized to meet your specific business needs. We offer scalable designs that accommodate various workbench sizes and load capacities, ensuring that our machines fit seamlessly into your production environment.
Do you offer wholesale pricing?
Absolutely, we provide competitive wholesale pricing for bulk orders. Our precision surface grinding machines are ideal for grinding machine manufacturers looking to expand their capabilities and meet growing market demands, offering long-term value and reliability.
