Place of Origin:
China
Certification:
CE ISO certification

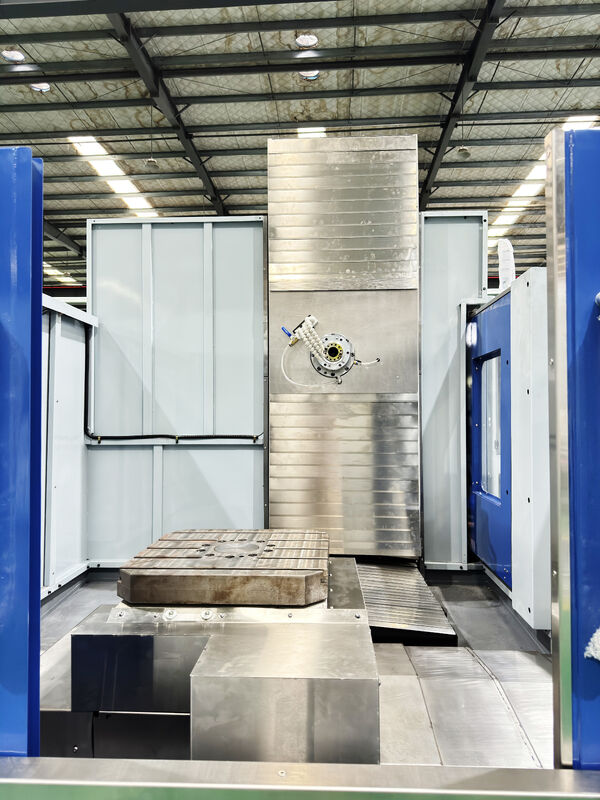

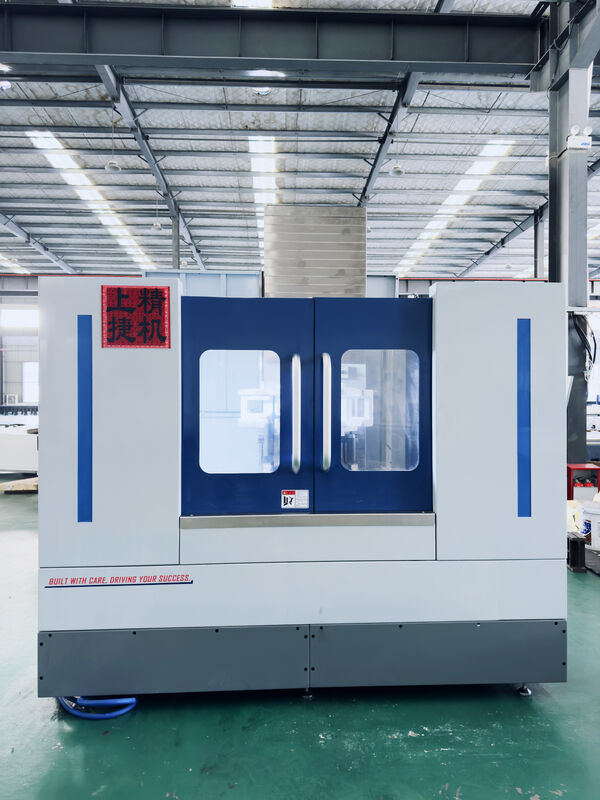

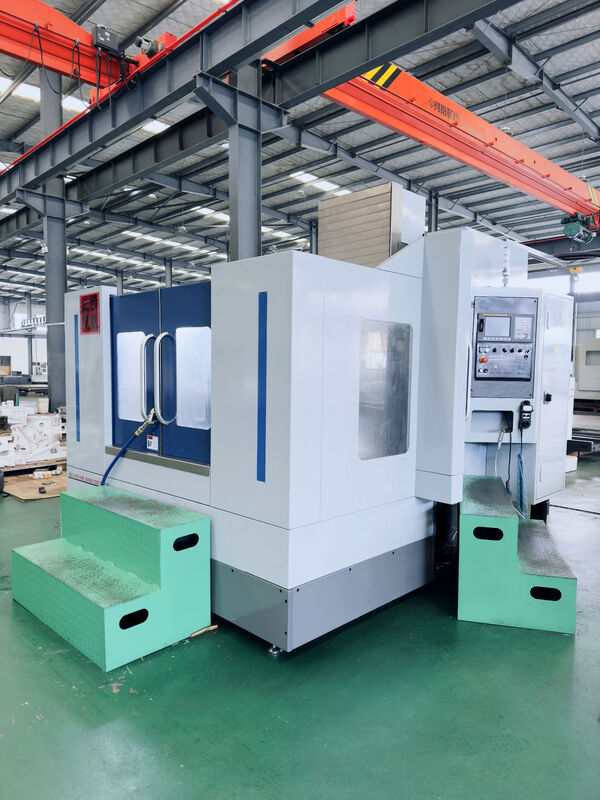

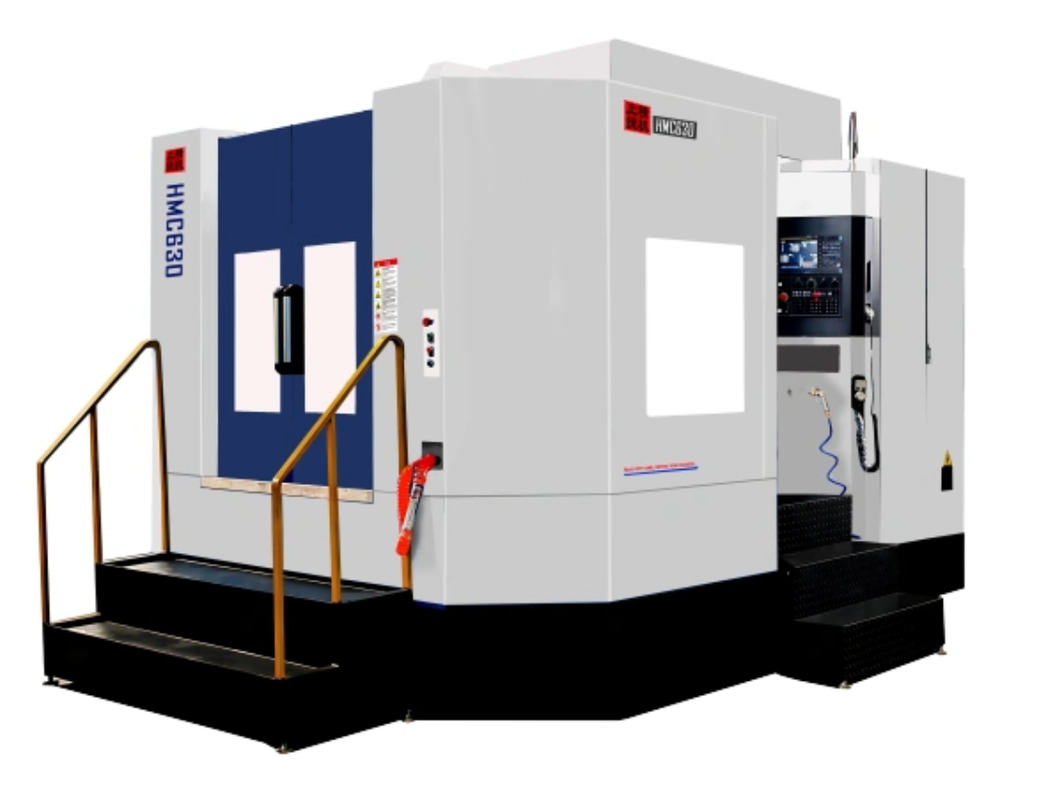

The HMC series of machine tools features an advanced T-shaped integral bed structure with gantry-type column and front-hung box layout, delivering exceptional rigidity and precision retention. Engineered for industrial durability, these machines emphasize low center of gravity, anti-twist construction, rust resistance, heavy cutting capability, and high material removal efficiency.
Through finite element analysis (FEM), we've optimized the casting reinforcement rib placement to achieve optimal bed strength. The Y-axis base and column feature special reinforcement structures specifically designed for heavy cutting applications, extending tool life and machining performance.
| Specification | Value |
|---|---|
| Machine Type | HMC1000 |
| Workbench size | 1000×1000 mm |
| Workbench T-slot (number - size × pitch) | 7-22×130 mm |
| Max. load capacity of the workbench | 2100 kg |
| X-axis travel distance | 1600 mm |
| Y-axis travel distance | 1000 mm |
| Z-axis travel distance | 1100 mm |
| Distance from spindle centerline to worktable surface | 20-1020 mm |
| Distance from spindle face to worktable center | 250-1350 mm |
| Guide rail form | Precision Grade P roller-type linear guide |
| X,Y,Z rapid traverse rate | 24 m/min |
| X-axis motor max. torque | 69 N·m |
| Y-axis motor max. torque | 85.2 N·m |
| Z-axis motor max. torque | 85.2 N·m |
| Max. spindle speed | 6000 rpm |
| Spindle taper | BT50 |
| Spindle motor power | 15/18 kW |
| Tool magazine capacity | Disc-Type 30 tools |
| Max. tool weight | 8 kg (BT40) / 15 kg (BT50) |
| Air pressure | 0.5-0.8 MPa |
| Positioning accuracy | 0.012 mm |
| Repeat positioning accuracy | 0.008 mm |
| B-axis positioning accuracy | 10" |
| B-axis repeat positioning accuracy | 6" |
| Machine dimensions (L × W × H) | 5600×4300×3100 mm |
| Standard weight | 21000 kg |
FANUC, Siemens, SYNTEC, KND, Mitsubishi

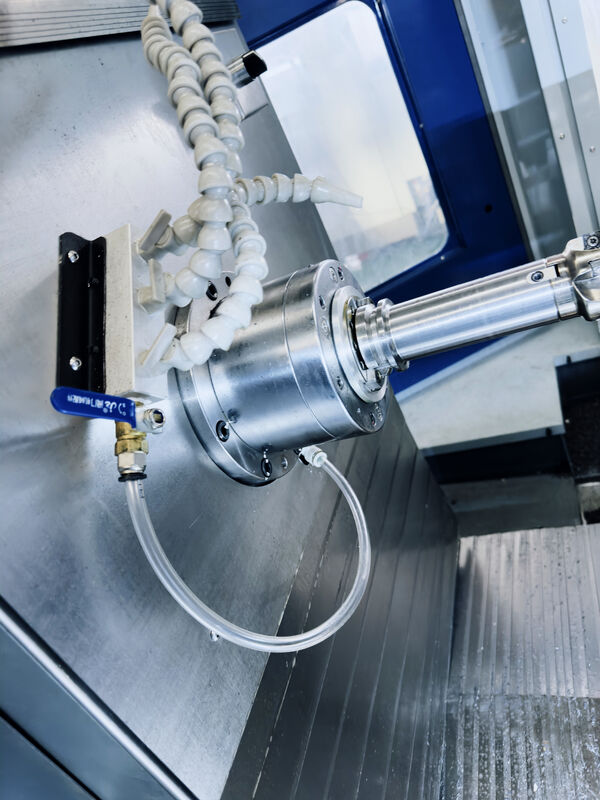

Premium spindle with imported bearings
THK, PMI, HIWIN, HTPM 45/55 Precision Grade P roller-type linear guides

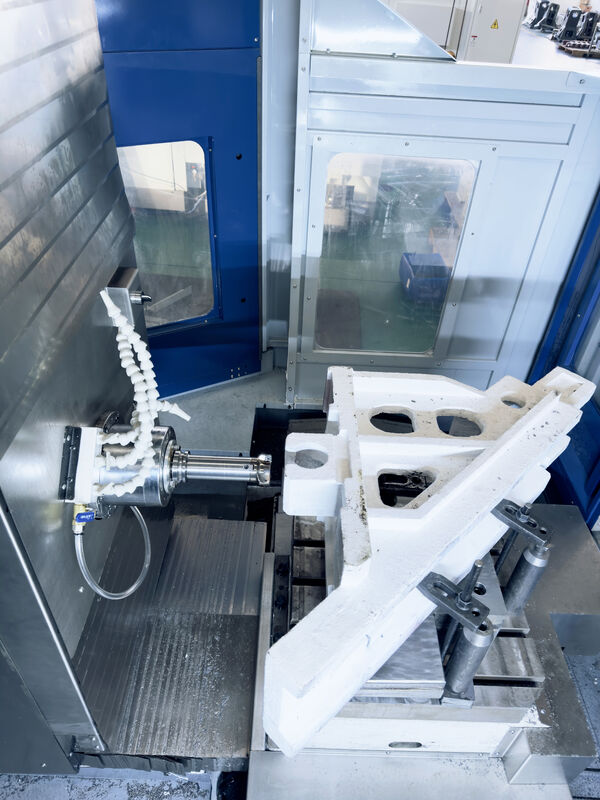

Standard lift-free turntable with continuous positioning and indexing to 0.001°. Features slider direct connection structure for high rigidity and precision.
Double lead precision worm gear system provides zero-clearance transmission with 20,000-hour maintenance-free lifespan. Features large transmission ratio and self-locking properties ideal for milling operations.
Imported P4 grade precision turntable bearings with three-row roller design provide exceptional axial and radial support, delivering strong clamping torque and anti-overturning capability.
Standard chain-type chip conveyor with small iron chip cart
High-quality disc-type/umbrella-type ATC tool magazine
Shanjmc is a leader in precision machinery manufacturing, dedicated to advancing industrial standards with innovative solutions. Our machines are crafted from high-grade materials, ensuring strength, resistance to deformation, and excellent shock absorption. We prioritize quality and performance, equipping our machines with advanced components from renowned international brands.
Our scalable designs accommodate various workbench sizes and load capacities, making them ideal for diverse industrial applications. We are committed to providing reliable, high-performance equipment that meets growing industry demands.
We are Hubei Shangjie Precision Machinery Manufacturing Co., Ltd., a leading manufacturer of precision machining equipment for industrial applications.
We implement rigorous manufacturing processes using premium materials. Our machines undergo vibration stress relief and secondary tempering to ensure consistent precision and durability.
We manufacture precision machining centers, CNC turning centers, and custom automation solutions designed for professional and bulk ordering applications.
Our machines feature advanced components ensuring high efficiency and long service life. We offer scalable designs that adapt to future demands, providing long-term value and reliability.
Yes, we provide customized solutions to meet specific business needs, including various workbench sizes and load capacities.
We provide competitive wholesale pricing for bulk orders, offering excellent value for expanding manufacturing capabilities.
