HMC Horizontal Machining Center With BT50 Spindle Taper Hole 15 18KW Spindle Motor Power

HMC Horizontal Machining Center With BT50 Spindle Taper Hole 15 18KW Spindle Motor Power

HMC Horizontal Machining Center

60m/min Horizontal Machining Center

220V hmc machine

Place of Origin:

China

Certification:

CE ISO certification

Model Number:

HMC1000

Chat Now
Request A Quote

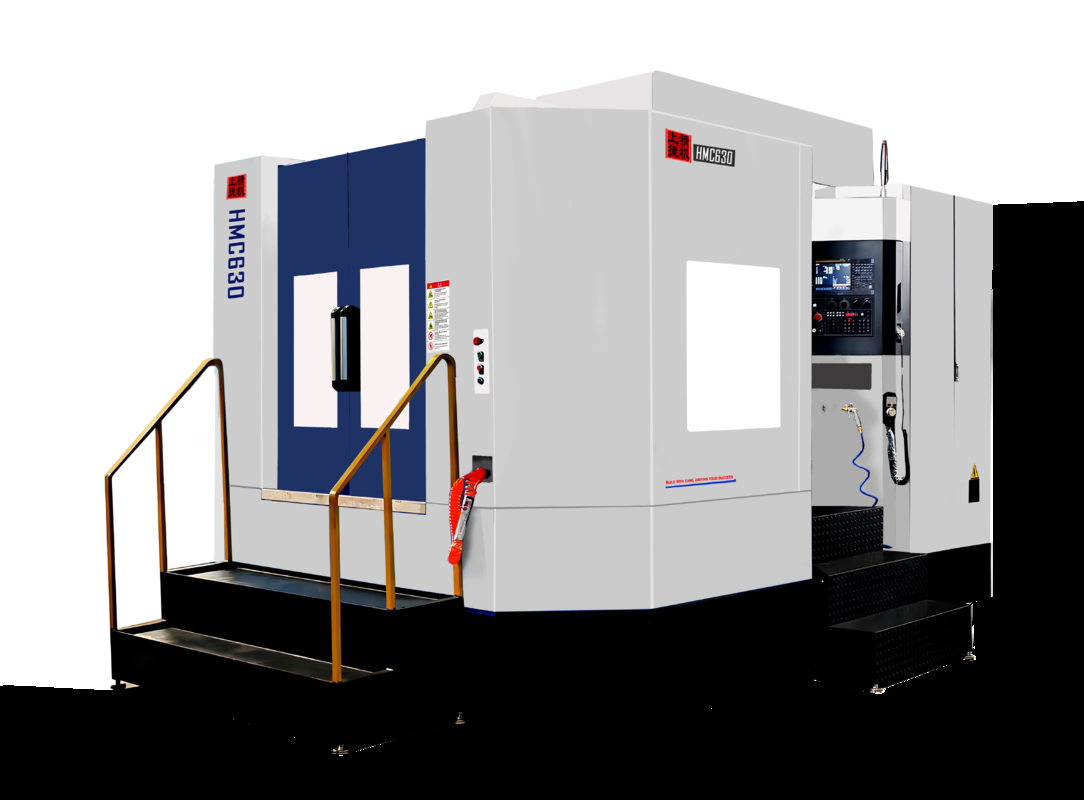

HMC Horizontal Machining Center With BT50 Spindle Taper Hole 15 18KW Spindle Motor Power
HMC Horizontal Machining Center With BT50 Spindle Taper Hole 15 18KW Spindle Motor Power HMC Horizontal Machining Center With BT50 Spindle Taper Hole 15 18KW Spindle Motor Power
Product Details
Power_Requirement:
AC 220V/380V, 50/60Hz
Pallet_Change_Time:
6 Seconds
Maximum Tapping Diameter:
Φ20
Warranty:
1 Year
Spindle_Speed:
10,000 RPM
Rapid_Traverse_Rate:
60 M/min
Suitable For:
Various Box Parts Rough Finishing
Main Motor Power:
15/18.5kw
Processing Capabilities:
High Precision And High Efficiency
Table Surface Type:
T-slot
Control System:
GSK SIEMENS FANUC
Table Graduation:
1°*360
Table_Size:
500mm X 500mm
Max_Load_Capacity:
500kg
Tool_Capacity:
30 Tools
Highlight:

HMC Horizontal Machining Center

,

60m/min Horizontal Machining Center

,

220V hmc machine

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time
45-60 days
Payment Terms
T/T,L/C,,Western Union
Supply Ability
45-60 days
RELATED PRODUCTS
Good price HMC800 CNC Milling Horizontal Machining Center With 800 X 800mm Workbench online Video

HMC800 CNC Milling Horizontal Machining Center With 800 X 800mm Workbench

Chat Now
Good price HMC630 Horizontal Machining Center With 630x630mm Workbench 1200KG 6000RPM Spindle Speed online Video

HMC630 Horizontal Machining Center With 630x630mm Workbench 1200KG 6000RPM Spindle Speed

Chat Now
Good price HMC1000 CNC Horizontal Machining Center High Precision 220V 380V 10000RPM online Video

HMC1000 CNC Horizontal Machining Center High Precision 220V 380V 10000RPM

Chat Now
Good price HMC Horizontal Machining Center With BT50 Spindle Taper Hole 15 18KW Spindle Motor Power online Video

HMC Horizontal Machining Center With BT50 Spindle Taper Hole 15 18KW Spindle Motor Power

Chat Now
CONTACT US
86--15221502418
bear02@shanjmc.com
Chat Now
Product Description
Horizontal Machining Center
ShangJie PM's horizontal machining centers are engineered for high-efficiency, multi-surface milling in precision parts manufacturing. Featuring a horizontal spindle and rotary pallet system, these machines enable continuous four-side machining with minimal repositioning. The design provides excellent chip evacuation and thermal stability, making it ideal for cutting steel, aluminum, and cast iron components.
Key Features
  • Rotary pallets enable efficient multi-surface machining
  • Horizontal design improves chip evacuation and cutting consistency
  • Suitable for complex, high-volume parts in automotive and heavy industries
Machine Structure
The HMC series adopts an advanced T-shaped integral bed structure with gantry-type column and front-hung box layout. Designed for low center of gravity, anti-twist, and heavy cutting capability, it features:
  • Strong rigidity and precision retention
  • Finite element analysis (FEM) optimized casting structure
  • Special reinforcement for Y-axis base and column
  • High material removal efficiency
HMC Horizontal Machining Center With BT50 Spindle Taper Hole 15 18KW Spindle Motor Power 0
Technical Specifications
Machine Type HMC1000
Workbench size 1000x1000 mm
Workbench T-slot 7-22x130 mm
Max. load capacity 2100KG
X-axis travel distance 1600mm
Y-axis travel distance 1000mm
Z-axis travel distance 1100mm
Guide rail form Precision Grade P roller-type linear guide
Max. spindle speed 6000 rpm
Spindle taper hole BT50
Tool magazine capacity Disc-Type 30Tools
Positioning accuracy 0.012mm
Machine dimensions 5600x4300x3100mm
Standard weight 21000KG
Machine Tool Configuration
CNC system options: FANUC, Siemens, SYNTEC, KND, Mitsubishi
HMC Horizontal Machining Center With BT50 Spindle Taper Hole 15 18KW Spindle Motor Power 1 HMC Horizontal Machining Center With BT50 Spindle Taper Hole 15 18KW Spindle Motor Power 2
High-quality spindle with imported bearings
HMC Horizontal Machining Center With BT50 Spindle Taper Hole 15 18KW Spindle Motor Power 3
THK, PMI, HIWIN, HTPM 45,55 Precision Grade P roller-type linear guide
Company Profile
Established in 2007, we specialize in CNC machine tool R&D and production with over 10 years of industry experience.
Quality Assurance
  • HT300 high-grade castings with ergonomic design
  • Imported functional components for long-term stability
  • Complete in-house manufacturing process from casting to sheet metal fabrication
  • Quality system certified
Frequently Asked Questions
Q: Manufacturer or trading company? Where is the company located?
A: We are a professional manufacturer of CNC lathes, located in Shiyan City, Hubei Province.
Q: How long have you been involved in this market?
A: We have been engaged in the auto parts industry for 10 years.
Q: What is your after-sales service policy?
A: We offer a one-year warranty and 24-hour lifetime technical support.
