GMC1812 Automatic CNC Gantry Machining Center Medium Duty CNC Gantry Milling Machine with BT50 Spindle

GMC1812 Automatic CNC Gantry Machining Center Medium Duty CNC Gantry Milling Machine with BT50 Spindle

BT50 Spindle Design

Table Size 1800*1000

Medium Duty Gantry Milling

Place of Origin:

Hubei, China

Model Number:

GMC1812

Chat Now
Request A Quote
GMC1812 Automatic CNC Gantry Machining Center Medium Duty CNC Gantry Milling Machine with BT50 Spindle GMC1812 Automatic CNC Gantry Machining Center Medium Duty CNC Gantry Milling Machine with BT50 Spindle GMC1812 Automatic CNC Gantry Machining Center Medium Duty CNC Gantry Milling Machine with BT50 Spindle GMC1812 Automatic CNC Gantry Machining Center Medium Duty CNC Gantry Milling Machine with BT50 Spindle GMC1812 Automatic CNC Gantry Machining Center Medium Duty CNC Gantry Milling Machine with BT50 Spindle GMC1812 Automatic CNC Gantry Machining Center Medium Duty CNC Gantry Milling Machine with BT50 Spindle
Product Details
Features:
Exceptional Accuracy
Spindle Taper:
BT50
No. Of Spindles:
1
Type:
Gantry
Dimension(l*w*h):
520*300*340
Weight (t):
18
Table Size:
1800*1000
Cnc Control System:
KND
Table Travel (x) (mm):
1850
Table Travel (y) (mm):
1200
Table Travel (z) (mm):
800
Positioning Accuracy:
±0.005
Repeatability (x/y/z) (mm):
±0.005
Range Of Spindle Speed:
6000 - 12000
Max. Table Load(kg):
3000
Min. Time Of Tool Change(s):
3

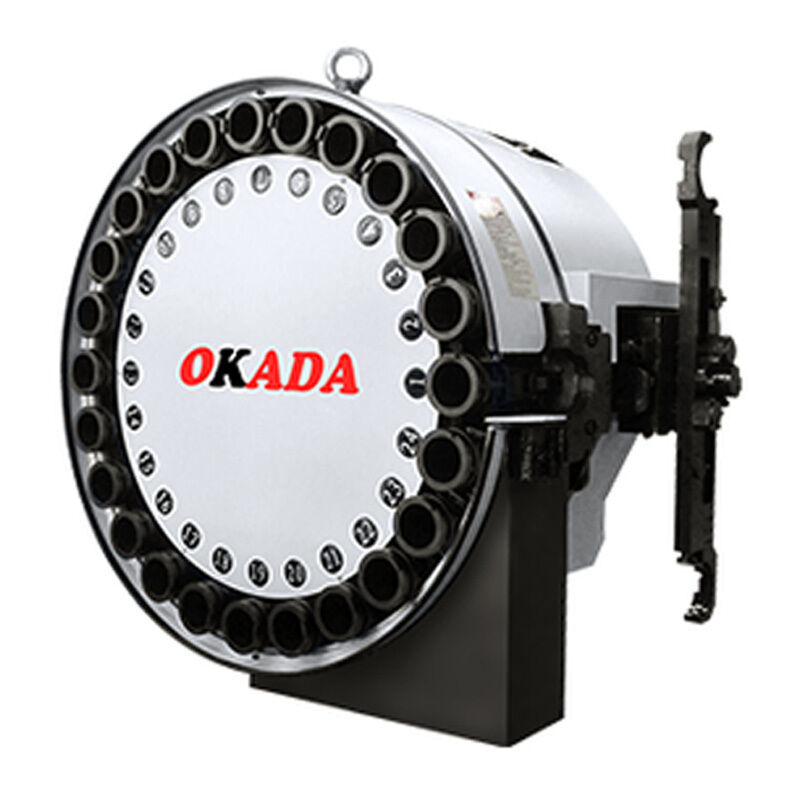

Tool Magazine Capacity:
24
Key Selling Points:
Multifunctional, Automatic, Competitive Price, High Safety Level, High-Accuracy, High Productivity, Long Service Life, Easy To Operate, Flexible Manufacturing, Digital
Warranty:
1 Year
Voltage:
380 V
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Machining Capacity:
Medium Duty
Rapid Feed Speed:
15 - 20
Machine Type:
GMC1812 Gantry Machining Center
Repeatability:
+/-0.005mm
Axis Travel:
X1850/Y1200mm
Spindles:
Up To 3 Spindles
Application:
Large Mold, Metal Parts
Highlight:

BT50 Spindle Design

,

Table Size 1800*1000

,

Medium Duty Gantry Milling

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$44,000
RELATED PRODUCTS
Good price GS1812 CNC Gantry Machine Multifunctional High Safety Level 0.005mm Repeatability Heavy Duty online

GS1812 CNC Gantry Machine Multifunctional High Safety Level 0.005mm Repeatability Heavy Duty

Chat Now
Good price GMC2315 Heavy-Duty CNC Milling Machine Gantry Type CNC Mold Milling Machine online

GMC2315 Heavy-Duty CNC Milling Machine Gantry Type CNC Mold Milling Machine

Chat Now
Good price GS2015 Heavy-Duty Gantry CNC Machining Center Vertical CNC Milling Industrial Metal Machining online

GS2015 Heavy-Duty Gantry CNC Machining Center Vertical CNC Milling Industrial Metal Machining

Chat Now
Good price GMF2312 High Load Heavy-Duty Fixed Beam CNC Gantry Milling Machine BT50 Gear Spindle Metal Machining online

GMF2312 High Load Heavy-Duty Fixed Beam CNC Gantry Milling Machine BT50 Gear Spindle Metal Machining

Chat Now
Contact Us
86--15221502418
bear02@shanjmc.com
Chat Now
Product Description
Product descriptions from the supplier

High Precision: Achieves ±0.005 mm repeatability for exceptional accuracy.

Heavy Duty Design: Built for large mold and metal parts processing.

Large Table Travel: Extends up to 1850 mm (X-axis) and 1200 mm (Y-axis).

Multiple Spindles: Supports up to 3 spindles for versatile operations.

Easy to Operate: Simplified control system for efficient use.

GMC1812 Automatic CNC Gantry Machining Center Medium Duty CNC Gantry Milling Machine with BT50 Spindle
GMC1812 Automatic CNC Gantry Machining Center Medium Duty CNC Gantry Milling Machine with BT50 Spindle
GMC1812 Automatic CNC Gantry Machining Center Medium Duty CNC Gantry Milling Machine with BT50 Spindle
GMC1812 Automatic CNC Gantry Machining Center Medium Duty CNC Gantry Milling Machine with BT50 Spindle
About this supplier

Hubei Shangjie Precision Machinery Manufacturing Co., Ltd. is a leading manufacturer specializing in CNC machining centers, with a 20,000m2 workshop. The company offers high-precision, heavy-duty equipment like the GS1812, featuring ±0.005mm repeatability and 1850mm X-axis travel. ISO 9001 certified, it employs advanced quality control with laser interferometers and HT300 castings, ensuring stable machine performance.

Company overview
GMC1812 Automatic CNC Gantry Machining Center Medium Duty CNC Gantry Milling Machine with BT50 Spindle
Factory profile
GMC1812 Automatic CNC Gantry Machining Center Medium Duty CNC Gantry Milling Machine with BT50 Spindle
exhibition event
GMC1812 Automatic CNC Gantry Machining Center Medium Duty CNC Gantry Milling Machine with BT50 Spindle
certificate
GMC1812 Automatic CNC Gantry Machining Center Medium Duty CNC Gantry Milling Machine with BT50 Spindle
Customization capabilities
GMC1812 Automatic CNC Gantry Machining Center Medium Duty CNC Gantry Milling Machine with BT50 Spindle
Packaging & shipping specifications
GMC1812 Automatic CNC Gantry Machining Center Medium Duty CNC Gantry Milling Machine with BT50 Spindle
FAQ
GMC1812 Automatic CNC Gantry Machining Center Medium Duty CNC Gantry Milling Machine with BT50 Spindle
