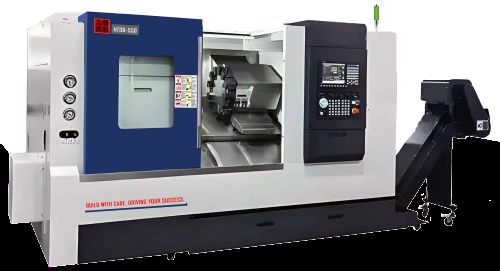

Name: 600mm Swing Diameter 360mm Machining Diameter 300 500 700mm CNC Turn Mill Center Machine
Brand: Hubei Shangjie Precision Machinery Manufacturing Co., Ltd.
SKU: HT08ZY-300/500/700
Price: Negotiable USD
Availability: InStock

Home > Products > CNC Turning Center >

600mm Swing Diameter 360mm Machining Diameter 300 500 700mm CNC Turn Mill Center Machine

Turn-Mill Compound Function

600mm Swing Diameter

300/500/700mm Length Options

Place of Origin:

Hubei, China

Brand Name:

ShangJie PM

Certification:

CE, ISO

Model Number:

HT08ZY-300/500/700

Document:

CNC Turning Center.pdf

Chat Now

Request A Quote

Product Details

Features:

Heavy-Duty Cutting, Batch Production

X Axis Travel:

220mm

Number Of Axes:

Bar Diameter:

52mm

Z Axis Trave:

450mm

Warranty:

1 Year

Type:

Horizontal

X Travel:

210mm

Chuck:

160mm

Port:

Qingdao Port

Main Motor Power:

11kw

Machining Capacity:

Light Duty

After Warranty Service:

Video Technical Support, Online Support

Weight:

4300kgs

Spindle Speed Range:

3000rpm

Machine Weight:

6,500 Lbs

Machine Type:

HT08ZY Turn-Mill Center

Max Swing Diameter:

600mm

Max Machining Diameter:

360mm

Max Machining Length:

300/500/700mm

Tool Turret:

Y-Axis Tool Turret

Tailstock:

With Tailstock

Application:

Flanges, Shafts, Connectors

Highlight:

Turn-Mill Compound Function

600mm Swing Diameter

300/500/700mm Length Options

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

The wooden case，Tin trunk ,Other seaworthy packing

Delivery Time

45-60 days

Payment Terms

T/T,L/C,Western Union

Supply Ability

45-60 days

730mm Max Swing Diameter CNC Turning Center 1050-2050mm Max Machining Length Precision Large Scale

Chat Now

HTL18Y Series CNC Turning Center Servo Power Tool Turret Y Axis Interpolation Precision Spindle Control

Chat Now

HTL18ZY CNC Turning Center 730mm Max Swing Diameter 520mm Max Machining Diameter 1050-2050mm Length

Chat Now

830mm Max Swing Diameter CNC Turning Center 40mm Spindle Unit Precision Large Scale Machine

Chat Now

86--15221502418

bear02@shanjmc.com

Chat Now

Product Description

Length Configurations: The "300/500/700" designates the three available maximum machining length capacities (300 mm, 500 mm, and 700 mm) for this tailstock-equipped Y-axis turning center.
Z-Axis & Tailstock Correlation: Each machining length directly dictates the corresponding Z-axis travel (450 mm, 650 mm, or 850 mm) and the MT-5# tailstock travel (250 mm, 350 mm, or 400 mm).
Machine Weight Variance: Because of the different bed lengths required to accommodate the 300/500/700 mm capacities, the standard machine weight scales accordingly to 4.6T, 5.5T, and 6.5T.
Shared Core Specs: Regardless of the chosen length, all HT08ZY models feature a 10" hydraulic chuck, an 11/15 kW spindle motor (A2-8 nose), and a ±65 mm Y-axis travel.
