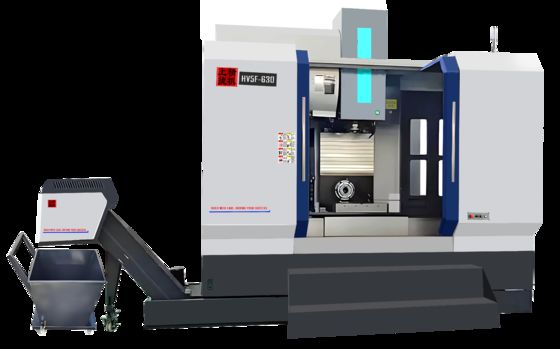

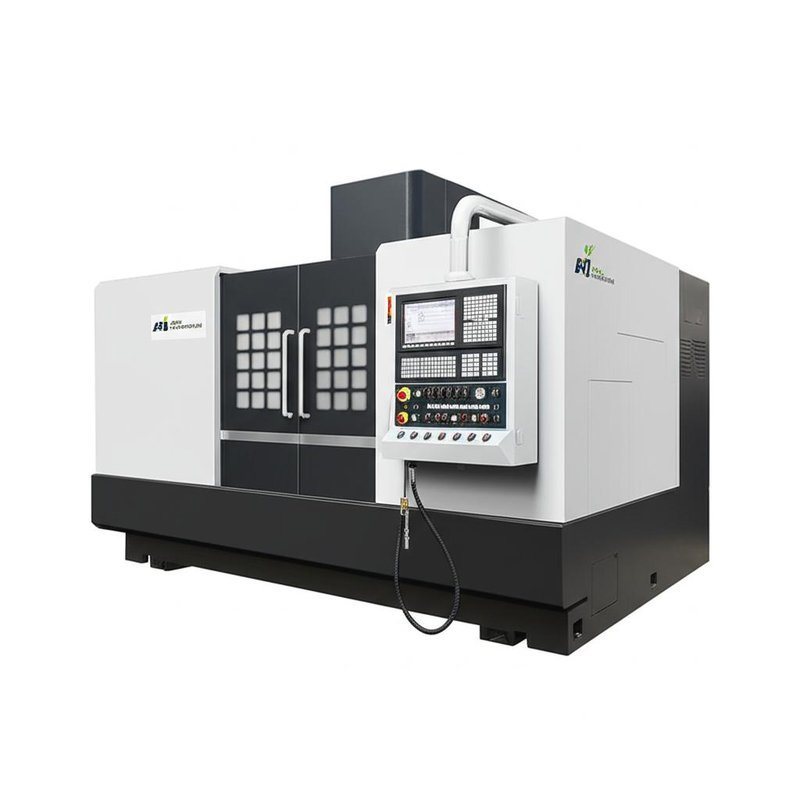

Name: HV5F Series Vertical Horizontal Dual Purpose Five Sided Machining Center High Precision
Brand: Hubei Shangjie Precision Machinery Manufacturing Co., Ltd.
SKU: HV5F-1000
Availability: InStock

Home > Products > Five Sided Machining Center >

HV5F Series Vertical Horizontal Dual Purpose Five Sided Machining Center High Precision

Vertical Five Sided Machining Center

Horizontal Five Sided Machining Center

High Precision Five Sided Machining Center

Place of Origin:

China

Certification:

CE ISO certification

Model Number:

HV5F-1000

Chat Now

Request A Quote

Product Details

Table Size:

800mm X 500mm

X-Axis Travel:

800mm

Accuracy:

0.01mm

Product Type:

Machining Center

Y-Axis Travel:

500mm

Spindle Speed:

10,000 RPM

Control System:

CNC

Table Load Capacity:

500kg

Tool Capacity:

Coolant System:

Oil-based

Number Of Axes:

Power Requirement:

AC 380V, 50Hz

Max. Tool Diameter:

100mm

Z-Axis Travel:

500mm

Highlight:

Vertical Five Sided Machining Center

Horizontal Five Sided Machining Center

High Precision Five Sided Machining Center

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

The wooden case，Tin trunk ,Other seaworthy packing

Delivery Time

45-60 days

Payment Terms

T/T,L/C,,Western Union

Supply Ability

45-60 days

HV5F-500 Five Sided Machining Center With 8000 12000RPM Spindle Speed BT40 BT50 Taper

Chat Now

Video

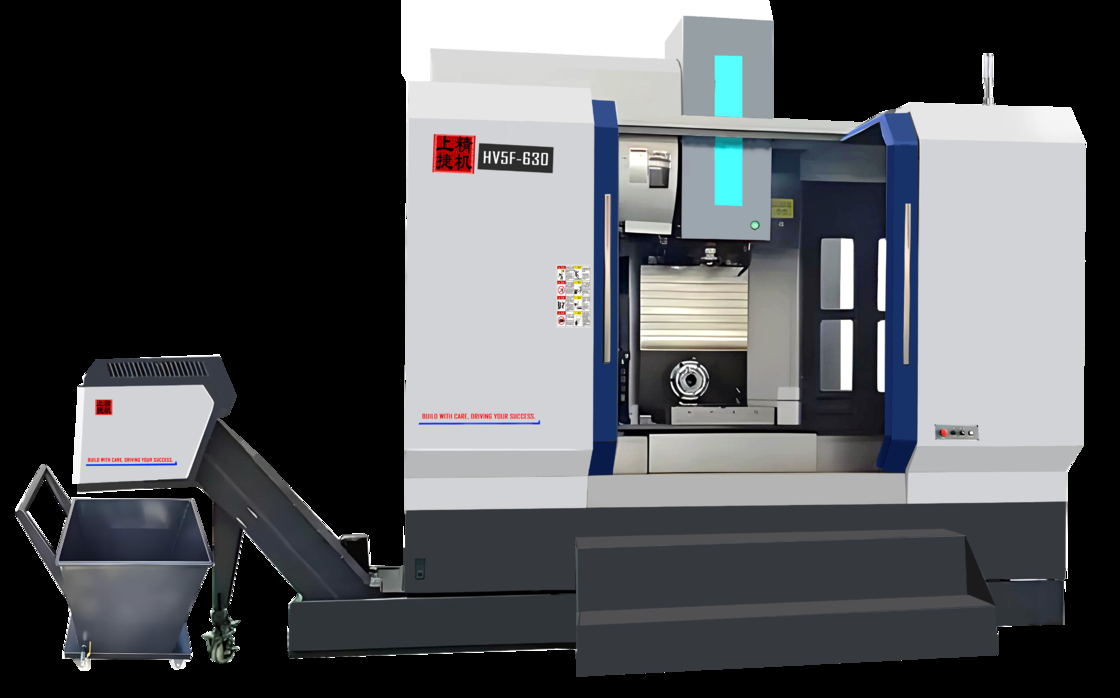

HV5F-630 Five Sided Machining Center With 6000 8000RPM Spindle BT50 Taper Hole

Chat Now

Video

HV5F-800 Five Sided Machining Center With 6000rpm Spindle BT50 Taper 24 Tool Magazine

Chat Now

Video

HV5F-1000 Five Sided Machining Center With 1000 X 1000mm Workbench 1600mm X Axis Travel

Chat Now

86--15221502418

bear02@shanjmc.com

Chat Now

Product Description

HV5F Series Vertical and Horizontal Dual-Purpose Five-Sided Machining Center with Disc-Type 24Tools Tool Magazine for High-Precision Multi-Angle Operations

ShangJie PM's vertical and horizontal dual-purpose five-sided machining centers combine vertical and horizontal milling functionality in one machine, enabling full-surface machining with a single setup. Designed for high-precision, multi-angle operations, this CNC equipment is ideal for complex workpieces such as molds, bases, and structural components. The five-sided cutting capability improves efficiency, reduces clamping times, and ensures tight tolerance across multiple faces.

Dual-axis design enables full five-sided machining in one cycle
Eliminates multiple repositionings to reduce human error
Ideal for large complex molds, frames, and structural parts

Machine Structure

HV5F series machine tools adopt a fixed gantry column integral bed structure, featuring a large-span H-shaped gantry column and front-hung box layout. Coupled with a wide and heavy four-roller linear guide layout base, the machine tools have strong rigidity and good precision retention. The entire machine tool is professionally designed with a focus on low center of gravity, anti-twist, and suitability for heavy cutting.

Finite element analysis (FEM) optimizes the shape and position of reinforcing ribs in the castings, achieving optimal bed strength. The base and Y-axis column have been specially reinforced for heavy cutting applications and increased tool life.

Specifications

Horizontal Machining Section
Machine Type	HV5F-1000
Workbench size	1000x1000 mm
Workbench T-slot (number - size * pitch)	7-22x130 mm
Max. load capacity of the workbench	2100KG
X-axis travel distance	1600mm
Y-axis travel distance	1000mm
Z-axis travel distance	1000mm
Distance from centerline of main shaft to worktable surface	-50-950mm
Distance from spindle face to center of worktable	-60-940 mm
Vertical Machining Section
Z-axis travel distance	1000mm
Distance from centerline of main shaft to worktable surface	150-1150mm
Distance from spindle face to center of worktable	-230-770 mm
Guide rail form	Precision Grade P roller-type linear guide
X,Y,Z fast movement speed	24m/min
X axis Max. torque of motor	69N.m
Y axis Max. torque of motor	85.2N.m
Z axis Max. torque of motor	85.2N.m
Max. spindle speed	6000 rpm
Spindle taper hole	BT50
Spindle motor power	15/18 KW
Tool magazine capacity	Disc-Type 24Tools
Max. weight of cutting tools	15KG(BT50)
Air source pressure	0.5-0.8 MPa
Positioning accuracy	0.012mm
Repeatability positioning accuracy	0.008mm
Positioning accuracy of B-axis	10"
Repeatability positioning accuracy of B-axis	6"
Machine size (L x W x H)	53600x4300x3100mm
Standard weight	21000KG

Machine Tool Configuration

CNC system: FANUC, Siemens, SYNTEC, KND, Mitsubishi

Standard equipped with a lift-free turntable, continuous positioning and indexing can reach 0.001°. The entire series adopts a slider direct connection structure, featuring high rigidity and high precision.

Standard equipped with chain-type chip conveyor and small iron chip cart.

Company Advantages

Our company has passed quality system certification with independent design and R&D capabilities. We operate large gantry machining centers, five-axis machining centers, vertical machining centers and other large-scale processing equipment. Our dedicated after-sales service team provides convenient and efficient support.

Product Advantages

Our machine tools use HT300 high-grade castings with ergonomic design. We select imported functional components ensuring long-term dimensional stability without deformation. With independent design and R&D capabilities, we complete all processes from casting to sheet metal fabrication in-house for quality control.

Application Scenarios

Ideal for mechanical processing fields including automotive manufacturing, aerospace, and shipbuilding.
