HT300 Heavy-Duty Casting CNC530 CNC Drilling Milling Machine 35mm P-Level Precision Linear Guides

HT300 Heavy-Duty Casting CNC530 CNC Drilling Milling Machine 35mm P-Level Precision Linear Guides

HT300 Heavy-Duty Casting

15m/min Rapid Traverse

0.01mm Accuracy

Place of Origin:

Hubei, China

Brand Name:

ShangJie PM

Model Number:

CNC530

Chat Now
Request A Quote
HT300 Heavy-Duty Casting CNC530 CNC Drilling Milling Machine 35mm P-Level Precision Linear Guides
HT300 Heavy-Duty Casting CNC530 CNC Drilling Milling Machine 35mm P-Level Precision Linear Guides HT300 Heavy-Duty Casting CNC530 CNC Drilling Milling Machine 35mm P-Level Precision Linear Guides HT300 Heavy-Duty Casting CNC530 CNC Drilling Milling Machine 35mm P-Level Precision Linear Guides HT300 Heavy-Duty Casting CNC530 CNC Drilling Milling Machine 35mm P-Level Precision Linear Guides HT300 Heavy-Duty Casting CNC530 CNC Drilling Milling Machine 35mm P-Level Precision Linear Guides
Product Details
Features:
Vibration Damping, Long-Term Accuracy
X-Axis Travel:
500mm
Spindle Speed:
8000 RPM
Table Size:
1000x500 Mm
Tool Capacity:
24
Weight:
3500 Kg
Y-Axis Travel:
500 Mm
Max Load Capacity:
500 Kg
Number Of Axes:
3
Z-Axis Travel:
500 Mm
Power Requirement:
380V, 50Hz, 3 Phase
Accuracy:
0.01 Mm
Rapid Traverse Rate:
15 M/min
Control System:
CNC
Type:
Vertical
Machine Type:
CNC530 Drilling Milling Machine
Bed Material:
HT300 High-Strength Cast Iron
Workbench Size:
900x280mm
Max Table Load:
150Kg
Guide Rail:
35mm P-Level Linear Guides
Ball Screws:
40mm C-Level Ground
X-Axis Structure:
Reinforced 6-Slide
Highlight:

HT300 Heavy-Duty Casting

,

15m/min Rapid Traverse

,

0.01mm Accuracy

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time
45-60 days
Payment Terms
T/T,L/C,Western Union
Supply Ability
45-60 days
RELATED PRODUCTS
Good price HT300 Heavy-Duty Casting CNC530 CNC Drilling Milling Machine 35mm P-Level Precision Linear Guides online video

HT300 Heavy-Duty Casting CNC530 CNC Drilling Milling Machine 35mm P-Level Precision Linear Guides

Chat Now
Good price High Rigidity Small 3-Axis CNC Drilling Milling Tapping Center Powerful Milling Capacity online

High Rigidity Small 3-Axis CNC Drilling Milling Tapping Center Powerful Milling Capacity

Chat Now
Good price Precision Automatic CNC Gantry Drilling Machine BT40 Spindle Large Metal Plate Drilling Tapping online

Precision Automatic CNC Gantry Drilling Machine BT40 Spindle Large Metal Plate Drilling Tapping

Chat Now
Good price MT-1250 Vertical Drilling Milling Center High Performance CNC Machine Precision Automatic online

MT-1250 Vertical Drilling Milling Center High Performance CNC Machine Precision Automatic

Chat Now
Contact Us
86--15221502418
bear02@shanjmc.com
Chat Now
Product Description

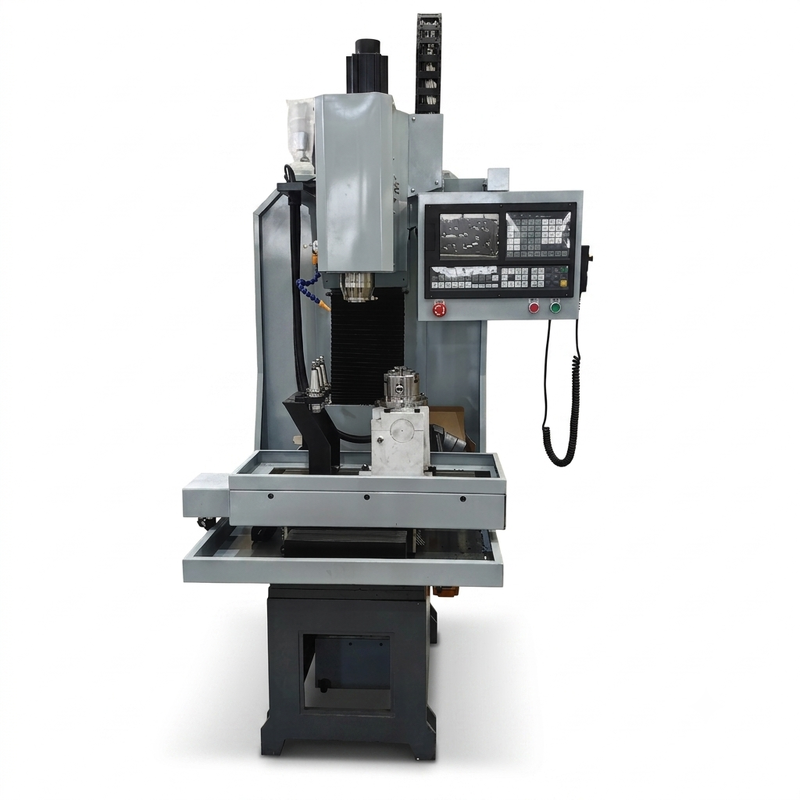

CNC530 Drilling & Milling Machine

  • High-Precision CNC Drilling & Milling
  • Workbench Size: 900×280mm
  • X-Axis Travel: 500mm
  • Y-Axis Travel: 300mm
  • Z-Axis Travel: 500mm
  • Max. Spindle Speed: 8000 RPM
  • Spindle Motor Power: 3.7/5.5KW
  • Spindle Taper: BT30 / BT40

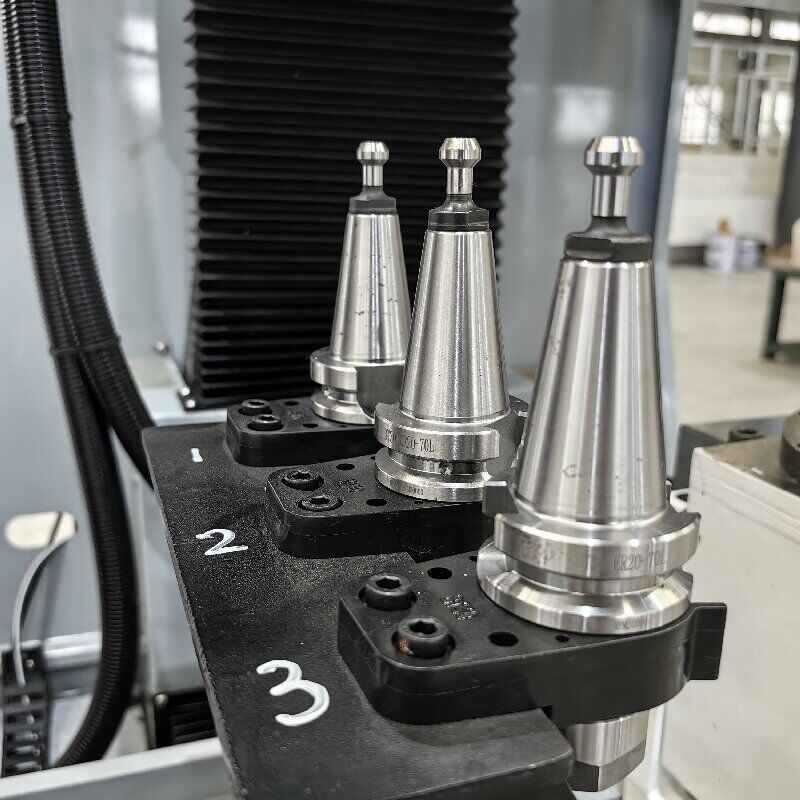

  • Optional 12-Tool Umbrella-Type Tool Magazine
  • Max. Workbench Load: 150KG

HT300 Heavy-Duty Casting CNC530 CNC Drilling Milling Machine 35mm P-Level Precision Linear GuidesHT300 Heavy-Duty Casting CNC530 CNC Drilling Milling Machine 35mm P-Level Precision Linear GuidesHT300 Heavy-Duty Casting CNC530 CNC Drilling Milling Machine 35mm P-Level Precision Linear GuidesHT300 Heavy-Duty Casting CNC530 CNC Drilling Milling Machine 35mm P-Level Precision Linear GuidesHT300 Heavy-Duty Casting CNC530 CNC Drilling Milling Machine 35mm P-Level Precision Linear GuidesHT300 Heavy-Duty Casting CNC530 CNC Drilling Milling Machine 35mm P-Level Precision Linear GuidesHT300 Heavy-Duty Casting CNC530 CNC Drilling Milling Machine 35mm P-Level Precision Linear GuidesHT300 Heavy-Duty Casting CNC530 CNC Drilling Milling Machine 35mm P-Level Precision Linear Guides
