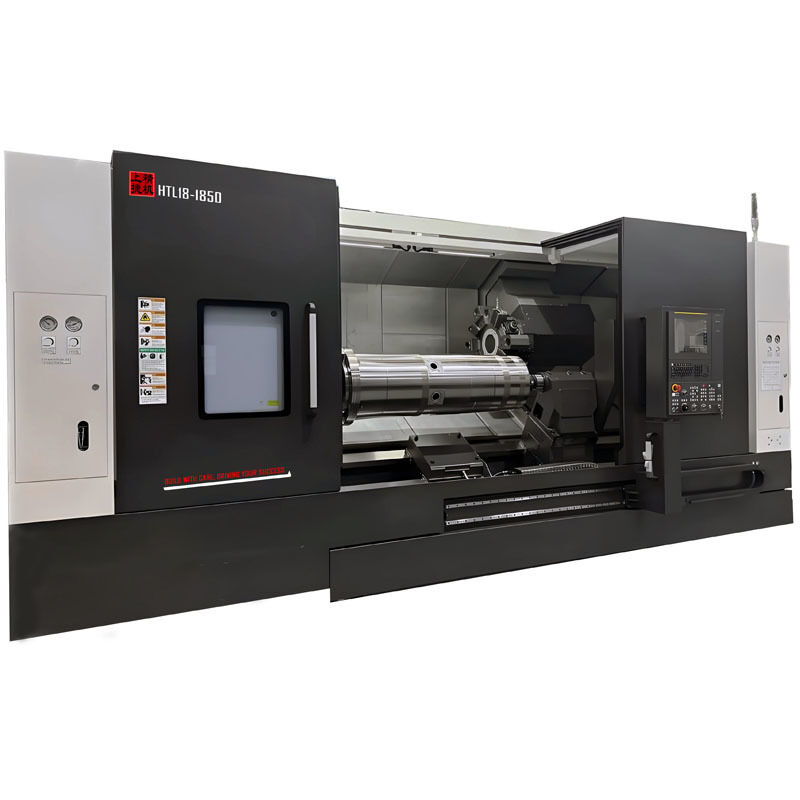

HTL18D Heavy Duty High Precision Single Spindle CNC Turning Center Servo Power Turret 380V Fanuc GSK Control Tailstock

HTL18D Heavy Duty High Precision Single Spindle CNC Turning Center Servo Power Turret 380V Fanuc GSK Control Tailstock

FANUC/GSK Dual Control Options

Servo Power Turret 12 Stations

1550mm Workpiece Length Capacity

Place of Origin:

Hubei, China

Certification:

CE, ISO

Model Number:

HTL18D

Chat Now
Request A Quote
HTL18D Heavy Duty High Precision Single Spindle CNC Turning Center Servo Power Turret 380V Fanuc GSK Control Tailstock HTL18D Heavy Duty High Precision Single Spindle CNC Turning Center Servo Power Turret 380V Fanuc GSK Control Tailstock HTL18D Heavy Duty High Precision Single Spindle CNC Turning Center Servo Power Turret 380V Fanuc GSK Control Tailstock HTL18D Heavy Duty High Precision Single Spindle CNC Turning Center Servo Power Turret 380V Fanuc GSK Control Tailstock HTL18D Heavy Duty High Precision Single Spindle CNC Turning Center Servo Power Turret 380V Fanuc GSK Control Tailstock HTL18D Heavy Duty High Precision Single Spindle CNC Turning Center Servo Power Turret 380V Fanuc GSK Control Tailstock
Product Details
Features:
High Rigidity, Multi-Axis Control
Type:
TURNING CENTER
Max. Length Of Workpiece (mm):
1550
Machining Capacity:
Heavy Duty
Max. Weight Of Workpiece(kg):
500
Width Of Bed (mm):
1470
No. Of Spindles:
Single
Number Of Axes:
4
Travel (x Axis)(mm):
330
Travel (z Axis)(mm):
1690
Positioning Accuracy (mm):
±0.01
Repeatability (x/y/z) (mm):
±0.005
Dimension(l*w*h):
375*147*185
Voltage:
380 V
Cnc Control System:
KND
Tool Post Stations:
12
Weight:
7500
Warranty:
1 Year
Key Selling Points:
Multifunctional, Automatic, High-Accuracy, High Rigidity, Long Service Life, Easy To Operate, High Productivity
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Range Of Spindle Speed:
0 - 6000
Cutting Torque:
55.8
Machine Type:
HTL18D Turning Center
Control System:
FANUC/GSK
Spindle Motor Power:
15KW

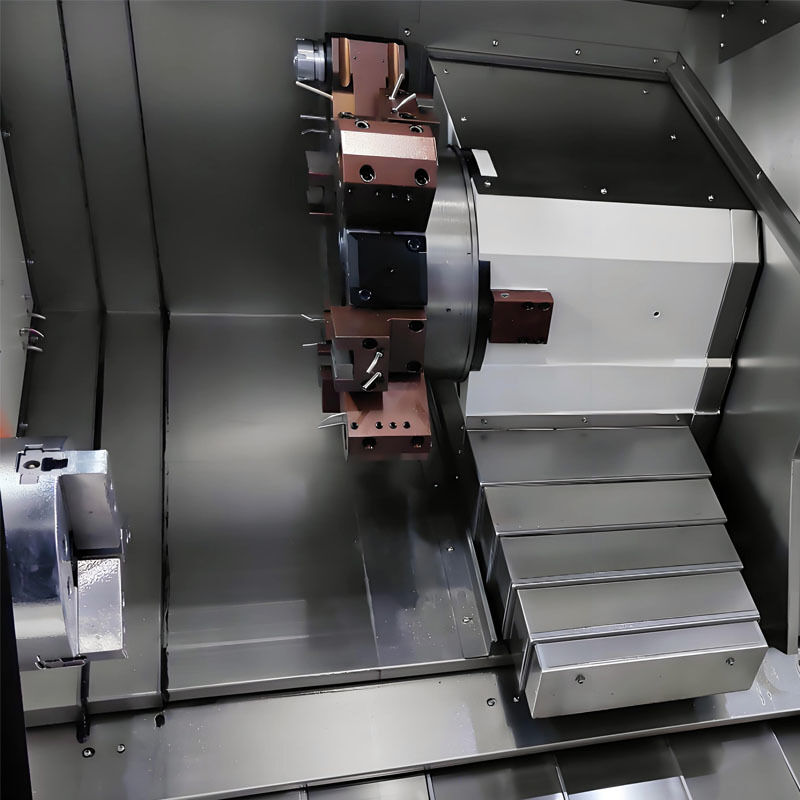

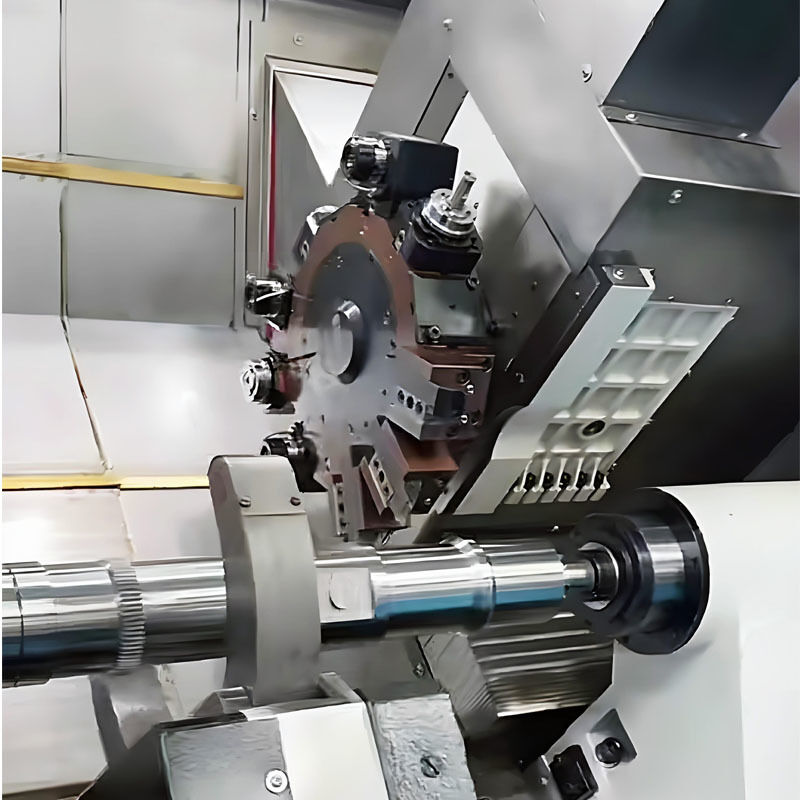

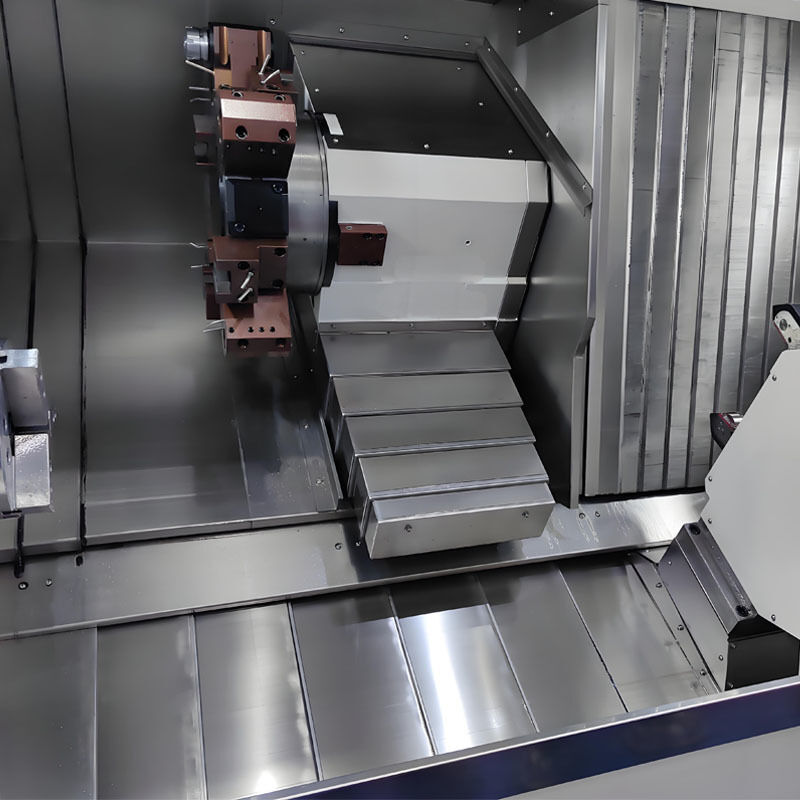

Tool Turret:
Servo Power Turret

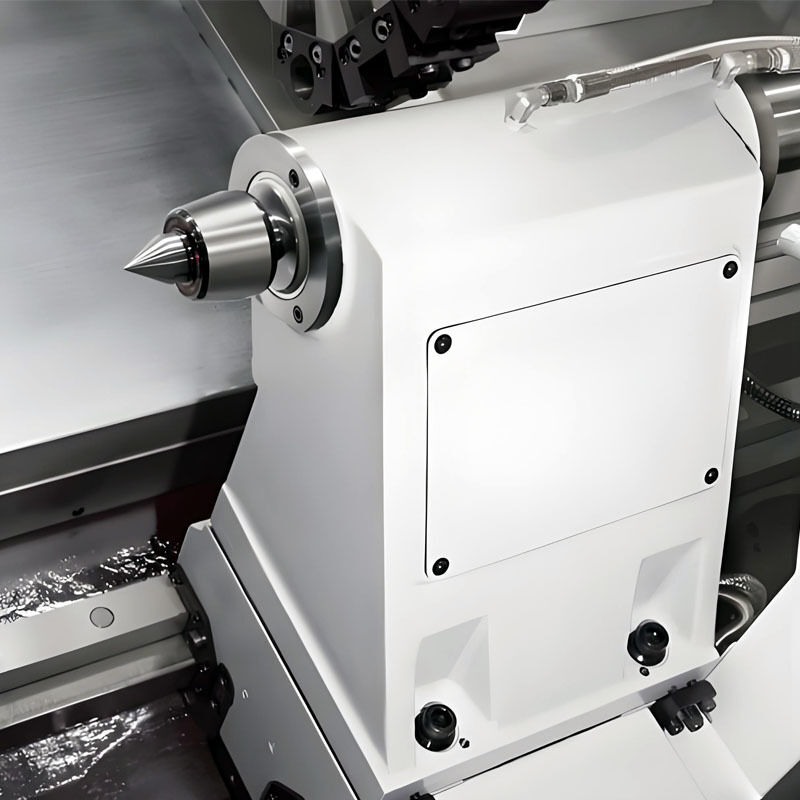

Tailstock:
With Tailstock
Voltage:
380V
Highlight:

FANUC/GSK Dual Control Options

,

Servo Power Turret 12 Stations

,

1550mm Workpiece Length Capacity

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$55,000
RELATED PRODUCTS
Good price HT06-350 550 750 Heavy Duty CNC Turning Center 50-3000r/Min Spindle Speed Range online video

HT06-350 550 750 Heavy Duty CNC Turning Center 50-3000r/Min Spindle Speed Range

Chat Now
Good price Heavy Duty CNC Turning Center Large Discs Shafts 510mm Z Axis Travel Heavy Cutting Capability online

Heavy Duty CNC Turning Center Large Discs Shafts 510mm Z Axis Travel Heavy Cutting Capability

Chat Now
Good price 72mm Spindle Bore High Precision CNC Turning Center 4000r/Min Spindle Speed online

72mm Spindle Bore High Precision CNC Turning Center 4000r/Min Spindle Speed

Chat Now
Good price Y Axis CNC Turning Milling Center 12 16 Servo Tool Turret 1000mm Z Axis Travel online

Y Axis CNC Turning Milling Center 12 16 Servo Tool Turret 1000mm Z Axis Travel

Chat Now
Contact Us
86--15221502418
bear02@shanjmc.com
Chat Now
Product Description
Product descriptions from the supplier

Heavy Duty Design: Built for high precision and long service life.

High Rigidity: Ensures accurate machining even under heavy loads.

15 kW Spindle Power: Delivers robust cutting performance.

Wide Cutting Torque Range: Supports versatile material handling.

Multiple Axes Control: Provides precise multi-axis machining capabilities.

HTL18D Heavy Duty High Precision Single Spindle CNC Turning Center Servo Power Turret 380V Fanuc GSK Control Tailstock
HTL18D Heavy Duty High Precision Single Spindle CNC Turning Center Servo Power Turret 380V Fanuc GSK Control Tailstock
HTL18D Heavy Duty High Precision Single Spindle CNC Turning Center Servo Power Turret 380V Fanuc GSK Control Tailstock
About this supplier

Hubei Shangjie Precision Machinery Manufacturing Co., Ltd. is a leading manufacturer of precision machinery, established in 2007 with a 20,000m2 workshop. Specializing in CNC turning centers and machining centers, the company offers full industrial manufacturing capabilities, including design, casting, machining, and quality control. ISO 9001 certified, it employs advanced equipment like laser interferometers and HT300 castings, ensuring high precision and stability.

Company overview
HTL18D Heavy Duty High Precision Single Spindle CNC Turning Center Servo Power Turret 380V Fanuc GSK Control Tailstock
Factory profile
HTL18D Heavy Duty High Precision Single Spindle CNC Turning Center Servo Power Turret 380V Fanuc GSK Control Tailstock
exhibition event
HTL18D Heavy Duty High Precision Single Spindle CNC Turning Center Servo Power Turret 380V Fanuc GSK Control Tailstock
certificate
HTL18D Heavy Duty High Precision Single Spindle CNC Turning Center Servo Power Turret 380V Fanuc GSK Control Tailstock
Customization capabilities
HTL18D Heavy Duty High Precision Single Spindle CNC Turning Center Servo Power Turret 380V Fanuc GSK Control Tailstock
Packaging & shipping specifications
HTL18D Heavy Duty High Precision Single Spindle CNC Turning Center Servo Power Turret 380V Fanuc GSK Control Tailstock
FAQ
HTL18D Heavy Duty High Precision Single Spindle CNC Turning Center Servo Power Turret 380V Fanuc GSK Control Tailstock
