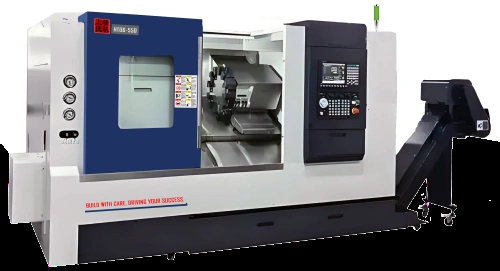

Name: 300mm Turning Diameter 500mm Turning Length CNC Turning Center Machining Equipment
Brand: Hubei Shangjie Precision Machinery Manufacturing Co., Ltd.
SKU: HT05DSZY-300/500/700
Price: Negotiable USD
Availability: InStock

Home > Products > CNC Turning Center >

300mm Turning Diameter 500mm Turning Length CNC Turning Center Machining Equipment

300mm Turning Diameter

500mm Turning Length

CNC Machining Center

Place of Origin:

Hubei, China

Brand Name:

ShangJie PM

Certification:

CE, ISO

Model Number:

HT05DSZY-300/500/700

Chat Now

Request A Quote

Product Details

Features:

Y-Axis Precision, High Rigidity

Voltage:

380V

Max Turning Diameter:

300mm

Machinery Test Report:

Provided

Condition:

New

Max Turning Length:

500mm

After Warranty Service:

Video Technical Support, Online Support

Weight:

2000kg

Spindle Nose:

A2-5

X Travel:

500mm

Automatic Grade:

Automatic

Chuck:

250MM

Spindle Power:

7.5/11KW

Spindle Bore Dia:

Φ104mm

Machining Capacity:

Heavy Duty

Z Travel:

500mm

Machine Type:

HT05DSZY Turning Center

Spindle:

Dual Spindles

Tool Turret:

Y-Axis Tool Turret

Application:

Flanges, Shafts, Connectors

Highlight:

300mm Turning Diameter

500mm Turning Length

CNC Machining Center

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

The wooden case，Tin trunk ,Other seaworthy packing

Delivery Time

45-60 days

Payment Terms

T/T,L/C,Western Union

Supply Ability

45-60 days

730mm Max Swing Diameter CNC Turning Center 1050-2050mm Max Machining Length Precision Large Scale

Chat Now

HTL18Y Series CNC Turning Center Servo Power Tool Turret Y Axis Interpolation Precision Spindle Control

Chat Now

HTL18ZY CNC Turning Center 730mm Max Swing Diameter 520mm Max Machining Diameter 1050-2050mm Length

Chat Now

830mm Max Swing Diameter CNC Turning Center 40mm Spindle Unit Precision Large Scale Machine

Chat Now

86--15221502418

bear02@shanjmc.com

Chat Now

Product Description

Configuration & Structure: Y-axis turning center featuring dual spindles, a tailstock-free setup, and a 12-station servo tool turret.
Y & Z Axis Motion: Features a ±55 mm Y-axis travel and variable Z-axis travel options of 380 mm or 580 mm with 25 m/min rapid feed speed.
Machining Capacity: Accommodates a max swing diameter of 600 mm, max machining diameter of 320 mm, and machining lengths of 300 mm, 500 mm, or 700 mm.
Spindle Specs & Workholding: Powered by a 5.5/7.5 kW main spindle (6000 r/min max, A2-5 nose), an A2-4 sub-spindle, and a 6" hydraulic clamping chuck
