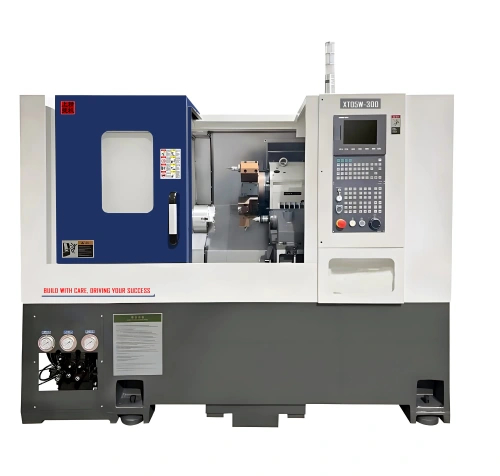

High Precision CNC Turning Center 12 Station Turret 6000rpm Spindle Speed

High Precision CNC Turning Center 12 Station Turret 6000rpm Spindle Speed

12-Station High-Speed Turret

6000rpm Spindle Speed

Multi-Purpose Metal Working

Place of Origin:

Hubei, China

Brand Name:

ShangJie PM

Certification:

CE, ISO

Model Number:

XT06ZY

Chat Now
Request A Quote
High Precision CNC Turning Center 12 Station Turret 6000rpm Spindle Speed
Product Details
Features:
Y-Axis Milling, Fast Indexing
Turret Type:
12-station/8-station/4-station
Automatic Grade:
Automatic
Machining Capacity:
Light Duty
Spindle Speed:
6000/8000/10000 Rpm
Spindle Nose:
A2-5
Spindle Motor Power:
11/15/18.5 KW
Application:
Multi Purpose Metal Working
Tailstock Quill Travel:
100/150/200 Mm
Key Selling Points:
High-accuracy
Spindle Bore Dia:
Φ56mm
Tool Holder Size:
20x20mm
Applicable Industries:
Manufacturing Plant
Max Turning Diameter:
300/400/500 Mm
Control System:
Fanuc/Mitsubishi
Rapid Traverse Rate:
15/20/25 M/min
Machine Type:
XT06ZY Turning Center
Tool Turret:
12-Station Y-Axis Turret
Spindle Speed:
6000rpm
Spindle Nose:
A2-5
Structure:
Slant Bed
Application:
Shafts, Valves, Fittings
Highlight:

12-Station High-Speed Turret

,

6000rpm Spindle Speed

,

Multi-Purpose Metal Working

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time
45-60 days
Payment Terms
T/T,L/C,Western Union
Supply Ability
45-60 days
RELATED PRODUCTS
Good price HT06-350 550 750 Heavy Duty CNC Turning Center 50-3000r/Min Spindle Speed Range online video

HT06-350 550 750 Heavy Duty CNC Turning Center 50-3000r/Min Spindle Speed Range

Chat Now
Good price Heavy Duty CNC Turning Center Large Discs Shafts 510mm Z Axis Travel Heavy Cutting Capability online

Heavy Duty CNC Turning Center Large Discs Shafts 510mm Z Axis Travel Heavy Cutting Capability

Chat Now
Good price 72mm Spindle Bore High Precision CNC Turning Center 4000r/Min Spindle Speed online

72mm Spindle Bore High Precision CNC Turning Center 4000r/Min Spindle Speed

Chat Now
Good price Y Axis CNC Turning Milling Center 12 16 Servo Tool Turret 1000mm Z Axis Travel online

Y Axis CNC Turning Milling Center 12 16 Servo Tool Turret 1000mm Z Axis Travel

Chat Now
Contact Us
86--15221502418
bear02@shanjmc.com
Chat Now
Product Description
XT06ZY High-Precision CNC Turning Center with 12-Station Turret 6000 rpm Spindle Speed and A2-5 Spindle Nose
ShangJie PM's XT Series offers high-rigidity CNC lathes with slant-bed and servo turret configurations, tailored for precision turning in demanding industrial environments. These machines support multi-tool operation with fast indexing, making them ideal for machining complex shafts, valves, and mechanical fittings.
The XT Series combines stable casting, advanced CNC control, and thermal distortion resistance, ensuring consistent accuracy during continuous operation. It is widely used in sectors such as aerospace components, industrial automation parts, and mechanical equipment.
  • Slant-bed structure with servo turret for high-efficiency turning
  • Rigid body and precise feed system for stable long-cycle operation
  • Built for complex, high-volume part production across industries
XT06ZY Model Details
XT/ZY Series — Y-axis tool turret, without tailstock. ZY series models use a motor-directly-driven gantry Y-axis tool turret, ensuring Y-axis positioning accuracy, milling rigidity, and long-term machine accuracy.
XT06ZY CNC Lathe front view XT06ZY CNC Lathe side view
Technical Specifications
Machine TypeXT06ZY
Max. swing diameter600mm
Max. machining diameter300mm
Max. machining Length-----
Spindle noseA2-6
Spindle motor power7.5/11 KW
Spindle bore72mm
Max. spindle speed6000r/min
Interpolation of ZY-axis travel±55mm
X axis260mm
Z axis380mm
X axis rapid feed speed25m/min
Z axis rapid feed speed25m/min
X axis Max. torque of motor34.5N.m
Z axis Max. torque of motor34.5N.m
Y axis Max. torque of motor34.5N.m
Hydraulic clampingYes
Chuck Size8"
Servo Tool Turret12
OD tool size25x25mm
Tailstock travel------
Machine size (L x W x H)1950x1470x1800mm
Standard weight3200KG
Expandable Functions
Fully enclosed stainless steel inner protective layout. The entire series employs a fully-enclosed stainless steel inner protective sheet metal design. Its scientific layout, precision engineering, and superior sealing ensure reliable waterproof and oil-resistant performance during operation.
Fully enclosed stainless steel protection system
Frequently Asked Questions
Q: Manufacturer or trading company? Where is the company located?
A: We are a professional manufacturer of CNC lathes, located in Shiyan City, Hubei Province.
Q: How long have you been involved in this market?
A: We have been engaged in the auto parts industry for 10 years.
Q: Can you provide a product catalog?
A: Contact our business manager, we will send the product catalog you need to your mailbox.
Q: About the terms and conditions of payment.
A: When you quote, we will confirm with you the trading method (FOB, CIF, CNF, etc.). For mass production we typically require 30% advance payment with balance due upon bill of lading. Payment methods are primarily T/T, though L/C is also acceptable.
Q: Product after-sales service scope and service period?
A: We offer a one-year warranty and 24-hour lifetime technical support.
