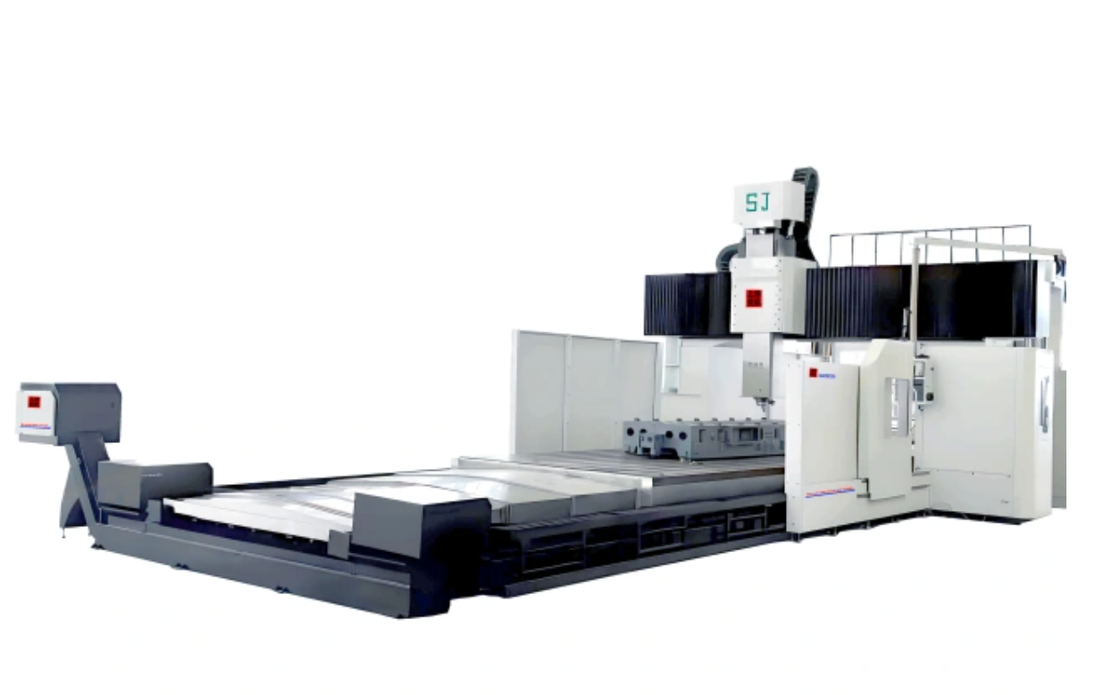

CNC Gantry Machining Center High Precision Gantry Milling Machine 12000rpm 3 Axis

CNC Gantry Machining Center

12000rpm Gantry Machining Center

3 Axis gantry type machining center

Place of Origin:

China

Certification:

CE ISO certification

Chat Now

Request A Quote

Product Details

Features:

Heavy Boring And Milling Machine

Worktable Area:

2200×1400mm

Spindle Speed:

12000 Rpm

Table Section:

Table Full Travel Support, 63 Rail-lines

Spindle Maximum Speed:

6000rpm

Number Of Axis:

Pindle Speed:

40rpm - 6000 Rpm

Weight:

8000 Kg

Color:

Custom-made

Table Size:

2000 X 1000 Mm

Power Requirement:

380V, 50Hz, 3-phase

Max Load Capacity:

3000 Kg

Tool Magazine:

24pcs

Worktable Maximum Load:

4000kg

Cnc Or Not:

CNC

Highlight:

CNC Gantry Machining Center

12000rpm Gantry Machining Center

3 Axis gantry type machining center

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

The wooden case，Tin trunk ,Other seaworthy packing

Delivery Time

45-60 days

Payment Terms

T/T,L/C,,Western Union

Supply Ability

45-60 days

GMC2018-GMC4028 CNC Gantry Machining Center High Precision Gantry Milling Machine

Chat Now

86--15221502418

bear02@shanjmc.com

Chat Now

Product Description

GMC series gantry machine tools, inheriting the characteristics of gantry machine tools such as strong rigidity, symmetrical structure and high stability, are equipped with oversized ball screws, roller linear guides, high-rigidity spindles, advanced numerical control systems and other components, which can meet the requirements of heavy cutting and precision processing of large workpieces and molds.

The GMC series gantry CNC machines are designed for heavy-duty cutting and precision processing of large workpieces and molds. With strong rigidity and advanced numerical control systems, they ensure high stability and efficiency for industrial applications.

Description

■ Machine Structure

GMC series of machine tools adopts a gantry structure, with enlarged column and crossbeam box structures for support, ensuring excellent rigidity of the entire machine. The castings of the machine tools are made of HT300 high-grade material, which is of high strength, strong resistance to deformation, and has excellent shock absorption capacity. Finite Element Analysis (FEM) is employed to optimize the shape and position of the reinforcing ribs of the castings, achieving the optimal strength of the machine bed. Additionally, special reinforcement structures are applied to the X-axis base and Y-axis crossbeam to make the machine bed more stable and prevent deformation.
The four-track design of the Z-axis ram not only provides sufficient rigidity but also overcomes the low-speed crawling phenomenon and the defect of precision loss over time of the traditional hard rail.
For X-axis travel over 4 meters, a standard lead screw support device is provided, effectively preventing the lead screw from sinking, enhancing its lifespan and maintaining the X-axis running accuracy.
Machines with an X-axis travel of over 6 meters are standardly equipped with a patented rotating nut device. This device can significantly enhance the machine tool's running accuracy, overcome the unstable running accuracy of the X-axis lead screw caused by the twisting of the long lead screw, and because the lead screw does not move, it can greatly increase its service life.

■ Specifications

Machine Model	GMC5028	GMC6028	GMC5032	GMC6032	GMC8032	GMC5038	GMC6038	GMC8038
X-axis travel distance	5000mm	6000mm	5000mm	6000mm	8000mm	5000mm	6000mm	8000mm
Y-axis travel distance	2800mm	2800mm	3200mm	3200mm	3200mm	3800mm	3800mm	3800mm
Z-axis travel distance	1000mm	1000mm	1000mm	1000mm	1000mm	1250mm	1250mm	1250mm
Gantry Effective Width	2800mm	2800mm	3200mm	3200mm	3200mm	3800mm	3800mm	3800mm
Distance from the spindleface to the worktable surface	250 -1050mm	250- 1050mm	250 -1250mm	250 -1250mm	250 -1250m	250 -1500m	250 -1500mm	250 -1500mm
Workbench size	2000 x5000mm	2000 x6000mm	2500 x5000mm	2500 x6000mm	2500 x8000mm	3000 x5000mm	3000 x6000mm	3000 x8000mm
Workbench T-slot(number - size x pitch)	9- 22x200mm	9- 22x200mm	12-28x200mm	12-28x200mm	12- 28x200mm	14-36x200mm	14-36x200mm	14- 36 x200mm
Max. load capacity of theworkbench	22T	25T	25T	28T	35T	28T	35T	40T
Guide rail form	Precision Grade P roller-type linear guide
X,Y,Z fast movement speed	10/20/15 m/min		10/15/10 m/min
X axis Max. torque of motor	105N.m	105N.m	105N.m	144N.m	144N.m	105N.m	144N.m	144N.m
Y axis Max. torque of motor	85.2N.m	85.2N.m	85.2N.m	85.2N.m	85.2N.m	85.2N.m	85.2N.m	85.2N.m
Z axis Max. torque of motor	105N.m	105N.m	105N.m	105N.m	105N.m	105N.m	105N.m	105N.m
Max. spindle speed	6000rpm
Spindle taper hole	BT50
Spindle motor power	22/26 KW
Tool magazine capacity	Optional configuration Disc-Type 24Tools
Max. weight of cutting tools	20 KG
KVATotal power capacity	50	50	50	50	50	65	65	65
Machine size (L x W x H) cm	1500 x530x500	1700 x530x500	1500 x580x560	1700 x580x560	2300 x580x560	1500 x620x680	1700 x620x680	2300 x620x680
Standard weight	45 T	50T	60 T	70T	85 T	78T	85T	105T

■ Machine Tool Configuration

CNC system: FANUC, Siemens,SYNTEC, KND,Mitsubishi

CNC Gantry Machining Center High Precision Gantry Milling Machine 12000rpm 3 Axis 5

High-quality spindle, imported bearings

CNC Gantry Machining Center High Precision Gantry Milling Machine 12000rpm 3 Axis 7

THK, PMI, HIWIN, HTPM 45,55 Precision Grade P roller-type linear guide

CNC Gantry Machining Center High Precision Gantry Milling Machine 12000rpm 3 Axis 8

THK, PMI, HIWIN C3 grade Ø50 precision ground ball screw

CNC Gantry Machining Center High Precision Gantry Milling Machine 12000rpm 3 Axis 9

High-quality tool clamping cylinder
CNC Gantry Machining Center High Precision Gantry Milling Machine 12000rpm 3 Axis 10

NSK, SKF, FAG P4 grade

imported angular contactpaired bearings

CNC Gantry Machining Center High Precision Gantry Milling Machine 12000rpm 3 Axis 11

Precision high-rigidity coupling

CNC Gantry Machining Center High Precision Gantry Milling Machine 12000rpm 3 Axis 12

Imported high-torque synchronous belts

CNC Gantry Machining Center High Precision Gantry Milling Machine 12000rpm 3 Axis 13

High-quality disc-type

/Umbrella-type ATC Tool magazine

CNC Gantry Machining Center High Precision Gantry Milling Machine 12000rpm 3 Axis 14

Standard equipped with chain

-typechip conveyor and small iron chip cart.

CNC Gantry Machining Center High Precision Gantry Milling Machine 12000rpm 3 Axis 16

Unmatched Precision and Efficiency
The GMC5028--GMC8038 series is engineered to redefine precision and efficiency in industrial machining. These gantry milling machines are equipped with oversized ball screws and roller linear guides, ensuring robust performance for heavy-duty cutting and precision processing. The CNC gantry structure, with its symmetrical design and high stability, supports large workpieces and molds, making it an ideal choice for industries demanding high precision. The advanced numerical control systems integrated into these machines enhance operational efficiency, ensuring that each cut is executed with unparalleled accuracy. Whether you're working with complex molds or large-scale components, the gantry mill capabilities of the GMC series deliver consistent, high-quality results.

Built for Durability and Performance
The GMC5028--GMC8038 models are crafted with a focus on durability and performance. The machine's structure is reinforced with HT300 high-grade material, known for its strength and resistance to deformation. This ensures that the gantry cnc machines maintain their integrity under the most demanding conditions. The four-track design of the Z-axis ram provides exceptional rigidity, overcoming traditional challenges such as low-speed crawling and precision loss over time. Additionally, the patented rotating nut device enhances the running accuracy of the X-axis, making these cnc gantry machining centers a reliable choice for long-term use. With a maximum spindle speed of 6000rpm and a spindle motor power of 22/26 KW, these machines are built to handle intensive workloads with ease.

Scalable Solutions for Growing Demands
Designed with scalability in mind, the GMC5028--GMC8038 series offers a range of configurations to meet evolving industrial needs. The machines feature a spacious workbench and a high load capacity, accommodating a variety of workpiece sizes and weights. The cnc gantry milling machine is equipped with a disc-type tool magazine, supporting up to 24 tools, which allows for seamless transitions between different machining tasks. This adaptability makes the GMC series a future-proof investment, capable of scaling with your business as demands increase. Whether you're expanding your production capabilities or diversifying your machining applications, the gantry cnc machines provide the flexibility and reliability needed to support your growth.

With the GMC5028--GMC8038, you're not just investing in a machine; you're investing in a solution that enhances productivity, ensures precision, and supports scalability. Experience the difference with a gantry milling machine that meets the highest standards of industrial excellence.

Product Advantages

1. Unmatched Precision and Efficiency
The GMC5028--GMC8038 series of gantry milling machines is engineered to deliver exceptional precision and efficiency. Equipped with oversized ball screws and roller linear guides, these machines ensure robust performance for heavy-duty cutting and precision processing. The CNC gantry structure supports large workpieces and molds, making it ideal for industries demanding high precision. Advanced numerical control systems enhance operational efficiency, ensuring each cut is executed with unparalleled accuracy.

2. Built for Durability and Performance
Crafted with HT300 high-grade material, the gantry cnc machines in the GMC5028--GMC8038 series are designed for durability and performance. The four-track design of the Z-axis ram provides exceptional rigidity, overcoming challenges like low-speed crawling and precision loss over time. The patented rotating nut device enhances X-axis accuracy, making these cnc gantry machining centers reliable for long-term use.

3. Scalable Solutions for Growing Demands
The GMC5028--GMC8038 series offers scalable solutions to meet evolving industrial needs. With a spacious workbench and high load capacity, these cnc gantry milling machines accommodate various workpiece sizes and weights. The disc-type tool magazine supports up to 24 tools, allowing seamless transitions between machining tasks, making it a future-proof investment for expanding production capabilities.

4. Enhanced Productivity and Precision
Investing in the GMC5028--GMC8038 means investing in a solution that enhances productivity and precision. The gantry mill capabilities ensure consistent, high-quality results, whether working with complex molds or large-scale components. The gantry cnc machines provide the flexibility and reliability needed to support your growth, ensuring your operations meet the highest standards of industrial excellence.

5. High Stability and Efficiency
The GMC5028--GMC8038 series ensures high stability and efficiency for industrial applications. The symmetrical design of the CNC gantry structure supports large workpieces, while advanced numerical control systems enhance operational efficiency. These gantry milling machines are built to handle intensive workloads with ease, making them an ideal choice for industries requiring robust and precise machining solutions.

About Us

At Hubei Shangjie Precision Machinery Manufacturing Co., Ltd., we are committed to delivering high-precision gantry milling machines that set the standard for industrial excellence. Our GMC5028--GMC8038 series is designed to meet the rigorous demands of heavy-duty cutting and precision processing, ensuring robust performance and high stability. With advanced numerical control systems, our machines execute each cut with unparalleled accuracy, making them ideal for industries that require precision in large workpieces and molds. We utilize HT300 high-grade material for our machine structures, providing exceptional strength and resistance to deformation. Our patented rotating nut device enhances the running accuracy of the X-axis, ensuring long-term reliability. With a maximum spindle speed of 6000rpm and a spindle motor power of 22/26 KW, our machines are built to handle intensive workloads with ease. We offer scalable solutions to meet evolving industrial needs, featuring spacious workbenches and high load capacities. Our disc-type tool magazine supports up to 24 tools, allowing seamless transitions between machining tasks. At GMC Gantry CNC, we are not just providing machines; we are offering solutions that enhance productivity, ensure precision, and support scalability. Experience the difference with our gantry milling machines, crafted to meet the highest standards of industrial excellence.

Contact Hubei Shangjie Precision Machinery Manufacturing Co., Ltd. today to upgrade your industrial machining with unmatched precision and efficiency. Let’s redefine your production capabilities!
