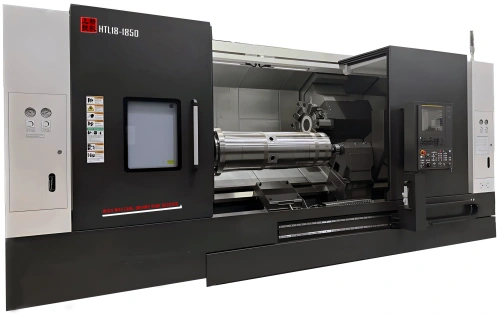

HTL18Y Series High-Precision Large-Scale CNC Turning Center with Servo Power Tool Turret and Y-axis Interpolation for Precision Spindle Control

HTL18Y Series High-Precision Large-Scale CNC Turning Center with Servo Power Tool Turret and Y-axis Interpolation for Precision Spindle Control
HTL18Y Series High-Precision Large-Scale CNC Turning Center with Servo Power Tool Turret and Y-axis Interpolation for Precision Spindle Control HTL18Y Series High-Precision Large-Scale CNC Turning Center with Servo Power Tool Turret and Y-axis Interpolation for Precision Spindle Control

Large Image :  HTL18Y Series High-Precision Large-Scale CNC Turning Center with Servo Power Tool Turret and Y-axis Interpolation for Precision Spindle Control

Product Details:
Place of Origin: China
Brand Name: ShangJie PM
Certification: CE ISO certification
Model Number: HTL18Y-1050/1250/1550/1850/2050
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time: 45-60 days
Payment Terms: T/T,L/C,,Western Union
Supply Ability: 45-60 days
Contact Now Chat Now

HTL18Y Series High-Precision Large-Scale CNC Turning Center with Servo Power Tool Turret and Y-axis Interpolation for Precision Spindle Control

Description
Highlight:

Servo Power Tool Turret CNC Turning Center

,

Y-axis Interpolation CNC Lathe

,

Precision Spindle Control Large-Scale CNC Lathe

HTL-Series High-Precision Large-Scale CNC Turning Center
The HTL Series from ShangJie PM is engineered for long-shaft and extended-part turning applications. Featuring a heavy-duty slant-bed design and powerful spindle system, these CNC lathes offer exceptional rigidity, precision, and smooth chip evacuation during high-speed, long-cycle operations.
Ideal for machining deep-hole parts, rollers, pipes, and extended rods, the HTL Series meets the needs of industries like oilfield equipment, automotive axles, and mechanical transmission. With programmable servo turret control and optional steady rests, it ensures both stability and accuracy in complex long-part production.
  • Extended-bed CNC lathe for long-shaft turning
  • Heavy-duty structure with precision spindle control
  • Reliable for deep-hole and long component machining
HTL18Y-1050/1250/1550/1850/2050 Specifications
Machine Type HTL18Y-1050 HTL18Y-1250 HTL18Y-1550 HTL18Y-1850 HTL18Y-2050
Max. swing diameter 730mm 730mm 730mm 730mm 730mm
Max. machining diameter 520mm 520mm 520mm 520mm 520mm
Max. machining Length 1050mm 1250mm 1550mm 1850mm 2050mm
Spindle nose A2-8 A2-8 A2-8 A2-8 A2-8
Spindle motor power 11/15 KW 11/15 KW 11/15 KW 11/15 KW 11/15 KW
Spindle bore 91mm 91mm 91mm 91mm 91mm
Max. spindle speed 6000r/min 6000r/min 6000r/min 6000r/min 6000r/min
Interpolation of Y-axis travel ±80mm ±80mm ±80mm ±80mm ±80mm
X axis 330mm 330mm 330mm 330mm 330mm
Z axis 1190mm 1390mm 1690mm 1990mm 2190mm
X axis rapid feed speed 30m/min 30m/min 30m/min 30m/min 30m/min
Z axis rapid feed speed 30m/min 30m/min 30m/min 30m/min 30m/min
X axis Max. torque of motor 45N.m 45N.m 45N.m 45N.m 45N.m
Z axis Max. torque of motor 55.8N.m 55.8N.m 55.8N.m 55.8N.m 55.8N.m
Y axis Max. torque of motor 45N.m 45N.m 45N.m 45N.m 45N.m
Chuck Size 10/12" 10/12" 10/12" 10/12" 10/12"
Servo Tool Turret 12/16 12/16 12/16 12/16 12/16
OD tool size 25x25mm 25x25mm 25x25mm 25x25mm 25x25mm
Boring tool diameter ￠50 mm ￠50 mm ￠50 mm ￠50 mm ￠50 mm
Tailstock travel MT-6# 500mm MT-6# 600mm MT-6# 600mm MT-6# 600mm MT-6# 600mm
Machine size (L x W x H) 3200x1470x1850mm 3400x1470x1850mm 3750x1470x1850mm 4150x1470x1850mm 4350x1470x1850mm
Standard weight 7500KG 7800KG 8100KG 8400KG 8700KG
Advanced Features
Interpolation of the Y-axis

Y-axis turning and milling compound function.

HTL18Y Series High-Precision Large-Scale CNC Turning Center with Servo Power Tool Turret and Y-axis Interpolation for Precision Spindle Control 0
Large-scale Servo Tool Turret

HTL series is equipped with a large servo tool turret for powerful cutting.

HTL18Y Series High-Precision Large-Scale CNC Turning Center with Servo Power Tool Turret and Y-axis Interpolation for Precision Spindle Control 1
Full protection sheet metal

The fully enclosed stainless steel inner protective sheet metal is rationally laid out and looks high-end and elegant.

HTL18Y Series High-Precision Large-Scale CNC Turning Center with Servo Power Tool Turret and Y-axis Interpolation for Precision Spindle Control 2
Main shaft type Programmable Tailstock

HTL series features spindle-type hydraulic programmable tailstock with high load capacity, precise positioning, excellent stability, and convenient operation, ideal for machining large workpieces.

HTL18Y Series High-Precision Large-Scale CNC Turning Center with Servo Power Tool Turret and Y-axis Interpolation for Precision Spindle Control 3
High-precision self-centering hydraulic center rest

Configurable high-precision self-centering hydraulic center rest, improving the stability of long shaft processing.

HTL18Y Series High-Precision Large-Scale CNC Turning Center with Servo Power Tool Turret and Y-axis Interpolation for Precision Spindle Control 4
Frequently Asked Questions
Q: Manufacturer or trading company? Where is the company located?
A: We are a professional manufacturer of CNC lathes, located in Shiyan City, Hubei Province.
Q: How long have you been involved in this market?
A: We have been engaged in the auto parts industry for 10 years.
Q: Can you provide a product catalog?
A: Contact our business manager, we will send the product catalog you need to your mailbox.
Q: About the terms and conditions of payment.
A: When you quote, we will confirm with you the trading method (FOB, CIF, CNF, etc.). For mass production we typically require 30% advance payment with balance due upon bill of lading. Payment methods are primarily T/T, though L/C is also acceptable.
Q: Product after-sales service scope and service period?
A: We offer a one-year warranty and 24-hour lifetime technical support.
